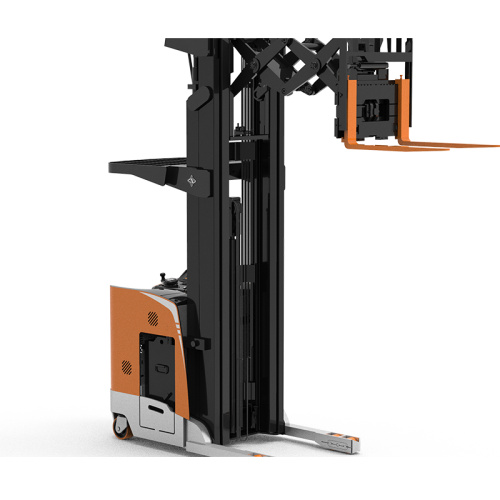

Double deep rack narrow aisle reach truck

RRE is one of VNA material handling trucks and is suitable for cold storage. Differs from walkie stackers or forklifts, the double deep reach truck is a narrow-aisle reach truck with deep reach forks to deposit or retrieve pallets that are set in the rack two deep. It combies the advantages of electric forklift, reach truck and pallet stackers. Deep-Reach forklift trucks save two out of five aisles versus single deep storage, allowing double-deep pallet storage in the racks to extend the storage space.

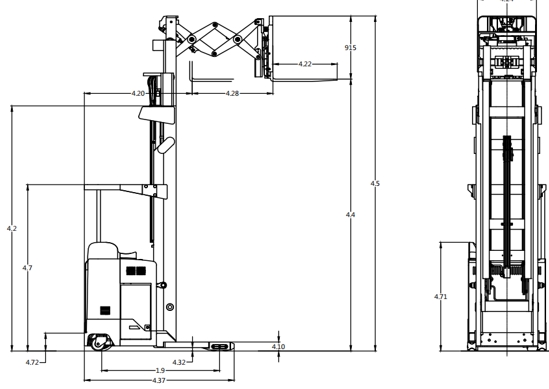

Technical Data

1.1	Manufacturer	Zowell
1.2	Model				RRE
1.3	Power				Electroc
1.4	Operator Type				stand
1.5	Load Capacity		Q	ib.(kg)	3200 lbs(1450 kg)
1.6	Load Centre		c	in.(mm)	23.6＂(600mm)
1.8	Load Distance	forks retracted	x	in.(mm)	12.6＂(287mm)
1.9	Wheel Base		y	in.(mm)	64.96＂(1650mm)

2.1	Truck Weight	less battery		ib.(kg)	8466 lbs(3840kg)
2.2	Axle loading(Front/Rear)	W/O Load,forks retracted		ib.(kg)	4336 lbs(1967kg)/6,069 lbs(2753kg)
		With Load,forks extension		ib.(kg)	8139 lbs(3692kg)/5463 lbs(2478kg)
		With Load,forks retracted		ib.(kg)	10716 lbs(4861kg)/2885 lbs(1309kg)

3.1	Tyre Type				poly
3.2	Tyres	power unit side,drive		in.(mm)	13.5＂×2.9＂(φ343mm×140mm)
3.3	Tyres	load side		in.(mm)	5.0＂×5.5＂(φ127mm×74mm)
3.4	Castor Wheel			in.(mm)	8.0＂×4.0＂(φ200mm×100mm)
3.5	Wheels	no.(x=driven) power unit side/load side			1x,2/4
3.7	Track Width	power unit side	b10	in.(mm)	31.5＂(800mm)

4.1	Fork Carriage Tilt	forward/backward	angle	°	3/4
4.2	Mast	collapsed height	h1	in.(mm)	140＂(3556mm)
4.3	Free Lift		h2	in.(mm)	104＂(2642mm)
4.4	Lift Height		h3	in.(mm)	321＂(8150mm)
4.5	Mast	extended height w.load backrest	h4	in.(mm)	357＂(9068mm)
4.7	Overhead Guard Height		h6	in.(mm)	95＂(2413mm)
4.1	Outtrigger Height	standard wheel	h8	in.(mm)	5.1＂(130mm)
4.2	Headlength		l2	in.(mm)	63.1＂(1604mm)
4.21	Overall Width	power unit side	b1	in.(mm)	42.9＂(1090mm)
4.22	Fork Dimension		th×w×l	in.(mm)	40/100/1070
4.23	Fork Carriage				2A
4.24	Fork Carriage Width	incl.load backrest	b3	in.(mm)	32.44＂(824mm)
4.25	Width Across Forks		b5	in.(mm)	12＂-30＂(305-762mm)
4.26	Inside Straddle	in 25mm increments	b4	in.(mm)	34＂-50＂(865-1270mm)
4.28	Reach		l4	in.(mm)	40.6＂(1032mm)
4.32	Ground Clearance	centre wheelbase		in.(mm)	1.97＂(50mm)
4.33	Working Aisle Width	1200×1000 deep	Ast	in.(mm)	119＂(3023mm)
4.33	Working Aisle Width	1000×1200 deep	Ast	in.(mm)	123.3＂(3132mm)
4.34	Working Aisle Width	800×1200 deep	Ast	in.(mm)	121.6＂(3088mm)
4.35	Turning Radius		Wa	in.(mm)	74.4＂(1890mm)
4.37	Overall Length	length over outriggers	l7	in.(mm)	82.4＂(2094mm)
4.71	Backrest Height			in.(mm)	62＂(1576mm)
4.72	Entry Step Height			in.(mm)	10.2＂(260mm)
4.73	3rd Post			in.(mm)	1＂(25mm）

5.1	Travel Speed	w./w.o. load power unit first		km/h	10/12 km/h
5.1	Travel Speed	forks first			10/12 km/h
5.2	Lift Speed	w./w.o. load		m/s	0.4/0.5 m/s
5.3	Lower Speed	w./w.o. load		m/s	0.5/0.5 m/s
5.4	Reach Speed			m/s	0.3
5.1	Brakes				Electroc

6.1	Traction Motor	60 min.rating		kw	6kw
6.2	Lift Motor	15% on time		kw	13kw
6.3	Max.Battery Box Size		l×h×w	mm	413×985×788
6.4	Battery Voltage	nominal capacity 5h rating		V/Ah	36 V/750Ah
6.5	Battery Weight	minimum		kg	1940 lbs(880kg)

8.1	Type of Controller	traction/lift/steering			AC
