Product Description

8 Ton electric towing truck

Zowell XTB series tow tugger provides strong power and fantastic performance in handling of heavy materials. It covers the flexibility of pallet truck and strong traction of tow tractor to make handling easier and more efficient. XTB80 Electric towing tractor head is a warehouse machine used for various materials transportation. It can move heavy and numerous materials efficiently with load carriers behind, and widely used in logistics, airport, textile industry, etc.

Technical Datra

XTB80 technical sheet
Identification	1	Product model designation		XTB80
	2	Drive unit		Electric
	3	Operate type		Pedestrian
	4	Load capacity	kg	8
	5	Rated pulling force	N	1500
	6	Wheelbase	Y （mm）	1714

Weight	1	Self weight	kg	1500

Tyres	1	Tyres		PU
	2	Drive wheel size	mm	Φ248×75
	3	Load wheel size	mm	Φ200×48
	4	Balance wheel size	mm	Φ150×45
	5	Wheels qty（Front/Rear）（x=Drive wheel）		1x-2/4
	6	Tread, front wheel	mm	434
	7	Tread,Rear wheel	mm	687
r
Basic Dimension	1	Height, mast lowered	h1mm	1530
	2	Lift height	h3mm	150
	3	Ground clearance of Towing head （Lowerest height）	h5mm	390
	4	Height of tiller in drive Position(max/min)	h6mm	1530/1330
	5	Overall length	L1mm	2086
	6	Overall width	b1mm	900
	7	Minimum ground clearance（unloaded）	M mm	56
	8	Turning radidus	Wa mm	1945

Performance	1	Travel speed loaded/unload	Km/h	2/2.5
	2	Lift speed loaded/unload	mm/s	28/40
	3	Lowering speed loaded/unload	mm/s	45/40
	4	Max grade ability loaded/unload	%	2.5/8
	5	Service brake		Electromagnetic brake

Motor	1	Drive motor rating	kW	3KW
	2	Lift motor rating	kW	3kw
	3	Battery voltage/capacity	V/Ah	24/360
	4	Battery weight	kg	一

Others	1	Control unit type		Mosfet control
Others	2	<70	dB(A)	<70

Product Display

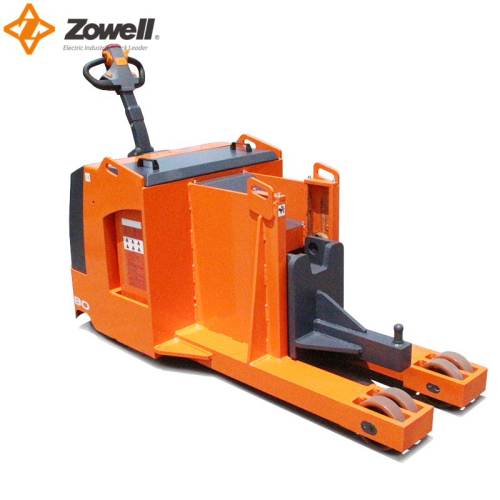

heavy duty towing truck
