8 Ton Electric Paper Roll Pallet Truck

$13000.00 - $17000.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO
HS Code:	8427109000
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

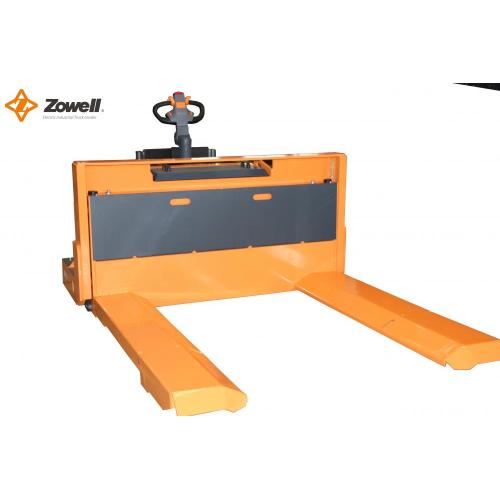

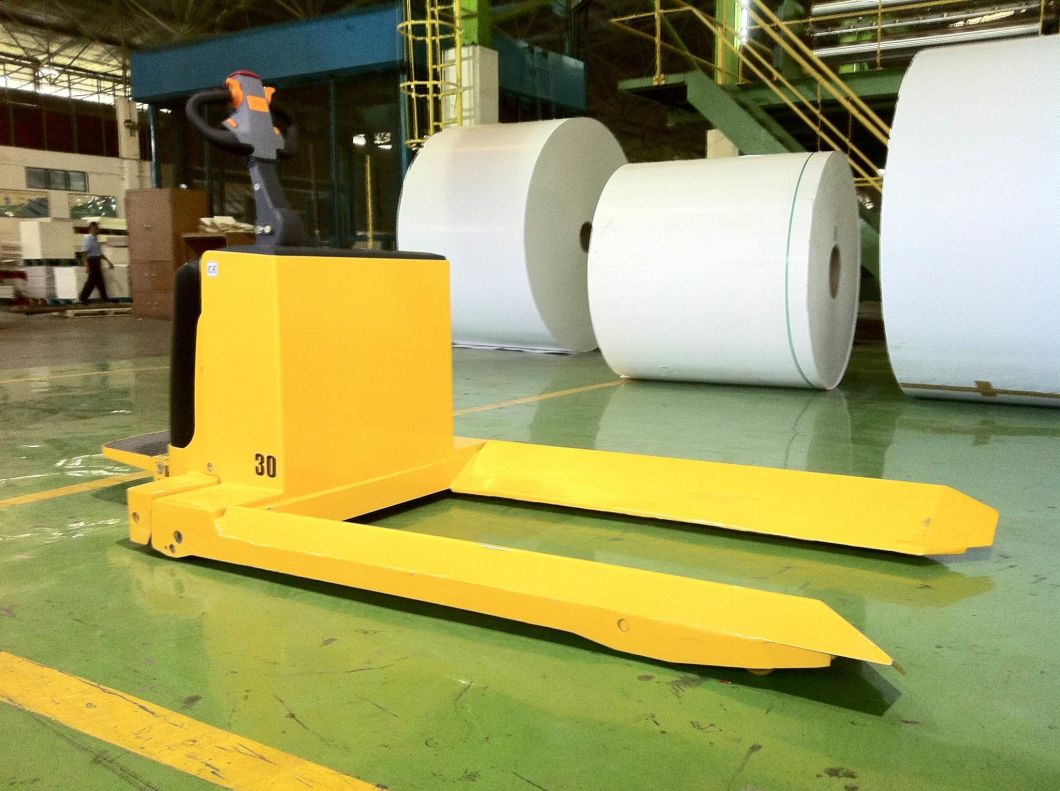

Zowell Electric Paper Roll Pallet Truck 8 Ton

Zowell roll pallet truck 17600lb is a material handling machine specialized in the transfer of heavy roll materials such as coil, cloth and paper with the help of special wide legs. The electric pallet truck can only be used for horizontal transportation for heavy roll materials instead of stacking function as counterbalanced forklift, reach forklift truck or electric stacker did. Zowell XP electric pallet jacks are equipped with AC drive motor and multi-functional handle, emergency switch, dual balance wheel as well as side loading battery for safety, efficiency and less fatigue in operation.

Detail Features
1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8.Five points structure brings the truck more stability

Technical Data

XPK80 Electric Paper Roll Pallet Truck
Specification	1	Model		XPK80
	2	Power supply		Electric
	3	Driving type		Standing on
	4	Rated load capacity	Q kg	8000
	5	load center	C mm	600
	6	Tread ,rear	X mm	242
	7	Wheel base	Y mm	1840

Weight	1	Self weight（without battery）	kg	As designed

Wheels	1	Tyres		PU
	2	Drive wheel size	mm	Φ248×75
	3	Load wheel size	mm	Φ160×50
	4	Balance wheel size	mm	Φ150×50
	5	Wheels qty（Front/Rear）（x=drive wheel）		1x-4/8
	6	Wheel distance=front	mm	687
	7	Wheel distance=rear	mm	1520

Basic data	1		h1mm	1465
	2	Lifing height	h3mm	290
	3	Fork height（lowerest height）	h5mm	170
	4	Handle height（Max/Min/)	h6mm	1405/1192
	5	Overall length（Platform folded）	L1mm	As designed
	6	Length to face of forks	L2mm	As designed
	7	Overall width	b1mm	As designed
	9	Fork width	b3 mm	As designed
	10	Min groundclearance（Unload）	M mm	30
	11	Aisle width lengthways Pallet 800*1200	Ast mm	-
	12	Turning radidus	Wa mm	2160

Perofrmance	1	Drive speed Loaded/unloaded	km/h	2/2.5
	2	Lifting speed Loaded/unloaded	mm/s	28/40
	3	Lowering speed Loaded/unloaded	mm/s	45/40
	4	Maximum gradeability Loaded/unloaded	%	2.5/8
	5	Brake		Electromagnetic brake

Motor	1	Driving motor power	kw	3
	2	Lifting motor power	kw	3
	3	Battery voltage and capacity	V/Ah	24/400
	4	Battery weight	kg	340

Others	1	Control unit type		Mosfet control
Others	2	Noise	dB(A)	<70
