Hot Sale Electric Paper Roll Pallet Truck
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- Shanghai, Ningbo, Lianyungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000PCS |
| Supply Ability: | 1000PCS |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CIP |
| Certificate: | CE/ISO |
| HS Code: | 8427109000 |
| Transportation: | Ocean,Land |
| Port: | Shanghai,Ningbo,Lianyungang |

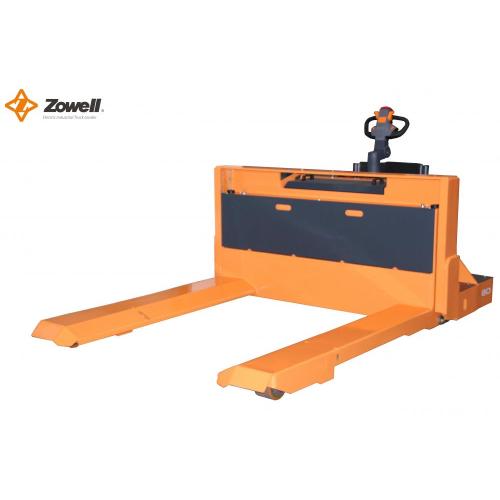

Zowell roll pallet truck 8 tons (about 17600lb) is a material handling equipment specialized in the transfer of heavier roll materials in pallet inside and outside the production line and warehouse by special legs. The pallet truck is only used for plane transportation for no lifting mast. Zowell XP electric pallet trucks are equipped with AC drive motor and multi-functional handle, emergency switch, dual balance wheel as well as side loading battery for safety, efficiency and less fatigue in operation. Buffered pedal also extends the flexibility for various scenarios.
Detail Features
1. SWISS BUCHER brand Hydraulic pump.2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8.Five points structure brings the truck more stability
Technical Data
| XPK80 Electric Paper Roll Pallet Truck | |||||
| Specification | 1 | Model | XPK80 | ||
| 2 | Power supply | Electric | |||
| 3 | Driving type | Standing on | |||
| 4 | Rated load capacity | Q kg | 8000 | ||
| 5 | load center | C mm | 600 | ||
| 6 | Tread ,rear | X mm | 242 | ||
| 7 | Wheel base | Y mm | 1840 | ||
| Weight | 1 | Self weight（without battery） | kg | As designed | |
| Wheels | 1 | Tyres | PU | ||
| 2 | Drive wheel size | mm | Φ248×75 | ||
| 3 | Load wheel size | mm | Φ160×50 | ||
| 4 | Balance wheel size | mm | Φ150×50 | ||
| 5 | Wheels qty（Front/Rear）（x=drive wheel） | 1x-4/8 | |||
| 6 | Wheel distance=front | mm | 687 | ||
| 7 | Wheel distance=rear | mm | 1520 | ||
| Basic data | 1 | h1mm | 1465 | ||
| 2 | Lifing height | h3mm | 290 | ||
| 3 | Fork height（lowerest height） | h5mm | 170 | ||
| 4 | Handle height（Max/Min/) | h6mm | 1405/1192 | ||
| 5 | Overall length（Platform folded） | L1mm | As designed | ||
| 6 | Length to face of forks | L2mm | As designed | ||
| 7 | Overall width | b1mm | As designed | ||
| 9 | Fork width | b3 mm | As designed | ||
| 10 | Min groundclearance（Unload） | M mm | 30 | ||
| 11 |
Aisle
width lengthways Pallet 800*1200 |
Ast mm | - | ||
| 12 | Turning radidus | Wa mm | 2160 | ||
| Perofrmance | 1 | Drive speed Loaded/unloaded | km/h | 2/2.5 | |
| 2 | Lifting speed Loaded/unloaded | mm/s | 28/40 | ||
| 3 | Lowering speed Loaded/unloaded | mm/s | 45/40 | ||
| 4 | Maximum gradeability Loaded/unloaded | % | 2.5/8 | ||
| 5 | Brake | Electromagnetic brake | |||
| Motor | 1 | Driving motor power | kw | 3 | |
| 2 | Lifting motor power | kw | 3 | ||
| 3 | Battery voltage and capacity | V/Ah | 24/400 | ||
| 4 | Battery weight | kg | 340 | ||
| Others | 1 | Control unit type | Mosfet control | ||
| 2 | Noise | dB(A) | <70 | ||

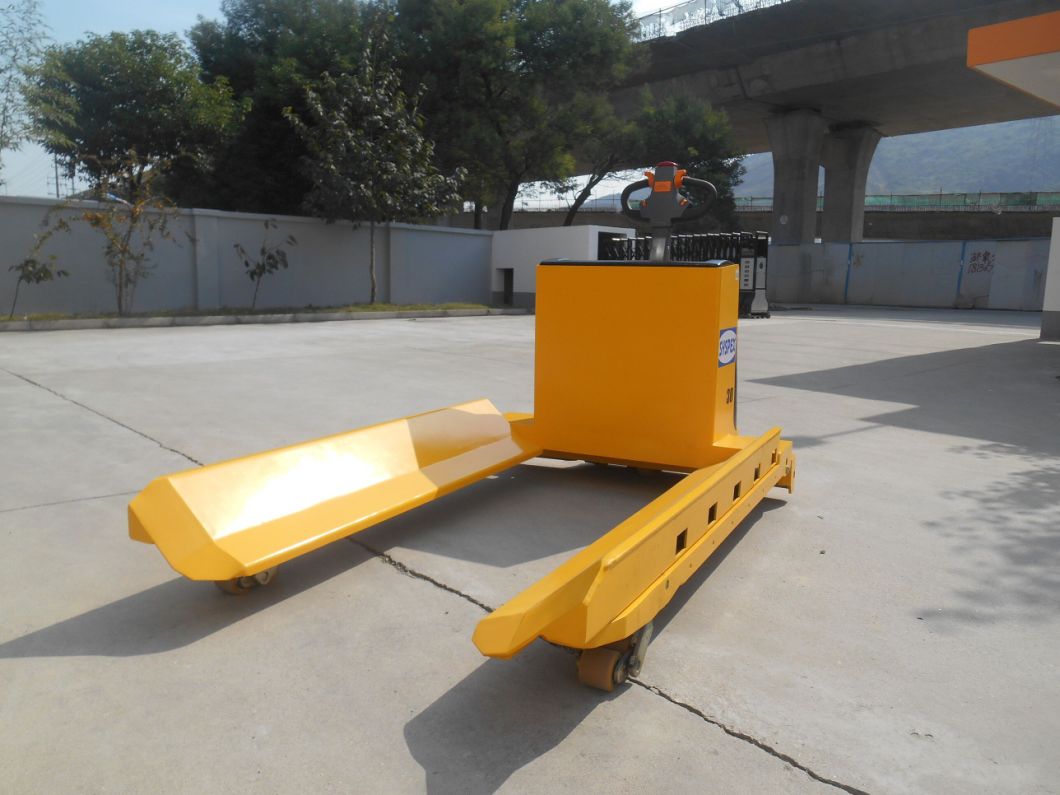

Product Display
