Zowell 6 ton electric pallet truck

$10400.00 - $12000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO 9001
HS Code:	8427109000
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

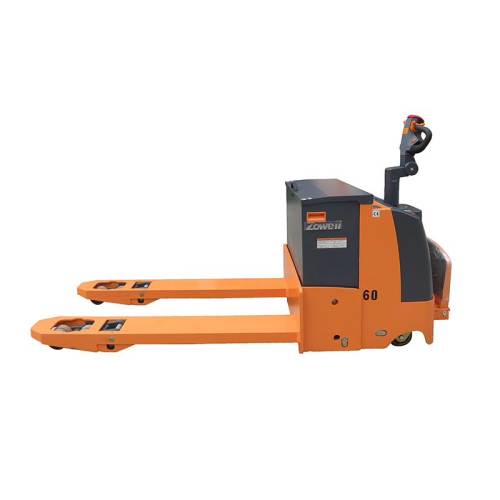

Zowell 6 ton electric pallet truck

Zowell 6 tons (about 13200lb) electric pallet jack is a material handling equipment mainly used in the transfer of materials in pallet inside and outside the production line and warehouse. Similar to electric towing tractor, the pallet truck is only used for plane transportation for no lifting mast.

Detail Features

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements.

2. Multi-function display: battery state, hour meter, fault code indicator, etc.

3. Stepless driving speed control.

4. AC Curtis driving controller.

5.Curtis EPS(Electric Power Steering) system provides more smooth steering and flexible controlling.

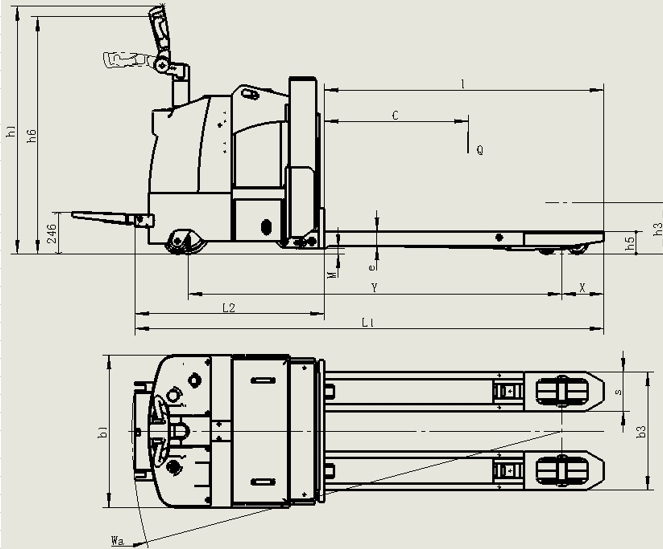

Technical Data

Identification	1	Product model designation		XP60
	2	Drive unit		Electric
	3	Operate type		Standing-on
	4	Load capacity	kg	6000
	5	Load center	mm	600
	6	Load distance, Center of drive axle to fork back	mm	230
	7	Wheelbase	mm	2110
Weight	1	Truck weight (without battery)	kg	1420
	2	Axle loading ,loaded(front/rear)	kg	4689/2731
	3	Axle loading ,unloading(front/rear)	kg	381/1039
Wheel	1	Tires		Polyurethane
	2	Drive wheels size	mm	Φ248×75
	3	Loaded wheels size	mm	Φ125×50
	4	Balance wheels size	mm	Φ150×48
	5	Wheels number, front/rear(x=driven wheels)		1x-4/8
	6	Tread ,front	mm	670
	7	Tread ,rear	mm	687
Dimensions	1	Height, mast lowered	mm	1345
	2	Lift height	mm	270
	3	Forks height, lowered	mm	150
	4	Height of tiller in drive Position(max/min)	mm	1426/1066
	5	Overall length	mm	2600
	6	Length to face of forks	mm	980
	7	Overall width	mm	1000
	8	Fork dimensions	mm	230/130/1700
	9	Maximum forks width	mm	900
	10	Minimum ground clearance	mm	31
	12	Aisle width for pallets 800x1200 lengthways	mm	2795
Performance	1	Turning radius	km/h	4/4.5
	2	Lift speed loaded/unload	mm/s	35/45
	3	Lowering speed loaded/unload	mm/s	50/45
	4	Max grade ability loaded/unload	%	3.8/10
	5	Service brake		Electromagnetic brake
Electric moto	1	Drive motor rating	kw	3
	2	Lift motor rating	kw	3kw
	3	Battery voltage/capacity	V/Ah	24/400
	4	Battery weight	kg	350
Others	1	Control unit type		Mosfet control
Others	2	Sound level	dB(A)	<70
