electric pallet truck capacity 5T

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	SHANGHAI

Product Description

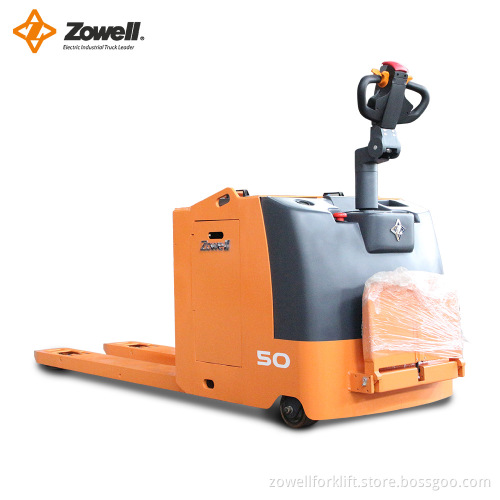

Zowell 4-8 Ton Electric Pallet Truck is one of a Customized Material Handling Equipment used to transport heavy duty materials with pallets. Zowell is able to desgin the the truck according to the length, width, weight and other information of goods as well as warehouse. For standard products, please take a look at our 2-2.5 Ton Electric Pallet Truck.

Main Features
1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. Electronic AC controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8.Five points structure brings the truck more stability

Identification	Product model designation		XP20	XP25	XP30
	Drive unit		Electric
	Operate type		Standing or Pedestrian
	Load capacity	Q kg	2000	2500	3000
	Load center	C mm	600	600	600
	Load distance, Center of drive axle to fork back	X mm	140	140	140
	Wheelbase	Y mm	1300	1300	1300

weight	Truck weight (without battery)	kg	475	485	500
	Axle loading , loaded(front/rear)	kg	1077/1696	1215/2003	1343/2235
	Axle loading , unloading(front/rear)	kg	441/128	451/130	456/132

Wheel	Tires		Polyurethane
	Drive wheels size	mm	230×75	230×75	230×75
	Loaded wheels size	mm	80×70	80×70	80×70
	Balance wheels size	mm	100×40	100×40	100×40
	Wheels number, front/rear(x=driven wheels)		1x-2/4	1x-2/4	1x-2/4
	Tread ,front	mm	525	525	525
	Tread ,rear	mm	390	390	390

Dimensions	Height, mast lowered	h1 mm	1345	1345	1345
	Lift height	h3 mm	205	205	205
	Forks height, lowered	h5 mm	85	85	85
	Height of tiller in drive Position(max/min)	h6 mm	1345/985	1345/985	1345/985
	Overall length	L1 mm	1882	1882	1882
	Length to face of forks	L2 mm	732	732	732
	Overall width	b1 mm	784	784	784
	Fork dimensions	s/e/l mm	180/55/1150	180/55/1150	180/55/1150
	Maximum forks width	b3 mm	570/680	570/680	570/680
	Minimum ground clearance	M mm	30	30	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2132	2132	2132
	Turning radius	Wa mm	1716	1716	1716

Performance	Travel speed loaded/unload	Km/h	5.2/6	4.8/5.6	4.8/5.6
	Lift speed loaded/unload	mm/s	40/50	40/50	40/50
	Lowering speed loaded/unload	mm/s	50/40	50/40	50/40
	Max grade ability loaded/unload	%	8/15	8/15	8/15
	Service brake		Electromagnetic brake

Electric motor	Drive motor rating	kW	1.2 (DC),1.5 (AC)
	Lift motor rating	kW	2.2	2.2	2.2
	Battery voltage/capacity	V/Ah	24/180	24/210	24/240
	Battery weight	kg	180	240	280

others	Control unit type		Mosfet control
	Sound level	Db(A)	<70
