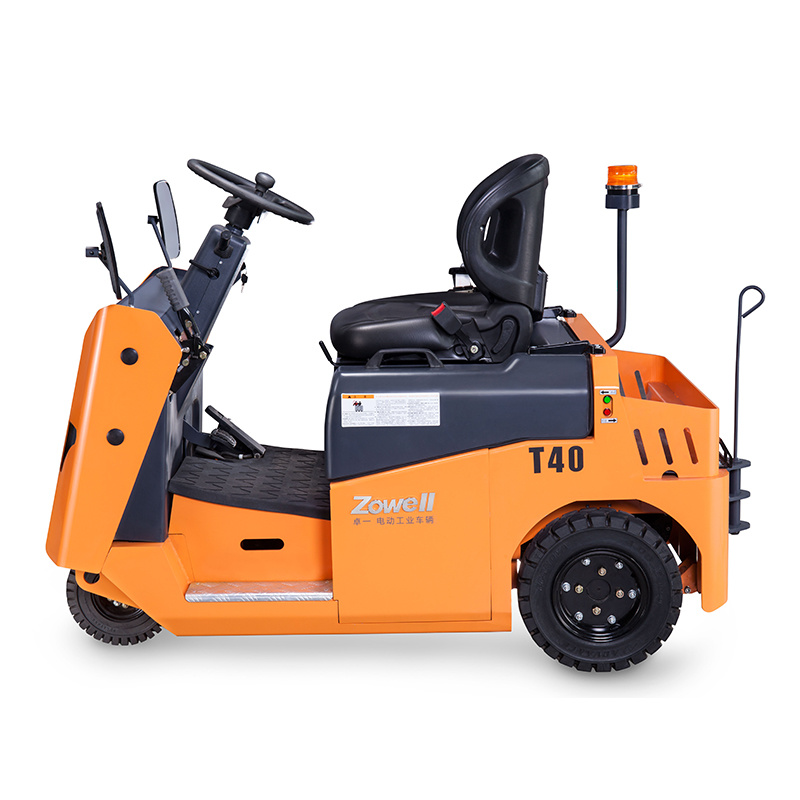

4 Ton Electric Towing Truck

$5600.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	700 Sets/Month
Supply Ability:	1000 Sets/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	CE/ISO 9001
HS Code:	842710
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

4-6Ton Electric Towing Tractor has a loading capacity up to 4,000kgs.This towing tractor advanced integrated drive and control system ensure reliable performance and high efficiency.Zowell Electric Towing Head Rental is superbly versatile and manoeuvrable.It is an ideal choice for applications requiring the rapid and efficient transfer of multiple trailer loads in various industrial and commercial application well as specialized repair workshops.This electric tow tractor is mainly used for towing and order packing,while Electric Stacker Lifter is especially suitable for goods that move in the continous flow.

1	Product model			XT40
2	Power supply			Battery
3	Operating type			Sit-on
4	Tyres	front / rear		Front:solid, Rear:pneumatic
5	Tyre Quantity	front / rear		1/2x
6	Max. pulling force	3min rating	N(kgf)	4000(400)
7	Rated pulling force	60min rating	N(kgf)	1000(100)
	(traction capacity)
8	Traction weight	60min rating	kg	4000
9	Traveling speed	without loaded	km/h	13
		with load		8
10	Max. gradeability	without load	%	14
11	Overall length	with hook	mm	1728
		without hook	mm	1592
12	Front overhang		mm	266
13	Rear overhang		mm	136
14	Overall width		mm	858
15	Overall height		mm	1245
16	Turning radius		mm	1447
17	Hook length		mm	136
18	Hook height		mm	305/355
19	Wheelbase		mm	955
20	Tread	rear wheel	mm	724
21	Ground clearance		mm	85
22	Platform height		mm	371
23	Total weight	with battery	kg	812
		without battery		527
24	Weight layout	front wheel	kg	302
25	(with standard battery)	rear wheel		510
26	Tyre Dimension	front wheel		3.50-5-6PR
		rear wheel		4.00-8-6PR
27	Main brake			Hydraulic
28	Hand brake			Manual
29	Battery Voltage/ Nominal capacity (5H rating)		V/AH	24/280
30	Battery Weight		kg	285
31	Driving motor		kw	AC 3.0
32	Type of drive control			MOSFET Control
