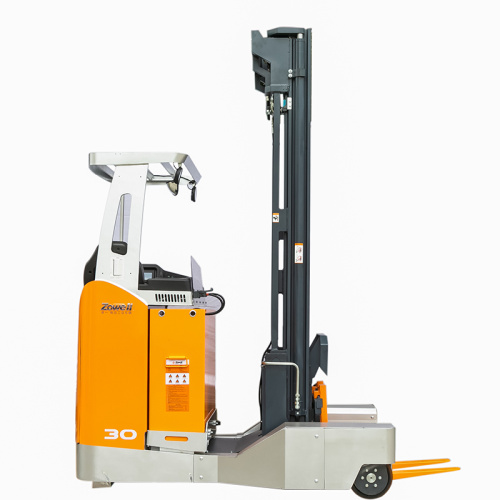

multi full way 4 way directional reach truck

multi full way 4 way directional reach truck

$43000.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land

Port:: shanghai, ningbo , lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	400
Supply Ability:	400
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE/ISO
HS Code:	8427109000
Transportation:	Ocean,Land
Port:	shanghai,ningbo ,lianyungang

Product Description

1.2	Manufacturer		Zowell	Zowell	Zowell	Zowell
1.2	Model		RSEW125	RSEW125S	RSEW130	RSEW130S
1.3	Power supply		Electric	Electric	Electric	Electric
1.4	Driving type		half closing sitting	half closing sitting	half closing sitting	half closing sitting
1.5	Load capacity	Q(kg)	2500	2500	3000	3000
1.6	Load center	C(mm)	600	600	500	500
1.7	Rear overhang	x1(mm)	549	498	549	498
1.8	Front Overhang	x(mm)	175	175	175	175
1.9	Wheelbase	y(mm)	1700	1700	1700	1700
2.2	Truck weight（Include battery）	kg	4400	4400	4500	4500
2.3	Battery weight（±5%）	kg	920	920	1020	1020
3.1	Tyres Front/Rear		PU	PU	PU	PU
3.2	Front load wheels（Diameter×Width）Single wheel	mm	φ280×135	φ280×135	φ280×135	φ280×135
3.3	Rear driving wheel（Diameter×width) Single wheel	mm	φ343×140	φ343×140	φ343×140	φ343×140
3.4	Wheel quantity Drive wgeel/Load wheel	pcs	1X/2	1X/2	1X/2	1X/2
3.5	Front wheels distance	b3(mm)	1392	1392	1392	1392
4.1	Lifting height	mm	3000-4500	4500-10000	3000-4500	4500-10000
4.2	Fork tilting front/rear	α/β(°)	2/4	2/4	2/4	2/4
4.3	Lifting height	h1(mm)	See attachment	See attachment	See attachment	See attachment
4.4	Overhead guard height	h5(mm)	2190	2190	2190	2190
4.5	Seat height/Operation platfom height	(mm)	1100/1350	1100/1350	1100/1350	1100/1350
4.7	Min groundcleance	h8(mm)	40	40	40	40
4.8	Balance leg height	h10(mm)	457	457	457	457
4.9	Overall length（include fork）	l1(mm)	2470	2470	2320	2320
4.13	Overall width	b1(mm)	1728	1728	1728	1728
4.14	Fork size	l/e/s(mm)	1070/100/45	1070/100/45	920/125/45	920/125/45
4.15	Rear Chassis width	b2(mm)	1230	1230	1230	1230
4.16	Fork width	b5(mm)	355-880	355-880	380-880	380-880
4.17	Inside withth of legs	b6(mm)	920	920	920	920
4.19	Min turning radidus	Wa(mm)	1952	1952	1952	1952
4.21	Min Aisle width(Go straight)	（mm）	2075	2075	2075	2075
4.22	Minin aisle width when side moving Pallet 3000×1000×1000()	（mm）	2600	2600	2600	2600
5.1	Driving speed Loaded/unloaded	km/h	10/11	10/11	10/11	10/11
5.2	Lifting speed Loaded/Unloaded	mm/s	250/300	250/300	250/300	250/300
5.3	Lowering speed Loaded/unloaded	mm/s	300/300	300/300	300/300	300/300
5.4	Gradeability Loaded/unloaded	%(tanθ )	8/15	8/15	7/15	7/15
5.5	Brake		Electric	Electric	Electric	Electric
5.6	Park		Electric	Electric	Electric	Electric
6.2	Driving motor(S2-60min) AC	kw	8	8	8	8
6.4	Lifting motor，(S3-15%)	kw	12.5	12.5	15	15
6.6	Steering motor AC	kw	0.7	0.7	0.7	0.7
6.7	Battery voltage/capacity	V/Ah	48/560	48/560	48/600	48/600
