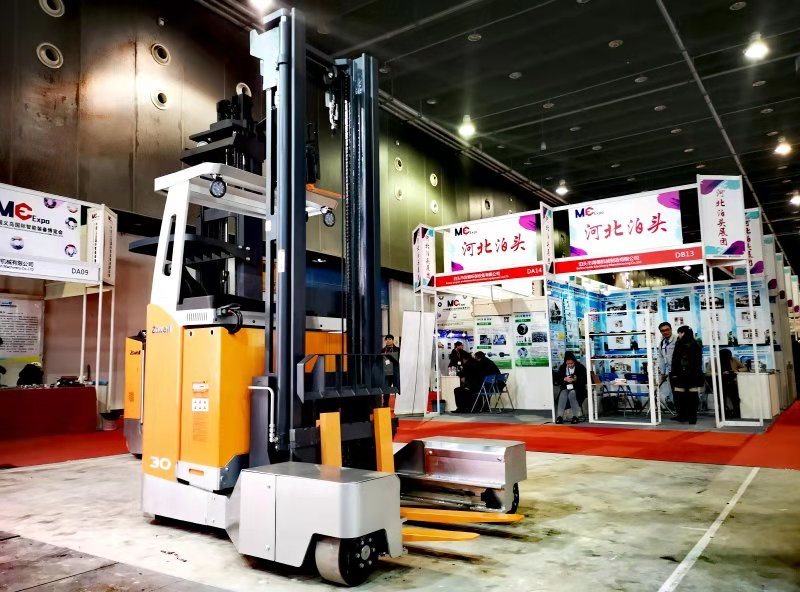

Zowell 3Ton Multi-Directional Forklift

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO
HS Code:	8427109000
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

Basic information

Six driving molds
Integrated handle
Maximum 3 ton capacity
Maximum 10.5m lifting height
Maximum 10m long goods.

Detail Features

Zowell multi-directional forklift is equipped with steering wheels display system and barking system to maximise safety.

Three wheel structure and imported controller ensures the best performance and stability.

Side entering the aisle with 10m long goods,required aisle width reduced by 66% higher.

Compared with using normal forklifts, its storeable materials can have multipling growth.

Equipped with electric powering steering function, the noise is lower. Not only improve the use time but also avoid the oil-leaking problem.

Technical Data

Manufacturer			ZOWELL
Model			RSEW120	RSEW125	RSEW130
Driving type			Sitting on
Load capacity	kg	Q	2000	2500	3000
Load center	mm	C	500	500	500
Self weight	kg		4300	4400	4500
Overhead guard height	mm	h6	2191	2191	2191
Overall width	mm	b1/b2	1628	1728	1728
Fork size	mm	L/e/s	40×100×920	45×100×920	45×125×920
Min ground clearance(Chassis)	mm	m2	80	80	80
Min turning radidus	mm	Wa	1210	1225	1225
Driving speed(Load /unload)	km/h		9/10	9/10	9/10
Braking			Electromagnetic brake	Electromagnetic brake	Electromagnetic brake
Gradeability(Load/unload)	%		10/15	10/15	8/15
Voltage/Capacity	V/Ah		48/560	48/560	48/600
