Pallet truck full electric AC

$4500.00 - $5300.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: SHANGHAI, lianyungang, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	700 PCS
Supply Ability:	700PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO9001
HS Code:	8427109000
Transportation:	Ocean
Port:	SHANGHAI,lianyungang,Ningbo

Product Description

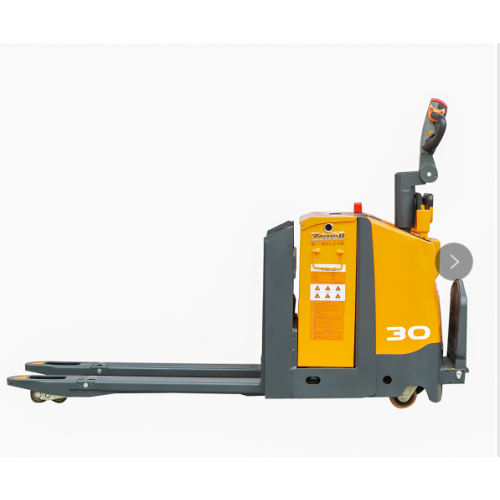

3t Electric Pallet Jack Easy Maintenance with Pedal

Zowell XPAT Electric Pallet Mover is with outstanding quality and suitable for both rental and own use. The lightweight

Standing Pallet Jack takes a different design compared to 2.5t Multi Directional Forklift For Sale, which has better lifting performance and more durable. Side loading and unloading of storage battery makes maintenance and changing easy. Users can select among different brands, including FAMM, GS, HOPPECKE, and Trojan.

Main Feature
1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

8.Five points structure brings the truck more stability

Technical Data

Identification	1	Product model designation		XPAT25	XPAT30	XPAT35
	2	Drive unit		Electric	Electric	Electric
	3	Operate type		Standing	Standing	Standing
	4	Load capacity	Q kg	2500	3000	3500
	5	Load center	C mm	600	600	600
	6	Load distance, Center of drive axle to fork back	X mm	190	190	190
	7	Wheelbase	Y mm	1600	1600	1600

weight	1	Truck weight (without battery)	kg	620	630	650
	2	Axle loading , loaded(front/rear)	kg	1215/2003	1215/2003	1215/2003
	3	Axle loading , unloading(front/rear)	kg	547/143	547/143	547/143

Wheel	1	Tires		Polyurethane	Polyurethane	Polyurethane
	2	Drive wheels size	mm	Φ230×75	Φ230×75	Φ230×75
	3	Loaded wheels size	mm	Φ80×70	Φ85×70	Φ85×70
	4	Balance wheels size	mm	Φ100×40	Φ125×60	Φ125×60
	5	Wheels number, front/rear(x=driven wheels)		1x-2/4	1x-2/4	1x-2/4
	6	Tread ,front	mm	558	558	558
	7	Tread ,rear	mm	340/390/500	340/390/500	340/390/500

Dimensions	1	Height, mast lowered	h1mm	1361	1361	1361
	2	Lift height	h3mm	205	205	205
	3	Forks height, lowered	h5mm	85	85	85
	4	Height of tiller in drive Position(max/min)	h6mm	1345/985	1345/985	1345/985
	5	Overall length	L1mm	2062	2062	2062
	6	Length to face of forks	L2mm	912	912	912
	7	Overall width	b1mm	786	786	786
	8	Fork dimensions	s/e/lmm	180/55/1150	180/55/1150	180/55/1150
	9	Maximum forks width	b3mm	520/570/680	520/570/680	520/570/680
	10	Minimum ground clearance	Mmm	25	25	25
	11	Aisle width for pallets 800x1200 lengthways	Astmm	2560	2560	2560
	12	Turning radius	Wamm	1893	1893	1893

Performance	1	Travel speed loaded/unload	km/h	4.8/5.6	4.8/5.6	4.8/5.6
	2	Lift speed loaded/unload	mm/s	40/50	40/50	40/50
	3	Lowering speed loaded/unload	mm/s	50/40	50/40	50/40
	4	Max grade ability loaded/unload	%	8/15	8/15	5/8
	5	Service brake		Electromagnetic brake	Electromagnetic brake	Electromagnetic brake

Electric motor	1	Drive motor rating	kw	1.5	2	2.5
	2	Lift motor rating	kw	2.2kw	2.2kw	2.2kw
	3	Battery voltage/capacity	V/Ah	24/210	24/240	24/300
	4	Battery weight	kg	190	220	260

others	1	Control unit type		Mosfet control	Mosfet control	Mosfet control
others	2	Sound level	dB(A)	<70	<70	<70
