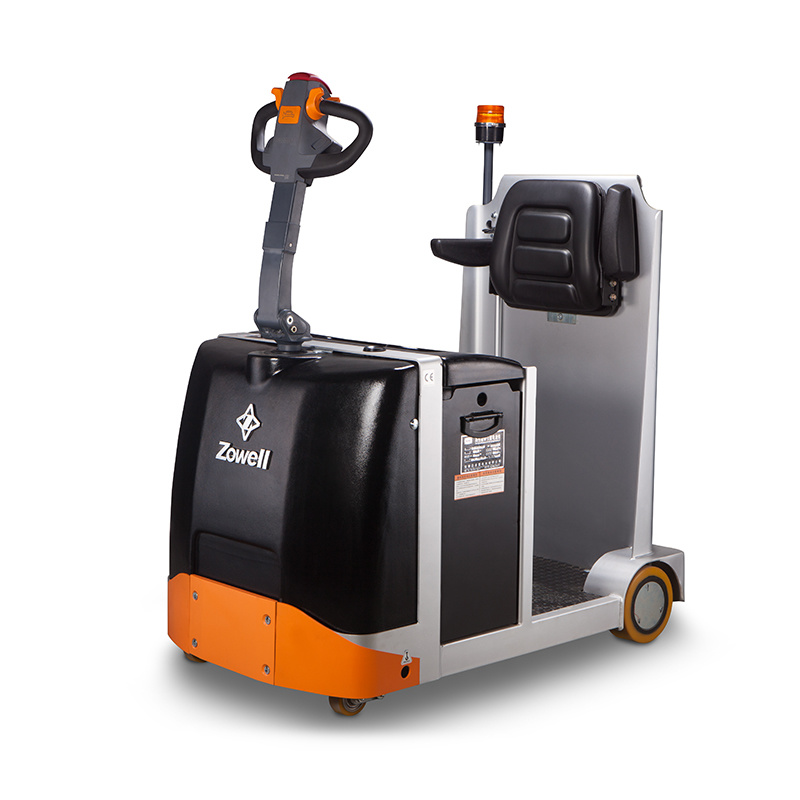

3 Ton Stand on Electric Towing Tractor

Apart from stacking equipment like VNA truck, electric stacker and reach stacker with high performance, durable and power machines are also needed to finish the laborious works in a efficient warehouse system. Zowell XT/XTE standing tow tractor provides strong power pulling heavy and numerous loads for logistics, airport, industry, distribution center, etc.


Detail features

1. Adjustable handle
The handle can be adjusted within a large range which can be suitable for different driving habits of different drivers by improving driving comfort.

2. Prepositive folder
The required documents can be placed at the front of the tugger, thus improving working efficiency.

3. Part maintenance
Remove the front cover, the control system and driving system can be clearly accessible for easy maintenance.

4. Side loading and unloading of storage battery
Side loading and unloading of storage battery can realize easy daily maintenance such as inspection and fluid replacement without lifting. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.

5. The wide backrest is equipped with an armrest on both side so that the operators can be more comfortable and safe when leaning on the backrest.

6. Short distance micro motion
There is one inching switch on both sides of the whole tugger, realizing easy docking of draft gear and carts. This can improve working efficiency of the tugger.

7. The storage box adopts a humanized design. It can be used to store papers and tools etc.

8. Floating pedal
This pedal features anti-slipping and shock absorption, thus optimizing driver safety and comfort.



Technical Data

1 Product model   XT30
2 Power supply   Electric
3 Operating type   Standing
4 Tyres   Polyurethane
5 Wheels number (x=drive wheel) front/balancing/rear   1x/2/2
6 Max pulling force 3min rating N  (Kg) 3000 (300)
7 Rated pulling force (traction capacity) 60min rating N  (Kg) 750 (75)
8 Traction weight 60min rating X mm 490
9 Drive speed  unloaded/loaded km/h 8/6.5
10 Gradeability unloaded/ 3min rating % 15
11 Overall length (with hook/without hook) mm 1373/1287
12 Front mm 187
13 Rear mm 150
14 Overall width mm 800
15 Overall height mm 1270
16 Turning radius mm 1150
17 Hook length mm 136
18 Hook height mm 170/220/270/320
19 Tread mm 950
20 Ground clearance Tread center mm 70
21 Height of floor mm 150
22 Truck weight (with battery/without battery) kg 660/380
23 Weight distribution (with nominal battery)
 front wheel / rear wheel
kg 410/250
24 Sizes of front wheel mm Φ230x75
25 Sizes of balancing wheel mm Φ100x40
26 Sizes of rear wheel mm Φ210x85
27 Service brake   Electromagnetic
28 Drive motor rating kW 1.1DC / 1.5 AC
29 Battery voltage / nominal capacity V/Ah 24/240
30 Battery weight Kg 280
31 Type of drive control   MOSFET Control
32 Noise level at operator's ear dB(A) <70
Lithium battery
