3 ton Electric Towing Tractor

$1.00 - $6100.00/Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO9001
HS Code:	842710
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

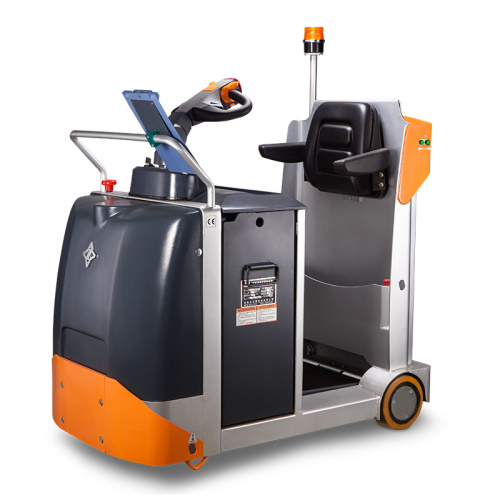

This 3-5 Ton Standing On Type Towing Tractor is the Operator position: Standing, thisElectric Towing Truck

Drive speed(without load/with load): 7.5km/h, can work with Electric Pallet Jack.

Electric motor: DC1.5

1	Product model		XT30
2	Power supply		Electric
3	Operating type		Standing
4	Tyres		Polyurethane
5	Wheels number (x=drive wheel) front/balancing/rear		1x/2/2
6	Max pulling force 3min rating	N (Kg)	3000 (300)
7	Rated pulling force (traction capacity) 60min rating	N (Kg)	750 (75)
8	Traction weight 60min rating	X mm	490
9	Drive speed unloaded/loaded	km/h	8/6.5
10	Gradeability unloaded/ 3min rating	%	15
11	Overall length (with hook/without hook)	mm	1373/1287
12	Front	mm	187
13	Rear	mm	150
14	Overall width	mm	800
15	Overall height	mm	1270
16	Turning radius	mm	1150
17	Hook length	mm	136
18	Hook height	mm	170/220/270/320
19	Tread	mm	950
20	Ground clearance Tread center	mm	70
21	Height of floor	mm	150
22	Truck weight (with battery/without battery)	kg	660/380
23	Weight distribution (with nominal battery) front wheel / rear wheel	kg	410/250
24	Sizes of front wheel	mm	Φ230x75
25	Sizes of balancing wheel	mm	Φ100x40
26	Sizes of rear wheel	mm	Φ210x85
27	Service brake		Electromagnetic
28	Drive motor rating	kW	1.1DC / 1.5 AC
29	Battery voltage / nominal capacity	V/Ah	24/240
30	Battery weight	Kg	280
31	Type of drive control		MOSFET Control
32	Noise level at operator's ear	dB(A)	<70

towing tugger
