3 Ton Electric Tow Tractor

$5900.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	700PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT
Certificate:	CE/ISO 9001
HS Code:	8709111000
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

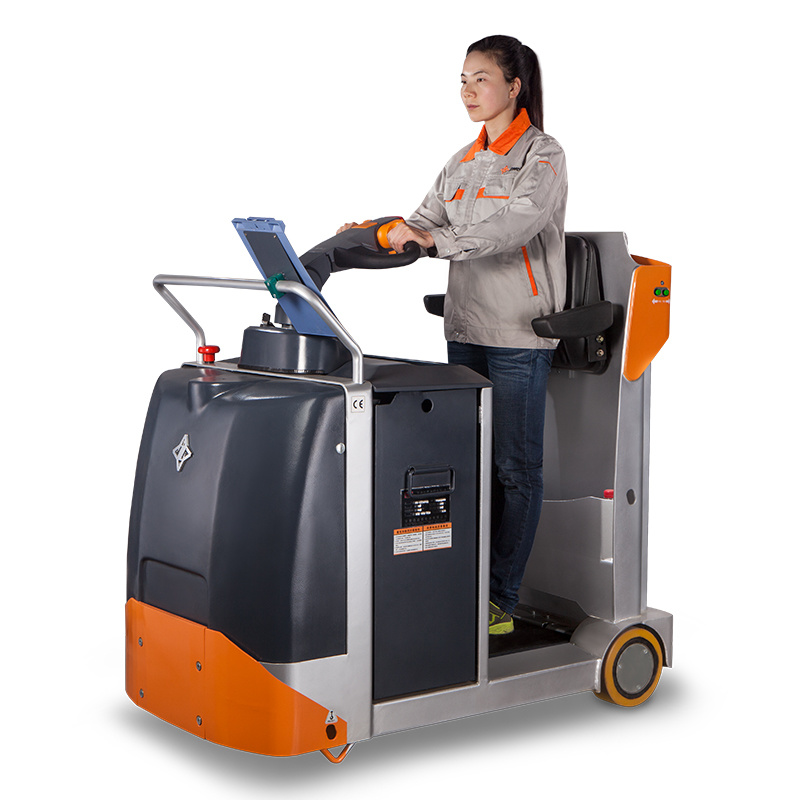

The Zowell 3-5 Ton Standing On Type Towing Tractor is a high-performance truck suitable for a wide range of towing and order-picking duties. This Electric Lift Truck is especially suitable for use in operations where goods are being moved in a continuous flow. Typical applications are industries where Just-In-Time principles are applied.

This Electric Tow Tractor Manufacturers In China is designed for safe, efficient, easy handling of loads up to 3,000 kg. The advanced integrated drive and control system that delivers outstanding performance, efficiency and ease-of-use.

1. Regenerative braking function
2. CURTIS electronic controller
3. Germany Frei handle
4. Side battery roll-out system, making it very convenient for battery replacement.
5. Low platform step height

1	Product model		XT30e	XT40e	XT45e	XT50e
2	Power supply		Electric	Electric	Electric	Electric
3	Operating type		Standing on	Standing on	Standing on	Standing on
4	Tyres		Polyurethane	Polyurethane	Polyurethane	Polyurethane
5	Wheels number (x=drive wheel) front/rear		1x/2	1x/2	1x/2	1x/2
6	Max traction weight	Q(Kg)	3000	4000	4500	5000
7	Rated pulling force (traction capacity) 60min rating	F(N )	750	1000	1125	1250
8	Max pulling force load/unload 5min rating	N	2900	3100	3600	3600
9	Wheelbase(+/-5mm)	y(mm)	1000	1000	1000	1000
10	Drive speed unloaded/loaded(+/-5%)	km/h	7/5.5	7/5.5	7/5.5	7/5.5
11	Gradeability unloaded/loaded 5min rating	%	6.4/15	4.8/15	4.7/15	4/15
12	Overall length (with hook/without hook)	mm	1585/1428	1585/1428	1585/1428	1585/1428
13	Overall width	mm	800	800	800	800
14	Overall height	mm	1266	1266	1266	1266
15	Height of tiller in drive position(max/min)	mm	1020/1120	1020/1120	1020/1120	1020/1120
16	Thread (front)	mm	0	0	0	0
17	Thread (rear)	mm	695	695	695	695
18	Turning radius(min)	mm	1200	1200	1200	1200
19	Hook height	mm	160/210/260	160/210/260	160/210/260	160/210/260
20	Ground clearance Tread center	mm	69	69	69	69
21	Truck weight (with battery(+/-10%)	kg	700	775	815	865
22	Axle loading,unloaded(front/rear)	kg	376/324	465/310		540/325
23	Sizes of front wheel	mm	Ø 230 x82	Ø 230 x82	Ø 230 x82	Ø 230 x82
24	Sizes of rear wheel	mm	Φ210x85	Φ210x85	Φ210x85	Φ210x85
25	Service brake		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
26	Drive motor rating	kW	AC 2.0	AC 2.0	AC 3.0	AC 3.0
27	Battery voltage / nominal capacity	V/Ah	24/240	24/325	24/350	24/400
28	Battery weight (+/-10%)	Kg	210	270	300	330
29	Type of drive control		MOSFET Control	MOSFET Control	MOSFET Control	MOSFET Control
30	Noise level at operator's ear	dB(A)	<70	<70	<70	<70
