2T Hot Sale Electric Towing Tractor Car
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- Shanghai, Ningbo, Lianyungang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000PCS |
| Supply Ability: | 1000PCS |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CIP |
| Certificate: | ISO, CE, ISO/TS16949 |
| HS Code: | 8709111000 |
| Transportation: | Ocean,Land |
| Port: | Shanghai,Ningbo,Lianyungang |

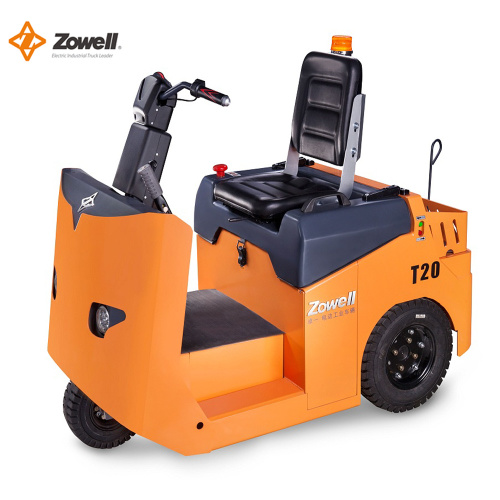

2T Hot Sale Electric Towing Tractor Car
For efficient warehouses, except stacking equipment like double deep reach truck or electric reach stacker with high performance, durable and powerful tow tractors are also needed to finish the laborious works. Zowell XT sitting-operated tow tractor provides strong power pulling heavy and numerous loads for logistics, airport, industry, distribution center, etc.
Please note that the motorcycle handle shown in the picture has been replaced by steering wheel.
Main Features
1. AC electronic controller
2. Very small size to make it easy to drive
3. With spot-forward and backward switch
Technical Data
| XT20 | ||||
| Identification | 1 | Product Model | XT20 | |
| 2 | Power supply | Electric | ||
| 3 | Operating type | sitting on | ||
| 4 | Load capacity | Q t | 2 | |
| 5 | Traction weight | F N | 686 | |
| 6 | Wheelbase | Y mm | 1030 | |
| weight | 1 | Weight | kg | 584 |
| Wheel | 1 | Tyres | PU | |
| 2 | Tyre size drive end | mm | 3.50-5-6PR | |
| 3 | Type size load end | mm | 4.00-8-6PR | |
| 4 | Wheels number (x=drive wheel) drive end/load end | 1/2x | ||
| 5 | Tread width drive end | mm | - | |
| 6 | Tread width load end | mm | 680 | |
| Dimensions | 1 | Total height | h1 mm | 1330 |
| 2 | Draw hook Height | h2 mm | 259/309/334/384 | |
| 3 | Overall length | L mm | 1645 | |
| 4 | Overall width | W mm | 800 | |
| 5 | Minimum ground clearance | h3 mm | 82.5 | |
| 6 | Turning radius | R mm | 1805 | |
| Performance | 1 | Travel speed loaded/unloaded | km/h | 8/9 |
| 2 | tractive effort loaded/unloaded 60min | N | 686 | |
| 3 | Max tractive effort loaded/unloaded 5min | mm/s | 1783 | |
| 4 | Max gradeability loaded/unloaded | % | 5/8 | |
| 5 | Service brake | hydraulic | ||
| Electric Motor | 1 | Drive motor rating | kw | 2.5 |
| 3 | Battery voltage / nominal capacity | V/Ah | 24/180 | |
| 4 | Battery weight | kg | 180 | |
| Others | 1 | Type of drive control | AC curtis | |
| 2 | Noise level at operator’s ear | dB(A) | <70 | |
