Product Description

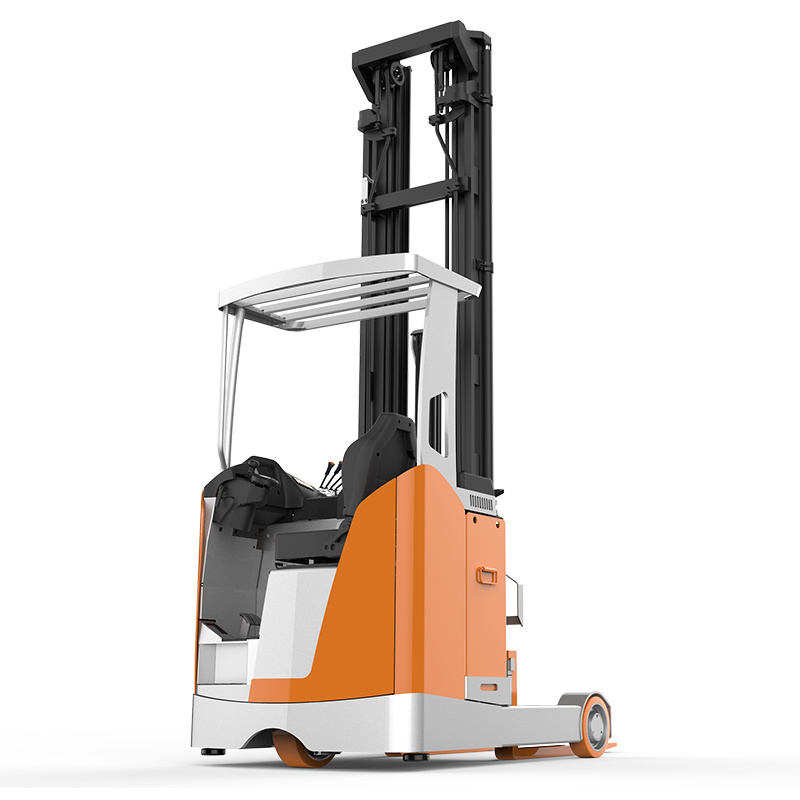

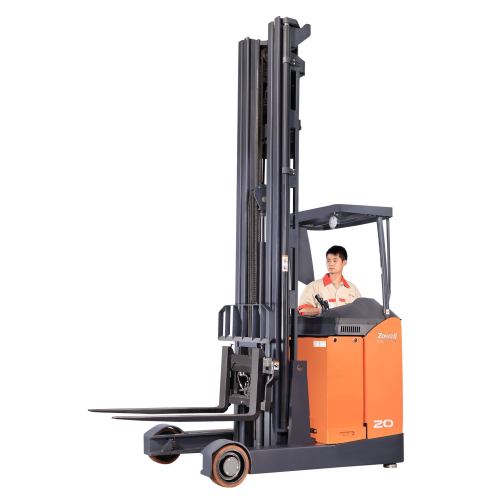

Electric Reach Truck 2 Ton Electric Reach Truck

Zowell 2t electric sit on reach truck is a warehouse equipment for high racks and large warehouse. The maximum lifting height of this model is 12000mm, durable Germany imported steel channel will be used in high mast as Zowell VNA trucks did. Advanced 48V electric system saves energy and provides better performance in operation. Optional proportional valve greatly relieves physical impact of fork lowering action. Together with electric towing tractor, electric stacker and other material handling euqipment, zowell provides full-ranged warehouse solution to customers overseas.

Detail Features

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

Technical Data

Model			FRB20
Power Supply			electric
Drive type			sitting on
Load capacity	Q	kg	2000
Load center	C	mm	600
Front overhang	X	mm	327
Wheelbase	Y	mm	1520

Self-weight（without battery）		kg	3940
Alex unload（front/ rear）-fork out		kg	1805/2135
Alex unload（front/ rear）-fork back		kg	2445/1515
Alex loaded（front/ rear）-fork out		kg	5045/895
Alex loaded（front/ rear）-fork back		kg	3720/2220

Tyre			PU
Tyre size drive end		mm	Φ343*140
Type size load end		mm	Φ300*100
Wheels quantity（x=Drive）			1x/2
Tread,front		mm	1192
Tread, rear		mm	/

Fork tilting degree	α/β	°	2/4
Mast lowerest height	h1	mm	3735
Free lifting height	h2	mm	2940
Lifting height	h3	mm	9000
Extended height	h4	mm	9855
Overhead guard height	h5	mm	2190
Seat height	h6	mm	1080
Platform height	h7	mm	395
front wheel cover height	h8	mm	377
Overall length	L1	mm	2593
Length of chasis	L4	mm	1965
Distance to forkface	L2	mm	1443
Overall width	b1	mm	1292
Fork dimension	L×e×s	mm	1150×100×40
fork mounting grade			2A
Fork width	b4-b3	mm	200-750
Inside width between two legs	b5	mm	920
Reach distance(with/without side shift)	L3	mm	545/580
Mini groundclearance	m	mm	40
Aisle width for pallets 1000x1200 1000mm hways	Ast	mm	2976
Aisle width for pallets 800x1200 lengthways	Ast	mm	2930
Turning radidus	Wa	mm	1770

Driving speed（Loaded/unloaded）		km/h	10/14
Lifting speed（Loaded/unloaded）		mm/s	350/390
Lowering speed（Loaded/unloaded）		mm/s	410/450
Mast reach speed（Loaded/unloaded）		mm/s	200
Max Gradeability ，Load/unloaded（5min）		%	5/8
Braking type			Managematic/Hydraulic

Driving motor rating KB60’		kw	8
Lifting motor rating 15%ED		kw	15
Battery voltage / nominal capacity		V/Ah	48/600
Battery weight		kg	1008
VDI energy consumption		kWh/h

System pressure		bar	180
Noise		dB（A）	75
