Electric straddle stacker 2T ISO9001

$6000.00 - $8000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE/ISO9001
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

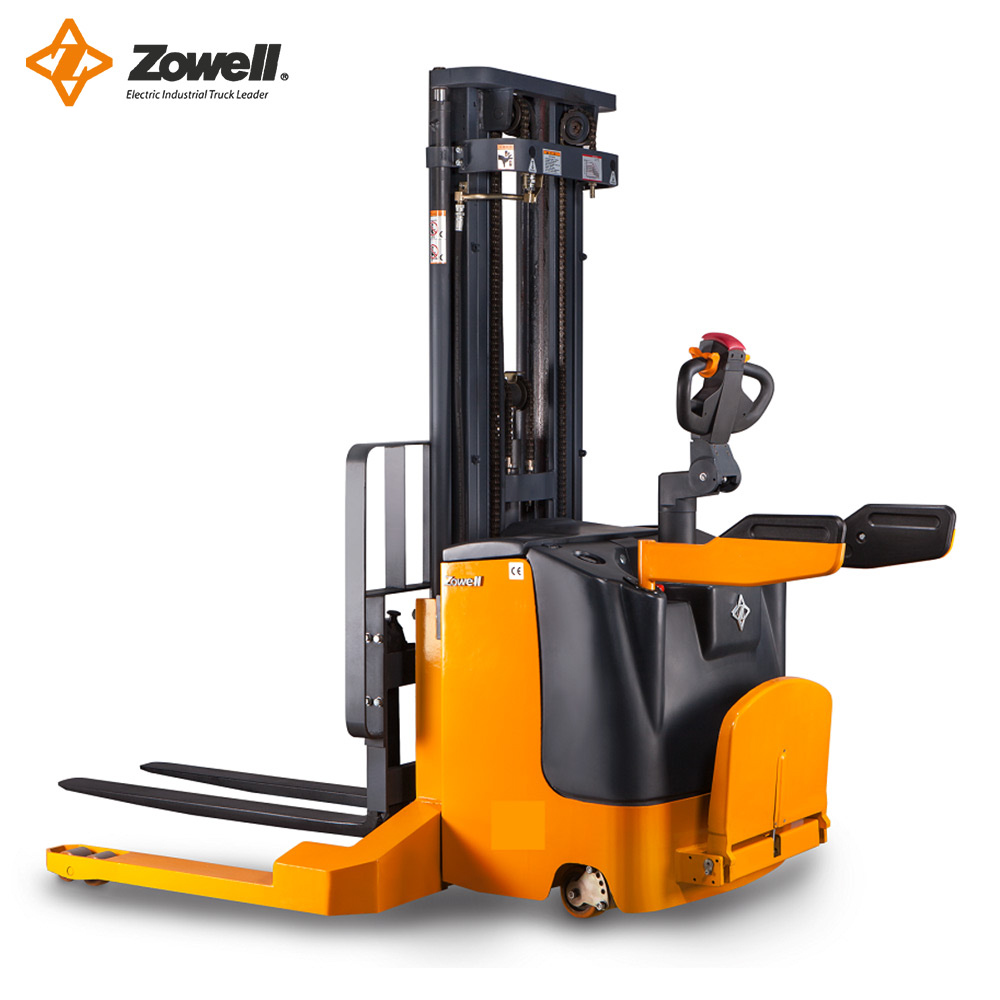

Electric straddle stacker 2T ISO9001

Zowell customized 1.5t/2t electric straddle stacker is equipped with a wide support leg to provide better performance and stability. As electric pallet truck, electric stacker, this model has a shock-absorbing platform for long transportation of materials. The maximum lifting heigth of this model is 5500mm. EPS is optional.

Detail features

1. Multifunctional meter

Multifunctional meter can display integrated electricity power level, working time and failure code. The operators can know the running condition of the stacker via the meter.

2. Emergency power-off switch

The power can be rapidly cut off in emergency to ensure safety.

3. Safety protection

The soft PU armrest features superior resistance to compression and impact, thus reducing indirect injuries caused by stacker operation. This provides safety protection as well as comfort for the operators.

4. Forged fork

The width of the fork can be adjusted within the range of 200-800mm. It is suitable for working conditions with single side pallet or double side pallet.

5. Lifting height limit

The lifting height of this reach truck can be up to 3m. It is precisely controlled.

6. Side loading and unloading of storage battery

Side loading and unloading of storage battery can realize easy maintenance and battery swapping.

Specification Sheet - XEK Straddle Stacker
Identification	Product model			XEK15
	Power supply			Electric
	Operating type			Standing
	Load capacity		Q Kg	1500
	Load center distance		C mm	600
	Load distance		X mm	490
	Wheelbase		Y mm	1340
Weight	Weight (without battery)		Kg	781
	Axle loading, loaded drive end / load end		Kg	911/1620
	Axle loading, unloaded drive end / load end		Kg	690/340
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ250x80
	Type size load end		mm	Φ80x70
	Balancing wheel size		mm	Φ125x50
	Wheels number (x=drive wheel) drive end/load end			1x-2/4
	Tread width drive end		mm	690
	Tread width load end		mm	1394
Dimensions	Height data is on the bottom - Height data choices
	Forks height,lowered		h5 mm	40
	Height of handle in drive position (Max/Min)		h6 mm	1350/985
	Overall length		L1 mm	2070
	Length to face of forks		L2 mm	925
	Overall width		b1 mm	1510
	Inside width at the end of leg		b2 mm	1270
	Fork dimensions (Forging)		s/e/l mm	100/35/1070
	Forks width		b3 mm	200-800
	Minimum ground clearance		m mm	30
	Aisle width for pallets 800x1200 lengthways		Ast mm	2350
	Turning radius		Wa mm	1610
Performance	Travel speed loaded/unloaded		km/h	5.2/6
	Lift speed loaded/unloaded		mm/s	90/120
	Lowering speed loaded/unloaded		mm/s	125/80
	Max gradeability loaded/unloaded		%	5/8
	Service brake			Electromagnetic
Electric Motor	Drive motor rating		kW	1.5(AC)
	Lift motor rating		kW	2.2/3.0
	Battery voltage / nominal capacity		V/Ah	24/210(240-280)
	Battery weight		Kg	230(250-280)
Others	Type of drive control			MOSFET control
	Noise level at operator's ear		dB(A)	<70

Height Data Choices
	Mast type	Lift		Height with mast closed	Free Lift	Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)	h4 (mm)
	Single	1600		2010	1053	2557
	Dual	2500		1750	/	3457
	Dual	3000		2000	/	3957
	Dual	3500		2250	/	4457
	Dual	4000		2500	/	4957
	Triple	4500		2055	1057	5457
	Triple	4800		2155	1157	5757
	Triple	5000		2215	1217	5957
	Triple	5500		2385	1417	6457
