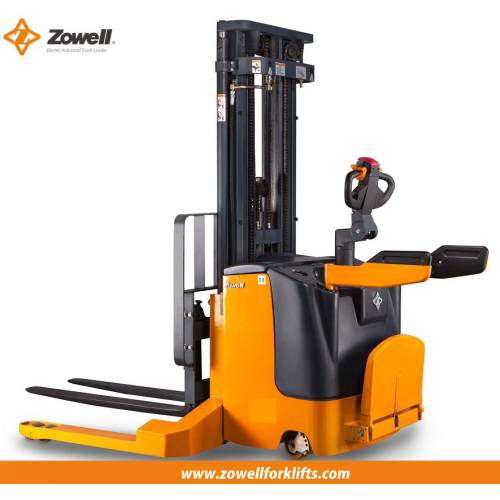

Electric Straddle Stacker Zowell Forklift

XEK electric staddle stacker provides a safe and stable operation experience as counterbalanced forklift. It is equipped with clear-view mast and reliable control and display system designer for safety. The special fork and support leg are more stable to manage both sigle or double faced pallet in variouse scenarios such as ports, railways, freight yards, warehouses. XEK electric walkie straddle stacker is the wise choice to extend your space and improve efficiency.

Main Features

The multifunctional handle is imported from Germany.

It has integrated control functions including a speed button, horn button, emergency reversing button and lifting button.

The handle has an emergency reversing button which can effectively protect the operators from being hurt in accident involving falling items.

The handle can realize braking both in vertical and horizontal position.

The human-machine design is quite safe and the operation is more comfortable.

It's able to lift up closed pallet.

Technical Data

Identification	1	Product Model		EBK15
	2	Driving type		Electric
	3	Operation type		Pedestrain
	4	Rated loading capacity	Q kg	1500
	5	Load distance	X mm	404
	6	Load center	C mm	600
	7	Wheelbase	Y mm	1398

Weight	1	Self weight（without battery）	kg	1038
Weight
Wheels	1	Tyres		Polurethane
	2	Tyre size drive wheel	mm	Φ230×82
	3	Tyre size load wheel	mm	Φ80×70
	4	Tyre size Balance wheel	mm	Φ125×50
	5	Wheels qty（front/rear）（x=drive wheel）		1x-1/4
	6	Tread width drive end	mm	555
	7	Tread width load end	mm	1390

Basic size	1	Total height（Fork lowerest)	h1 mm	Table 1
	2	Free lifting height	h2 mm
	3	Lifting height	h3 mm
	4	Maximum height（Fork extended）	h4 mm
	5	Forks height, lowered	h5 mm	35
	6	Height of handle in drive position (Max/Min)	h6 mm	1305/715
	7	Overall length	L1 mm	1999
	8	Length to face of forks	L2 mm	930
	9	Inside width at the end of leg	b2 mm	1270
	10	Overal width	b1 mm	1510
	11	Fork size	s/e/l mm	100/35/1070
	12	Fork width	b3 mm	200-800
	13	Minimum ground clearance	m mm	20
	14	Aisle width for pallets 1000x1200 lengthways	Ast mm	2556
	15	Turning radidus	Wa mm	1595

Performance	1	Driving speed Load/unload	km/h	4/4.5
	2	Lifting speed Load/unload	mm/s	85/130
	3	Lowering speed Load/unload	mm/s	85/100
	4	Maximum gradeability Load/unloaded	%	5/10
	5	Service brake		Electromagnetic

Motor	1	Driving motor rating	kw	1.5
	2	Lifting motor rating	kw	2.2
	3	Battery voltage/Capacity	V/Ah	24/210(210\240\280)
	4	Battery weight	kg	200\205\295

Others	1	Control type		MOSFET Control
Others	2	Noise level	dB(A)	<70
