New 2 Ton Electric Standing-on Stacker High Quality

New 2 Ton Electric Standing-on Stacker High Quality

$5750.00 - $7550.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE
HS Code:	842710
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

Electric Stacker 2 Tons Warehouse use (1.5ton Loading, 1.6m-4.5m Lifting)

Walkie stacker has been played an important role in warehouse storage. For a wide range of industries, Zowell XE electric palletstacker gives full flexibility to translate your loads quickly and safely. As other equipments such as electric pallet truck, electric towing tractor presented by Zowell, it features compact size, reduced energy costs, no pollution and low noise--they always helps you to find the right space where goods supposed to go.

Main Features

1. Loading capacity: 1ton, 1.5ton

2. Lifting height: 1.6m-4.5m
3. Battery side extraction
4. Wide view mast
5. Regenerative braking function
6. CURTIS Electronic Controller from Europe
7. Germany FREI handle
8. Italian HYDRAPP Hydraulic system
9. Germany Mannstaedt steel for mast.

Technical Data

Identification	1	Product model		XE20
	2	Power supply		Electric
	3	Operating type		Standing
	4	Load capacity	Q kg	2000
	5	Load center distance	C mm	600
	6	Load distance	X mm	440
	7	Wheelbase	Y mm	1386

Weight	1	Weight(without battery)	kg	997
	2	Axle loading, loaded drive end / load end	kg	994/2203
	3	Axle loading,unloaded drive end / load end	kg	827/370

Wheel	1	Tyres		Polyurethane
	2	Tyre size drive end	mm	Φ230×82
	3	Type size load end	mm	Φ80×70
	4	Balancing wheel size	mm	Φ150×60
	5	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	6	Tread width drive end	mm	800
	7	Tread width load end	mm	390/400/500

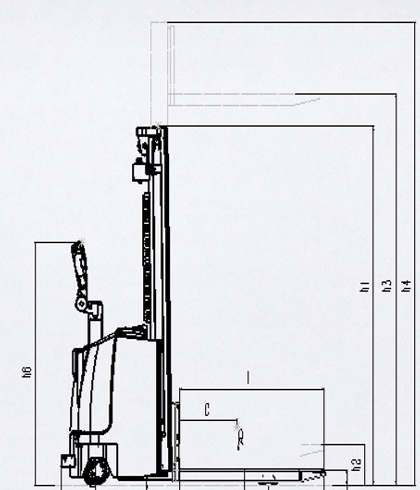

Dimensions	1	Height with mast closed	h1 mm	2055
	2	Free lifting height	h2 mm	0
	3	Lifting height	h3 mm	3000
	4	Max height, max fork height	h4 mm	3520
	5	Forks height, lowered	h5 mm	86
	6	Height of handle in drive position (Max/Min)	h6 mm	1390/1130
	7	Overall length	L1 mm	2110
	8	Length to face of forks	L2 mm	948
	9	Overall width	b1 mm	942
	10	Fork dimensions	s/e/l mm	180/66/1150
	11	Forks width	b3 mm	570/580/680
	12	Min. ground clearance	m mm	30
	13	Aisle width for pallets 800x1200 lengthways	Ast mm	2516
	14	Turning radius	Wa mm	1683

Performance	1	Travel speed loaded/unloaded	km/h	4.6/5.2
	2	Lift speed loaded/unloaded	mm/s	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80
	4	Max gradeability loaded/unloaded	%	5/8
	5	Service brake		Electromagnetic

Electric Motor	1	Drive motor rating	kw	AC 1.5
	2	Lift motor rating	kw	3
	3	Battery voltage / nominal capacity	V/Ah	24/210(210\240\280)
	4	Battery weight	kg	200\205\295

Others	1	Type of drive control		MOSFET Control
Others	2	Noise level at operator’s ear	dB(A)	<70
