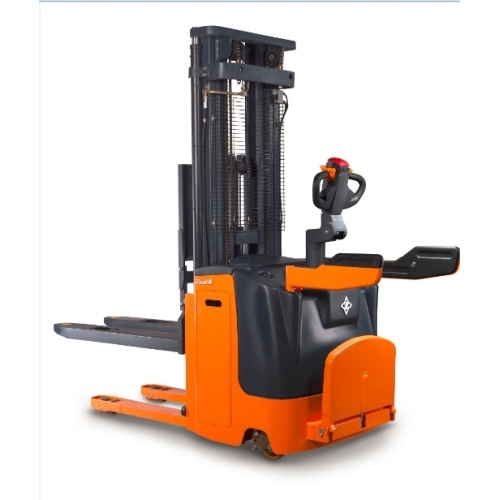

Zowell CE Electric Stacker 2Ton

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

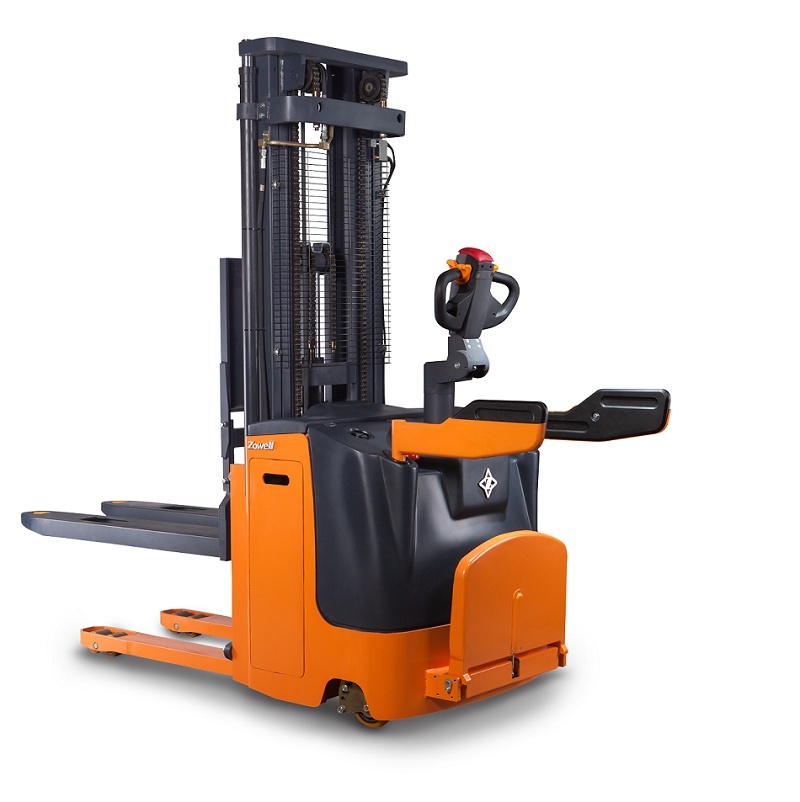

Electric Stacker Xe (1.5ton Loading, 1.6m-4.5m Lifting)
1. Loading capacity: 1ton, 1.5ton
2. Lifting height: 1.6m-4.5m
3. Battery side extraction
4. Wide view mast
5. Regenerative braking function
6. CURTIS Electronic Controller from Europe
7. Germany FREI handle
8. Italian HYDRAPP Hydraulic system
9. Germany Mannstaedt steel for mast.

XE Electric stacker Technical Data
ldentification

Identification	Product model			XE10A	XE10B	XE15A	XE15B	XEH15A	XEH15B
	Power supply			Electric	Electric	Electric	Electric	Electric	Electric
	Operating type			Standing	Pedestrian	Standing	Pedestrian	Standing	Pedestrian
	Load capacity		Q Kg	1000	1000	1500	1500	1500	1500
	Load center distance		C mm	600	600	600	600	600	600
	Load distance		X mm	430	430	440	440	443	443
	Wheelbase		Y mm	1280	1280	1330	1330	1342	1342
Weight	Weight(without battery)		Kg	700	680	775	755	930	905
	Axle loading, loaded drive end / load end		Kg	736/1164	728/1152	962/1563	937/1568	1126/1554	1106/1549
	Axle loading,unloaded drive end / load end		Kg	612/288	598/282	705/320	680/325	826/354	808/347
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ250x80	Φ250x80	Φ250x80	Φ250x80	Φ250x80	Φ250x80
	Type size load end		mm	Φ80x70	Φ80x70	Φ80x70	Φ80x70	Φ80x70	Φ80x70
	Balancing wheel size		mm	Φ125x50	Φ125x50	Φ125x50	Φ125x50	Φ125x50	Φ125x50
	Wheels number (x=drive wheel) drive end/load end			1x-2/4	1x-2/4	1x-2/4	1x-2/4	1x-2/4	1x-2/4
	Tread width drive end		mm	690	690	690	690	690	690
	Tread width load end		mm	400	400	400	400	400	400
Dimensions	Height data is on the bottom - Height data choices
	Forks height, lowered		h5 mm	86	86	86	86	86	86
	Height of handle in drive position (Max/Min)		h6 mm	1350/985	1350/985	1350/985	1350/985	1350/985	1350/985
	Overall length		L1 mm	1950	1890	2020	1960	2023	1963
	Length to face of forks		L2 mm	797	737	869	809	873	793
	Overall width		b1 mm	850	850	850	850	924	924
	Fork dimensions		s/e/l mm	170/66/1150		180/66/1150
	Forks width		b3 mm	570 or 680
	Min. ground clearance		m mm	30	30	30	30	30	30
	Aisle width for pallets 800x1200 lengthways		Ast mm	2225	2140	2300	2210	2300	2210
	Turning radius		Wa mm	1545	1460	1610	1520	1610	1520
Performance	Travel speed loaded/unloaded		km/h	5.2/6	4/5	5.2/6	4/5	4.6/5.2	4.6/5.2
	Lift speed loaded/unloaded		mm/s	90/120	90/120	90/120	90/120	120/150	120/150
	Lowering speed loaded/unloaded		mm/s	125/80	125/80	125/80	125/80	150/125	150/125
	Max gradeability loaded/unloaded		%	5/8	5/8	5/8	5/8	5/8	5/8
	Service brake			Electromagnetic
Electric Motor	Drive motor rating		kW	1.2(DC),1.5(AC)		1.2(DC),1.5(AC)		1.2(DC),1.5(AC)
	Lift motor rating		kW	2.2/3.0		2.2/3.0		2.2/3.0
	Battery voltage / nominal capacity		V/Ah	24/180(210)		24/210(240-280)		24/240(280)
	Battery weight		Kg	210(230)		230(250-280)		250(280)
Others	Type of drive control			MOSFET Control
	Noise level at operator's ear		dB(A)	<70
Height Data Choices
Model	Mast type	Lift		Height with mast closed		Free Lift	Height with mast Extended
		h3 (mm)		h1 (mm)		h2 (mm)	h4 (mm)
XE10/XE15	Single	1600		1980		1600	1980
	Dual	2500		1750		/	2956
	Dual	3000		2000		/	3465
	Dual	3500		2250		/	3965
	Dual	4000		2500		/	4465
	Triple	4500		2055		1490	4979
XEH15	Triple	4800		2155		1600	5285
	Triple	5000		2255		1660	5485
	Triple	5500		2445		1820	5985

Zowell CE Electric Stacker Xe (1.5ton Loading, 1.6m-4.5m Lifting) Can Be Customized
