Product Description

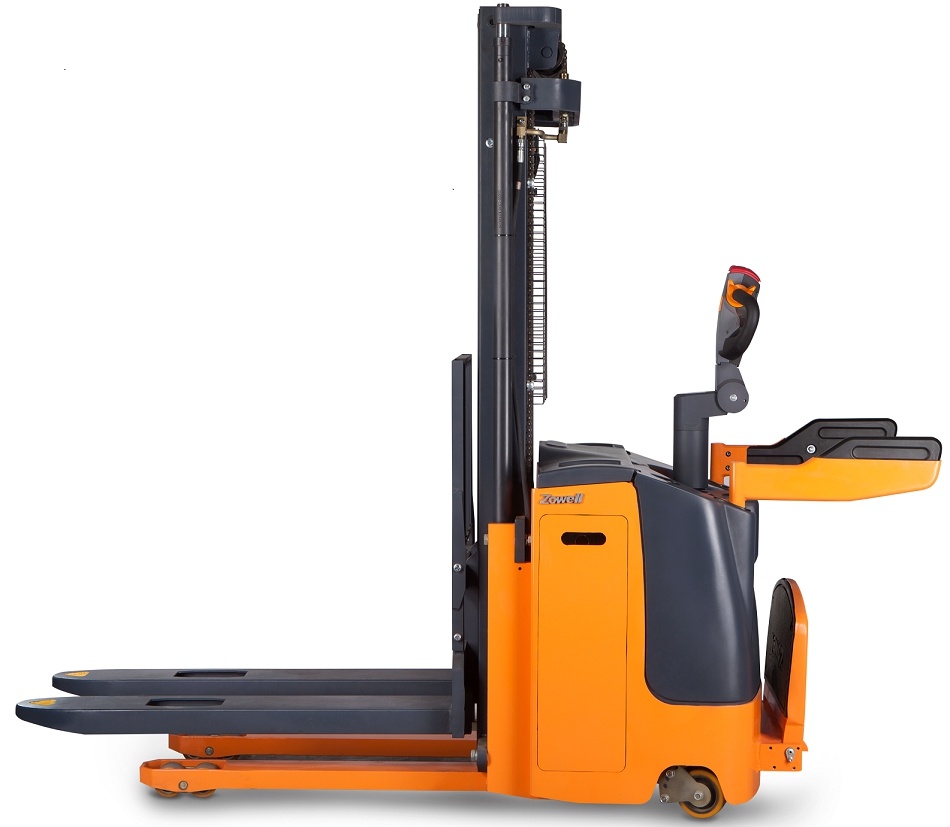

Zowell XE series 2 Ton Electric Stacker is a Full Electric Stacker deigsned for single-faced pallet. The maximum lifting heigth is 5500mm. The stacker is standard with vertical driving system and can be repaired easier. The multi-functional handle assembles driving and lifting/lowering function with accurate control as the 2 Ton Electric Reach Stacker.

1. Imported seperately excited electric control
2. Regenerative braking function
3. Frei tiller, original device of Germany
4. Sideways battery exit
5. Widen mast views.

Identification	Product model		XE10A	XE10B	XE15A	XE15B	XEH15A	XEH15B
	Power supply		Electric	Electric	Electric	Electric	Electric	Electric
	Operating type		Standing	Pedestrian	Standing	Pedestrian	Standing	Pedestrian
	Load capacity	Q Kg	1000	1000	1500	1500	1500	1500
	Load center distance	C mm	600	600	600	600	600	600
	Load distance	X mm	430	430	440	440	443	443
	Wheelbase	Y mm	1280	1280	1330	1330	1342	1342
Weight	Weight(without battery)	Kg	700	680	775	755	930	905
	Axle loading, loaded drive end / load end	Kg	736/1164	728/1152	962/1563	937/1568	1126/1554	1106/1549
	Axle loading,unloaded drive end / load end	Kg	612/288	598/282	705/320	680/325	826/354	808/347
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ250x80	Φ250x80	Φ250x80	Φ250x80	Φ250x80	Φ250x80
	Type size load end	mm	Φ80x70	Φ80x70	Φ80x70	Φ80x70	Φ80x70	Φ80x70
	Balancing wheel size	mm	Φ125x50	Φ125x50	Φ125x50	Φ125x50	Φ125x50	Φ125x50
	Wheels number (x=drive wheel) drive end/load end		1x-2/4	1x-2/4	1x-2/4	1x-2/4	1x-2/4	1x-2/4
	Tread width drive end	mm	690	690	690	690	690	690
	Tread width load end	mm	400	400	400	400	400	400
Dimensions	Height data is on the bottom - Height data choices
	Forks height, lowered	h5 mm	86	86	86	86	86	86
	Height of handle in drive position (Max/Min)	h6 mm	1350/985	1350/985	1350/985	1350/985	1350/985	1350/985
	Overall length	L1 mm	1950	1890	2020	1960	2023	1963
	Length to face of forks	L2 mm	797	737	869	809	873	793
	Overall width	b1 mm	850	850	850	850	924	924
	Fork dimensions	s/e/l mm	170/66/1150		180/66/1150
	Forks width	b3 mm	570 or 680
	Min. ground clearance	m mm	30	30	30	30	30	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2225	2140	2300	2210	2300	2210
	Turning radius	Wa mm	1545	1460	1610	1520	1610	1520
Performance	Travel speed loaded/unloaded	km/h	5.2/6	4/5	5.2/6	4/5	4.6/5.2	4.6/5.2
	Lift speed loaded/unloaded	mm/s	90/120	90/120	90/120	90/120	120/150	120/150
	Lowering speed loaded/unloaded	mm/s	125/80	125/80	125/80	125/80	150/125	150/125
	Max gradeability loaded/unloaded	%	5/8	5/8	5/8	5/8	5/8	5/8
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.2(DC),1.5(AC)		1.2(DC),1.5(AC)		1.2(DC),1.5(AC)
	Lift motor rating	kW	2.2/3.0		2.2/3.0		2.2/3.0
	Battery voltage / nominal capacity	V/Ah	24/180(210)		24/210(240-280)		24/240(280)
	Battery weight	Kg	210(230)		230(250-280)		250(280)
Others	Type of drive control		MOSFET Control
Others	Noise level at operator's ear	dB(A)	<70
