2022 New Electric Pallet Stacker High Lifting

2022 New Electric Pallet Stacker High Lifting

$5800.00 - $10500.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE/ISO
HS Code:	8427102000
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

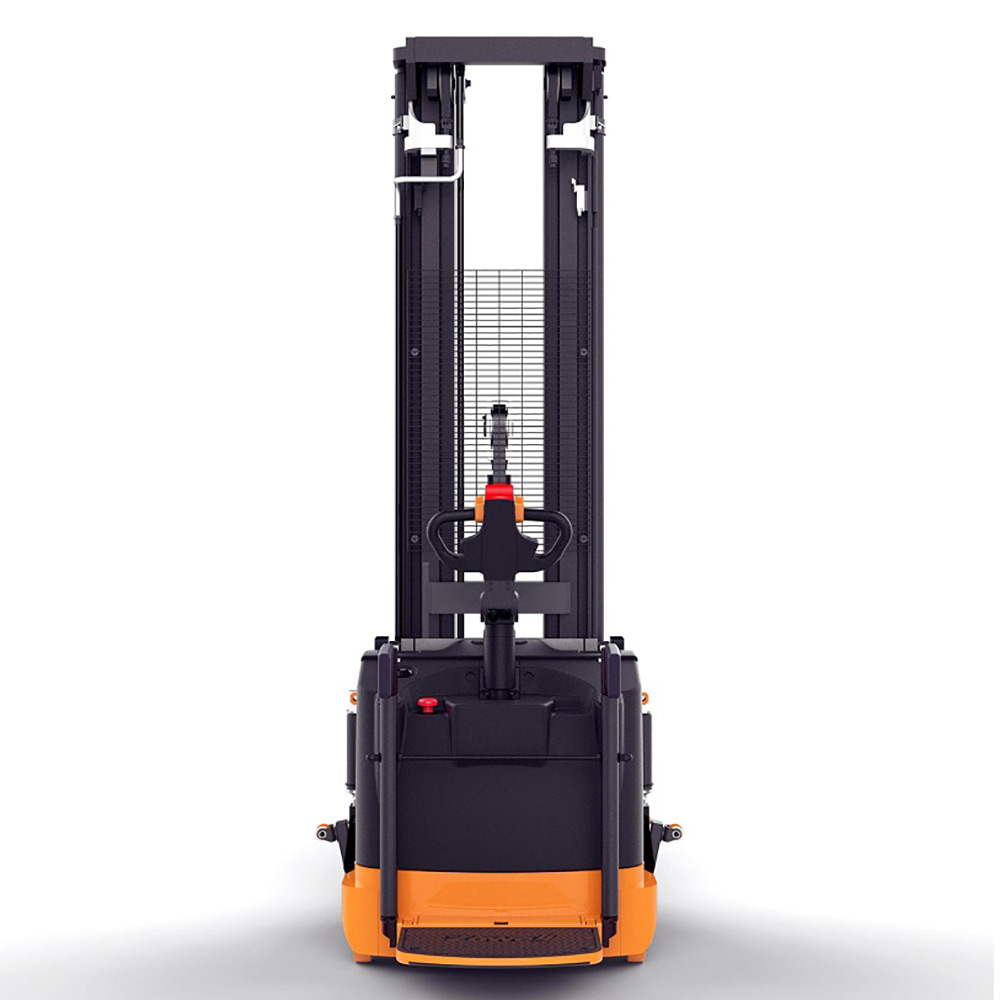

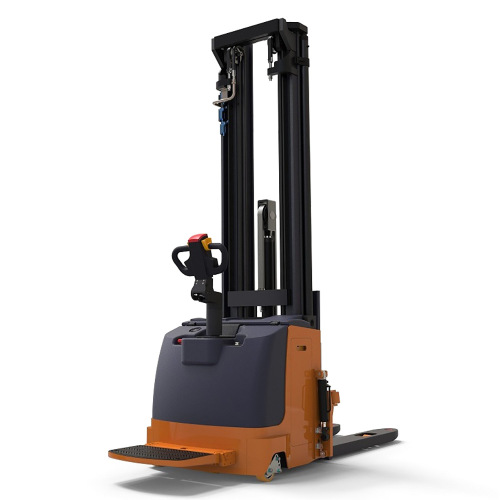

2022 New Electric Pallet Stacker High Lifting

Zowell XEH20 2t electric stacker is equipped with standard EPS, vertical driving system and support, ensuring high stability of stacking at height. Compared with counterbalanced forklift, 1.5t pedestrian operated electric stacker and standing operated electric stacker, the reinforced mast of XEH20 provides more load capacity and its maximum lifting height can be 6800mm. Zowell standard electric stacker is mainly used for stacking of medium and high intensity, like pallet transport and stack in warehouses, manufacturing industries, retail stores, and so on.

EHA20 Technical data
Specification	Product model		EHA20
	Power supply		Electric
	Operating type		Standing on
	Load capacity	Q kg	2000
	Load center distance	C mm	600
	Load distance	X mm	450
	Wheelbase	Y mm	1392

Weight	Weight (without battery)	kg	1495
	Axle loading, loaded drive end / load end	kg	1299/2406
	Axle loading, unloaded drive end / load end	kg	1156/549

Wheels	Wheels		Polurethane
	Drive wheel	mm	Φ250×80
	Load weheel	mm	Φ80×70
	Tyre size Side balance wheel	mm	Φ125×50
	Side balance wheel	mm	Φ80×70
	Wheels quantity(Front/back/side)(x=drive wheel)		1x-2/4/2
	Front wheel distance	mm	694
	Back wheel distance	mm	500

Dimension	Total height(fork height lowest)	h1 mm	2816
	Free lift	h2 mm	1822
	Lifting height	h3 mm	6800
	Maxim height(Fork height highest)	h4 mm	7794
	Fork height(lowerest)	h5 mm	86
	Height of handle in drive position (Max/Min)	h6 mm	1396/1136
	Overall length	L1 mm	2115
	Overall width	b1 mm	Side wheels closed 1057 Side wheels opened 1660
	Overall width	s/e/l mm	180/66/1150
	Fork dimensions	b2 mm	680
	Mimum ground clearance	m mm	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2529
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2595
	Turning radius	Wa mm	1688

Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Lift speed loaded/unloaded	mm/s	50/80
	Lowering speed loaded/unloaded	mm/s	125/80
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic

Motor	Drive motor rating	kw	AC 2.0
	Lift motor rating	kw	3
	Battery voltage / nominal capacity	V/Ah	24/210(210\240\280\300)
	Battery weight	kg	200\205\295\

Others	Type of drive control
Others	Noise	dB(A)	<70

	Mast specification
	Lifting height	Overall height(Mast lowerest)	Maxim height(mast extended)	Free lift
Triple masts	3600	1756	4116/4594	1160/762
	3900	1856	4416/4894	1260/862
	4200	1956	4716/5194	1360/962
	4500	2056	5016/5494	1460/1062
	4800	2156	5316/5794	1560/1162
	5100	2256	5616/6094	1660/1262
	5400	2356	5916/6394	1760/1362
	5700	2456	6216/6694	1860/1462
	6000	2556	6516/6994	1960/1562
	6300	2656	6816/7294	2060/1662
	6600	2756	7116/7594	2160/1762
	6800	2816	7296/7794	2240/1822
