Zowell 2t Electric Stacker CE Certificated

Zowell 2t Electric Stacker CE Certificated

$10230.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO
HS Code:	842710
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

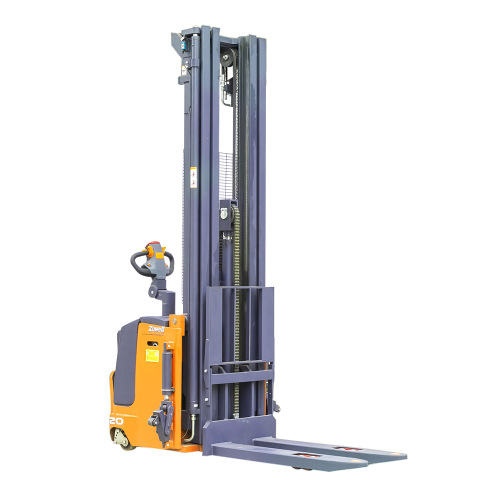

Zowell XEHA20 Electric Stacker

Full Electric Stacker, or walkie stacker, is an industrial device for big material handling on a shelf at high level. As an ideal choice to operate in narrow space of warehouse, XEH is equipped with high mast so it can lift goods higher than normal stackers. Compared with the traditional manual stacking, Zowell Walkie Stacker With Platform maintains great advantages in safety, efficiency and cost. In addition to durability and accuracy both outside and inside, Zowell XE electric stackers are also equipped with mast with clear view, double speed and lateral vertical moving switch, which are valuable when working in limited space.

Technical Data


Specification	Product model		XEHA20
	Power supply		Electric
	Operating type		Standing on
	Load capacity	Q kg	2000
	Load center distance	C mm	600
	Load distance	X mm	450
	Wheelbase	Y mm	1392

Weight	Weight (without battery)	kg	1495
	Axle loading, loaded drive end / load end	kg	1299/2406
	Axle loading, unloaded drive end / load end	kg	1156/549

Wheels	Wheels		Polurethane
	Drive wheel	mm	Φ250×80
	Load weheel	mm	Φ80×70
	Tyre size Side balance wheel	mm	Φ125×50
	Side balance wheel	mm	Φ80×70
	Wheels quantity(Front/back/side)(x=drive wheel)		1x-2/4/2
	Front wheel distance	mm	694
	Back wheel distance	mm	500

Dimension	Total height(fork height lowest)	h1 mm	2816
	Free lift	h2 mm	1822
	Lifting height	h3 mm	6800
	Maxim height(Fork height highest)	h4 mm	7794
	Fork height(lowerest)	h5 mm	86
	Height of handle in drive position (Max/Min)	h6 mm	1396/1136
	Overall length	L1 mm	2115
	Overall width	b1 mm	Side wheels closed 1057 Side wheels opened 1660
	Overall width	s/e/l mm	180/66/1150
	Fork dimensions	b2 mm	680
	Mimum ground clearance	m mm	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2529
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2595
	Turning radius	Wa mm	1688

Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Lift speed loaded/unloaded	mm/s	50/80
	Lowering speed loaded/unloaded	mm/s	125/80
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic

Motor	Drive motor rating	kw	AC 2.0
	Lift motor rating	kw	3
	Battery voltage / nominal capacity	V/Ah	24/210(210\240\280\300)
	Battery weight	kg	200\205\295\

Others	Type of drive control
Others	Noise	dB(A)	<70

	Mast specification
	Lifting height	Overall height(Mast lowerest)	Maxim height(mast extended)	Free lift
Triple masts	3600	1756	4116/4594	1160/762
	3900	1856	4416/4894	1260/862
	4200	1956	4716/5194	1360/962
	4500	2056	5016/5494	1460/1062
	4800	2156	5316/5794	1560/1162
	5100	2256	5616/6094	1660/1262
	5400	2356	5916/6394	1760/1362
	5700	2456	6216/6694	1860/1462
	6000	2556	6516/6994	1960/1562
	6300	2656	6816/7294	2060/1662
	6600	2756	7116/7594	2160/1762
	6800	2816	7296/7794	2240/1822
