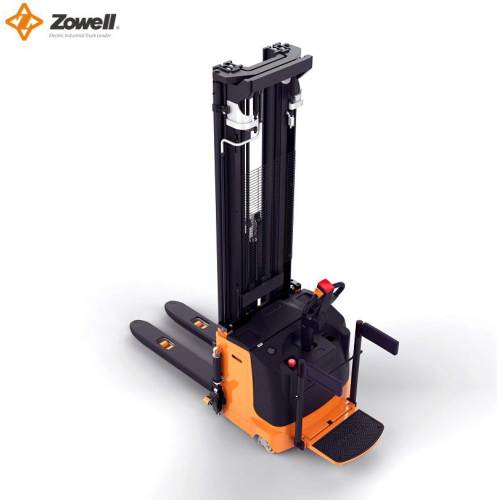

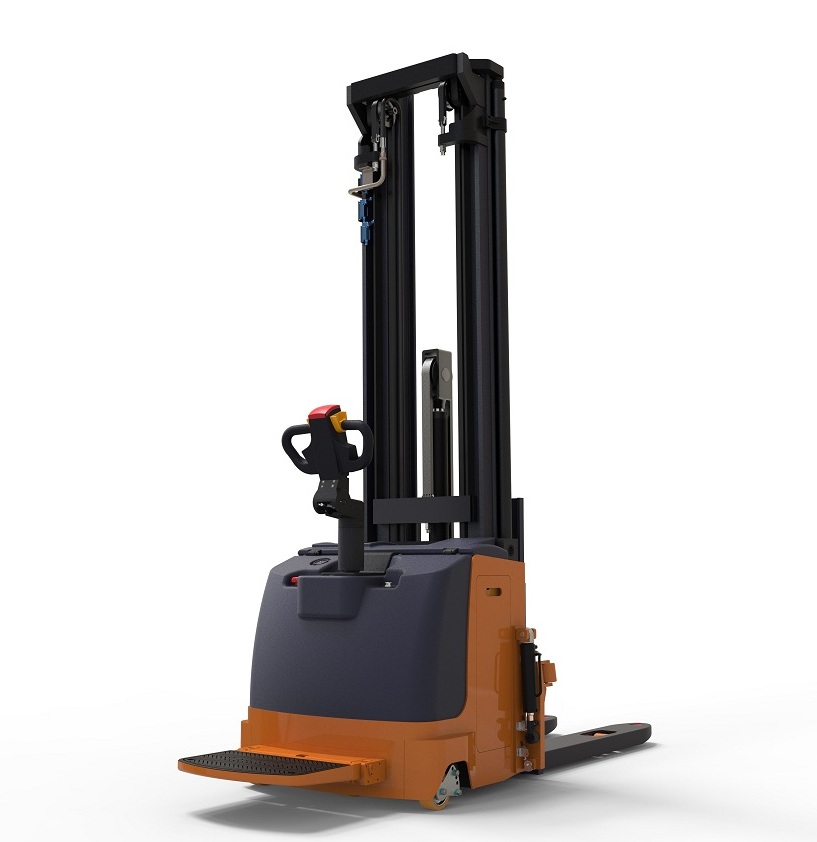

Zowell Electric Stacker with High Mast

Electric stacker is an industrial device for big material handling on a shelf at high level which differs from electric pallet truck and towing tractor. As an ideal choice to operate in narrow space of warehouse, XEH is equipped with high mast and support legs so it can lift goods higher than normal stackers. Compared with the traditional manual stacking, Zowell full electric stacker maintains great advantages in safety, efficiency and cost. In addition to durability and accuracy both outside and inside, Zowell XE electric stackers are also equipped with mast with clear view, double speed and lateral vertical moving switch, which are valuable when working in limited space.

EHA20 Technical data
Specification	Product model		EHA20
	Power supply		Electric
	Operating type		Standing on
	Load capacity	Q kg	2000
	Load center distance	C mm	600
	Load distance	X mm	455
	Wheelbase	Y mm	1392

Weight	Weight (without battery)	kg	1495
	Axle loading, loaded drive end / load end	kg	1299/2406
	Axle loading, unloaded drive end / load end	kg	1156/549

Wheels	Wheels		Polurethane
	Drive wheel	mm	Φ230×70
	Load weheel	mm	Φ80×70
	Tyre size Side balance wheel	mm	Φ125×50
	Side balance wheel	mm	Φ50×40
	Wheels quantity（Front/back/side）（x=drive wheel）		1x-2/4/2
	Front wheel distance	mm	800
	Back wheel distance	mm	390

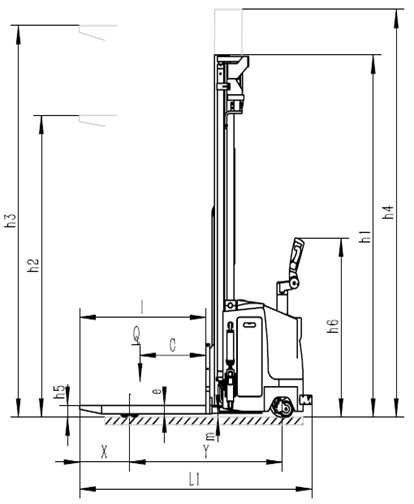

Dimension	Total height（fork height lowest)	h1 mm	2820
	Free lift	h2 mm	1733
	Lifting height	h3 mm	6800
	Maxim height(Fork height highest)	h4 mm	7794
	Fork height(lowerest）	h5 mm	86
	Height of handle in drive position (Max/Min)	h6 mm	1396/1136
	Overall length	L1 mm	2118
	Overall width	b1 mm	1186
	Fork dimensions	s/e/l mm	180/66/1150
	Fork width	b2 mm	570
	Mimum ground clearance	m mm	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2529
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2595
	Turning radius	Wa mm	1688

Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Lift speed loaded/unloaded	mm/s	50/80
	Lowering speed loaded/unloaded	mm/s	125/80
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic

Motor	Drive motor rating	kw	AC 1.5
	Lift motor rating	kw	4.5
	Battery voltage / nominal capacity	V/Ah	24/210(240\280\300)
	Battery weight	kg	205\295\300

Others	Type of drive control
Others	Noise	dB(A)	<70
