multi-directional forklift 2.5ton Reach Forklift

multi-directional forklift 2.5ton Reach Forklift

Get Latest Price

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE/ISO 9001
HS Code:	842710
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

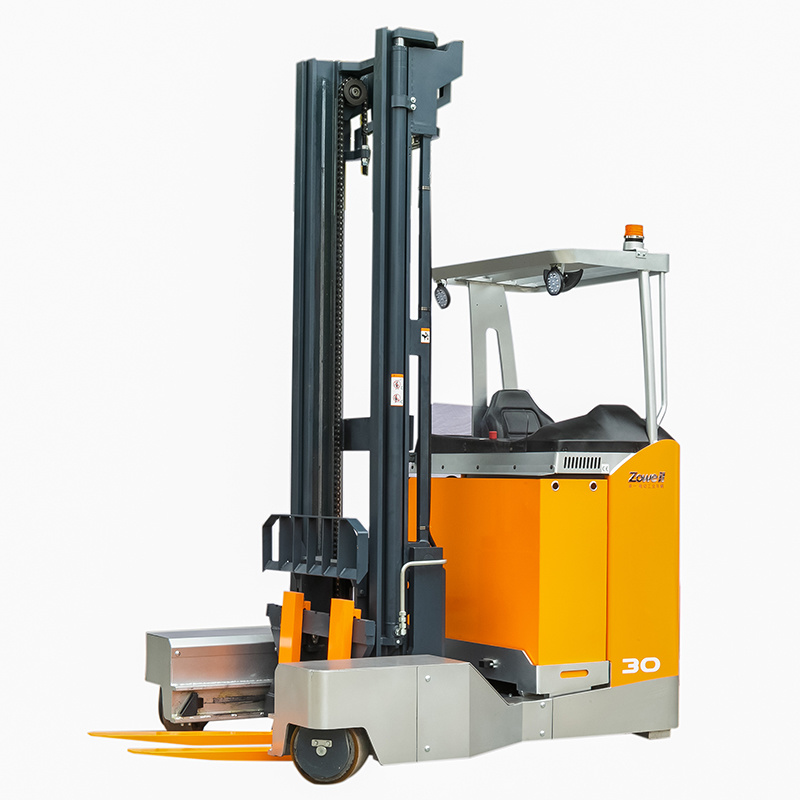

Zowell Multi-Directional Forklift has 3 Ton Multi-directional Forklift and 2.5 Ton Multi-directional Forklift load capacity and 10500mm maximum lift height. Like four-directional forklift, it is designed especially for long materials with length 3~10 meters. What's more, it has several driving mode, featured with high safety and flexibility in aluminium, glass, steel, furniture industries and etc. It is the Very Narrow Aisle Forklift for above industries.

Features

Four forks + wide fork
Fork length is optional, the maximum fork outer distance is 2300mm; it can be customized;
It is suitable for long cargos and fix goods length.
Advantages: low cost, simple structure, no additional aisle width.

Straight mode
Features: Drive single-wheel steering (the angle of the two front wheels remains unchanged, and the rear drive wheel controls the steering)
Application: In this mode, the function is the same as that of an ordinary reach truck.

Sidewalk mode
Features: Sideways driving (90° full wheel rotation)
Application: Long material handling and stacking in extremely narrow passages greatly increase storage capacity.

In-situ rotation mode
Features: 180° U-turn in place
Application: U-turn in the tunnel to improve handling efficiency.
All-wheel steering mode
Features: all-wheel independent steering

Application: Right-angle turning, cornering, obstacle avoidance.

Minimum right angle steering
Feature: Overturn of 90 with the smallest aisle width
Application: Turning in extremely narrow passages.

Manufacturer			ZOWELL
Model			RSEW120	RSEW125	RSEW130
Driving type			Sitting on
Load capacity	kg	Q	2000	2500	3000
Load center	mm	C	500	500	500
Self weight	kg		4300	4400	4500
Overhead guard height	mm	h6	2191	2191	2191
Overall width	mm	b1/b2	1628	1728	1728
Fork size	mm	L/e/s	40×100×920	45×100×920	45×125×920
Min ground clearance(Chassis)	mm	m2	80	80	80
Min turning radidus	mm	Wa	1210	1225	1225
Driving speed(Load /unload)	km/h		9/10	9/10	9/10
Braking			Electromagnetic brake	Electromagnetic brake	Electromagnetic brake
Gradeability(Load/unload)	%		10/15	10/15	8/15
Voltage/Capacity	V/Ah		48/560	48/560	48/600

Multi-Directional Forklift 3000kg Load Capacity Zowell Stacker Can Be Customized CE
