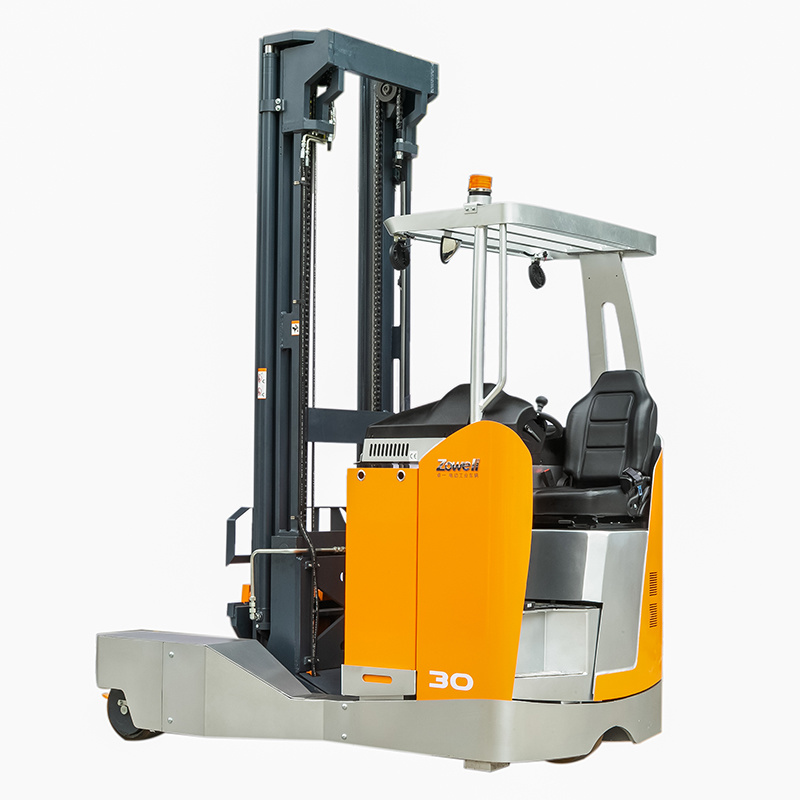

Zowell Full Directional Forklift for Long Materials

Zowell Full Directional Forklift for Long Materials

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW, CIP

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,CIP
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

Straight mode
Features: Drive single-wheel steering (the angle of the two front wheels remains unchanged, and the rear drive wheel controls the steering)
Application: In this mode, the function is the same as that of an ordinary reach truck.

Sidewalk mode
Features: Sideways driving (90° full wheel rotation)
Application: Long material handling and stacking in extremely narrow passages greatly increase storage capacity.

In-situ rotation mode
Features: 180° U-turn in place
Application: U-turn in the tunnel to improve handling efficiency.
All-wheel steering mode
Features: all-wheel independent steering

Application: Right-angle turning, cornering, obstacle avoidance.

Manufacturer			ZOWELL
Model			RSEW120	RSEW125	RSEW130
Driving type			Sitting on
Load capacity	kg	Q	2000	2500	3000
Load center	mm	C	500	500	500
Self weight	kg		4300	4400	4500
Overhead guard height	mm	h6	2191	2191	2191
Overall width	mm	b1/b2	1628	1728	1728
Fork size	mm	L/e/s	40×100×920	45×100×920	45×125×920
Min ground clearance(Chassis)	mm	m2	80	80	80
Min turning radidus	mm	Wa	1210	1225	1225
Driving speed(Load /unload)	km/h		9/10	9/10	9/10
Braking			Electromagnetic brake	Electromagnetic brake	Electromagnetic brake
Gradeability(Load/unload)	%		10/15	10/15	8/15
Voltage/Capacity	V/Ah		48/560	48/560	48/600
