Product Description

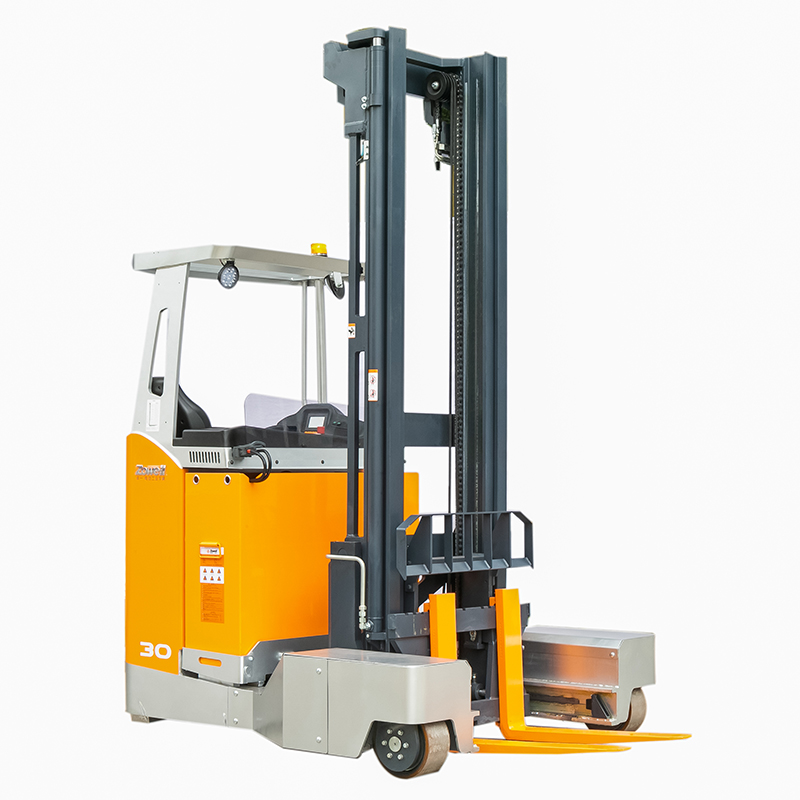

Multi- Directional Forklift 2500kg

Electric stacker, electric reach truck and pallet truck are often seen in handling of normal material in logistics and warehouse. However, users often feel embarrassed for counterbalanced forklift and stacker when handling long materials in narrow space. As one of VNA truck of Zowell forklift, RSEW multi-directional forklift which has oblique and translation functions is equipped with steering wheels display system and barking system to maximise safety. Compared with using normal forklifts, its storeable materials can have multipling growth.

Detail Features

Zowell multi-directional forklift is equipped with steering wheels display system and barking system to maximise safety.

Three wheel structure and imported controller ensures the best performance and stability.

Side entering the aisle with 10m long goods,required aisle width reduced by 66% higher.

Compared with using normal forklifts, its storeable materials can have multipling growth.

Equipped with electric powering steering function, the noise is lower. Not only improve the use time but also avoid the oil-leaking problem.

Technical Data

1.2	Manufacturer		Zowell	Zowell	Zowell	Zowell
1.3	Model		RSEW125/225	RSEW125S/225S	RSEW130	RSEW130S
1.4	Power supply		Electric	Electric	Electric	Electric
1.5	half closing sitting		half closing sitting	half closing sitting	half closing sitting	half closing sitting
1.6	Load capacity	Q(kg)	2500	2500	3000	3000
1.7	Load center	C(mm)	600	600	500	500
1.8	Wheelbase	y(mm)	1700	1700	1700	1700
2.1	Truck weight（Include battery）	kg	4300	4450	4300	4550
2.2	Battery weight（±5%）	kg	920	920	1020	1020
3.1	Tyres Front/Rear		Polyurethane (pu)	Polyurethane (pu)	Polyurethane (pu)	Polyurethane (pu)
3.2	Front load wheels（Diameter×Width）Single wheel	mm	φ300×135	φ300×135	φ300×135	φ300×135
3.3	Rear driving wheel（Diameter×width) Single wheel	mm	φ343×140	φ343×140	φ343×140	φ343×140
3.4	Wheel quantity Drive wgeel/Load wheel	pcs	1X/2	1X/2	1X/2	1X/2
3.5	Front wheels distance	b3(mm)	1392	1392	1392	1392
4.1	Lifting height	mm	2500-4500	4500-10000	2500-4500	4500-10000
4.2	Fork tilting front/rear	α/β(°)	2/4	2/4	2/4	2/4
4.3	Lifting height	h1(mm)	See attachment	See attachment	See attachment	See attachment
4.4	Overhead guard height	h5(mm)	2190	2190	2190	2190
4.5	Seat height/Operation platfom height	(mm)	1100/1350	1100/1350	1100/1350	1100/1350
4.6	Min groundcleance		32	32	32	32
4.7	Chassis groundcleance	h8(mm)	75	75	75	75
4.8	Balance leg height	h10(mm)	457	457	457	457
4.9	Overall length（include fork）	l1(mm)	2444	2496	2294	2346
4.10	Overall width	b1(mm)	1728	1728	1728	1728
4.11	Fork size	l/e/s(mm)	1070/100/45	1070/100/45	920/125/45	920/125/45
4.12	Rear Chassis width	b2(mm)	1230	1230	1230	1230
4.13	Fork width	b5(mm)	355-880	355-880	380-880	380-880
4.14	Shelf width	b7(mm)	870	870	870	870
4.15	Min turning radidus	Wa(mm)	1952	1952	1952	1952
4.16	Minimum radius of turn in situ（When b5 = 880 mm）	（mm）	1279	1304	1225	1235
4.17	Minimum turning aisle width(right Angle)	（mm）	2100	2100	2100	2100
4.18	Minin aisle width when side moving Pallet 3000×1000×1000()（C=500mm）	（mm）	2580	2630	2580	2630
5.1	Driving speed Loaded/unloaded	km/h	8/10	8/10	8/10	8/10
5.2	Lifting speed Loaded/Unloaded	mm/s	200/370	200/370	200/370	200/370
5.3	Lowering speed Loaded/unloaded	mm/s	210/170	210/170	210/170	210/170
5.4	Gradeability Loaded/unloaded	%(tanθ )	8/15	8/15	7/15	7/15
5.5	Brake		electric	electric	electric	electric
5.6	Park		electric	electric	electric	electric
6.1	Driving motor type		AC	AC	AC	AC
6.2	Driving motor(S2-60min) AC	kw	8	8	8	8
6.3	Lifting motor type		AC	AC	AC	AC
6.4	Lifting motor，(S3-15%)	kw	12.5	12.5	15	15
6.5	Steering motor type		AC	AC	AC	AC
6.6	Steering motor	kw	0.7	0.7	0.7	0.7
6.7	Battery voltage/capacity	V/Ah	48/490/560	48/490/560	48/600	48/600
8.1	Video display		Wireless camera	Wireless camera	Wireless camera	Wireless camera
8.2	Four forks + wide fork holder		customizable	customizable	customizable	customizable
8.3	Fork Positioner		customizable	customizable	customizable	customizable
8.4	AGV		customizable	customizable	customizable	customizable

Product Display
Multi-directional Forklift
