Customized Electric Paper Roll Pallet Truck

Customized Electric Paper Roll Pallet Truck

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO
HS Code:	8427109000
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

Customized Electric Paper Roll Pallet Truck

Are you still worried about the difficulty of handling coil or roll materials and fatigue when using a manual pallet truck? In this situation we recommed XPK special pallet truck designed for roll handling. Equipped with advanced AC electronic controller, durable framework and other practical device, operating efficiency and safety will been grearly improved. Just leave a message to zowell about the roll materials and we will find the best solution for you.

Detail Features

1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. Multi-functional electronic controller
4. Germany Frei handle 3-5 Ton Electric Towing Head
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8.Five points structure brings the truck more stability

Technical data

Identification	Product model		XPK30-2
	Power supply		Electric
	Operating type		Standing or Pedestrian
	Load capacity	Q Kg	3000
	Load center distance	C mm	750
	Load distance	X mm	182
	Wheelbase	Y mm	1850
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ230x75
	Type size load end	mm	Φ80x70
	Balancing wheel size	mm	Φ100x40
	Wheels number (x=drive wheel) drive end/load end		1x-2/4
Dimensions	Lowered mast height	h1 mm	1350
	Lift height	h3 mm	205
	Forks height,lowered	h5 mm	85
	Height of handle in drive position (Max/Min)	h6 mm	1200/985
	Overall length	L1 mm	2070
	Length to face of forks	L2 mm	620
	Overall width	b1 mm	1165
	Fork dimensions (Forging)	s/e/l mm	175/65/1450
	Forks width	b3 mm	1165
	Minimum ground clearance	m mm	30
	Turning radius	Wa mm	2100
Performance	Travel speed loaded/unloaded	km/h	5.4/6
	Lift speed loaded/unloaded	mm/s	40/50
	Lowering speed loaded/unloaded	mm/s	50/40
	Max gradeability loaded/unloaded	%	8/15
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.1
	Lift motor rating	kW	2.2
	Battery voltage / nominal capacity	V/Ah	24/240
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<70

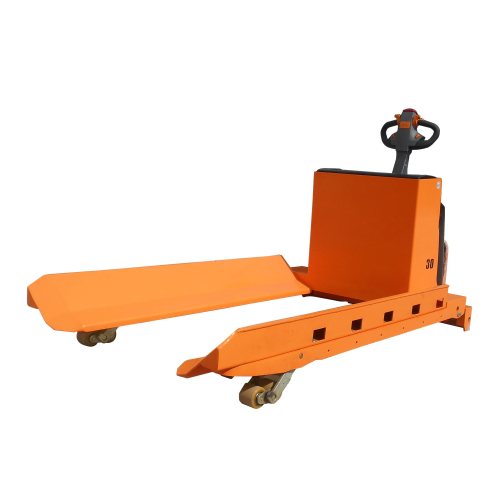

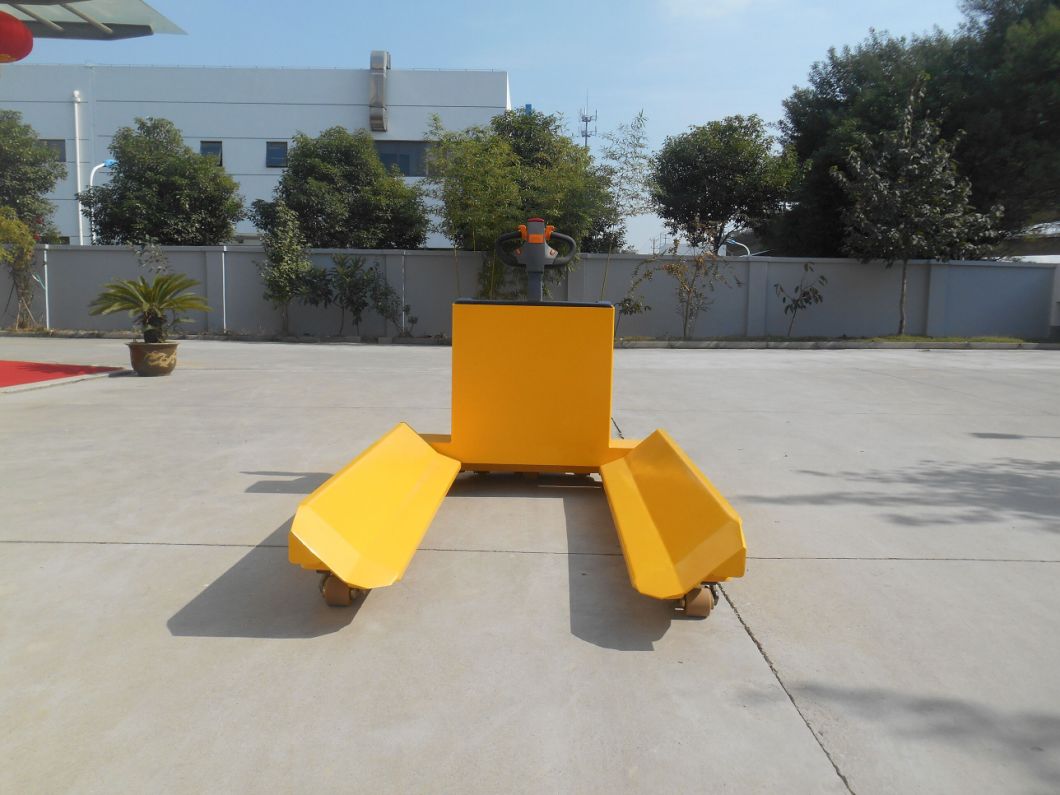

Product Display paper roll
