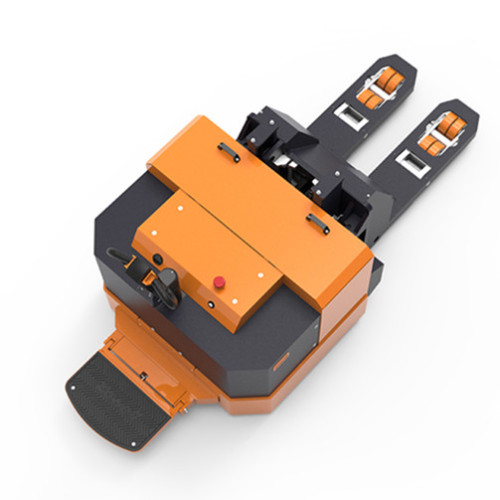

Electric heavy duty pallet truck

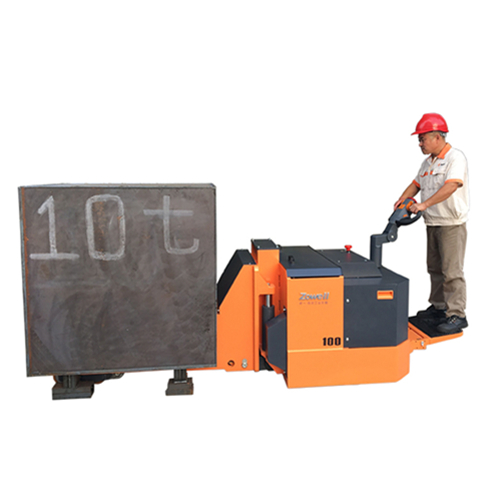

Zowell 10-12 Ton Electric Pallet Truck is a Customized Material Handling Equipment designed for heavy machine or materials on pallet. The length and width can be customized according to size of pallet and mateirals. Foldable platform and electric power steering provides excellent performance of this Electric Pallet Jack. Zowell also provides Electric Towing Tractor for transportation between warehouse and factory.

Detail features
1. Electronic control system
The electronic control system used by this truck is sensitive, ensuring a high reliability. There are optional controller selections, including Cutris, ZAPI or standard controller system.

2. Regenerative braking
The regenerative braking control system can transform and store the kinetic energy during braking, thus saving energy. This also increases the endurance mileage, reduces brake pad wear and reduces the failure rate and usage costs.

3. Multifunctional handle from FREI, Germany
The multifunctional handle is imported from Germany. The operators can control the moving speed easily through the use of the handle, which is equipped with an emergency reverse button. This effectively protects the operator against injury in the event of an accident. The handle can achieve braking in both vertical and horizontal positions, thus improving the tugger safety.

4. Emergency reversing button on the handle
This truck can carry out emergency reversing. During the backward movement, once the back of the operator touches something, the operator will naturally hit the reverse button on the handle with their body. The truck will then immediately reverse, thus protecting the operator against injury.

5. Emergency power-off switch
The power can be rapidly cut off in an emergency to ensure safety.

6. Electric power steering system (EPS)

Compared with the traditional mechanical steering, EPS helps the driver with turning by using an electronic control device to produce auxiliary power at a relative level and direction according to the torque signal and speed signal. This makes operation by the driver more convenient and precise, so that movement is stable and reliable.

Technical Data
