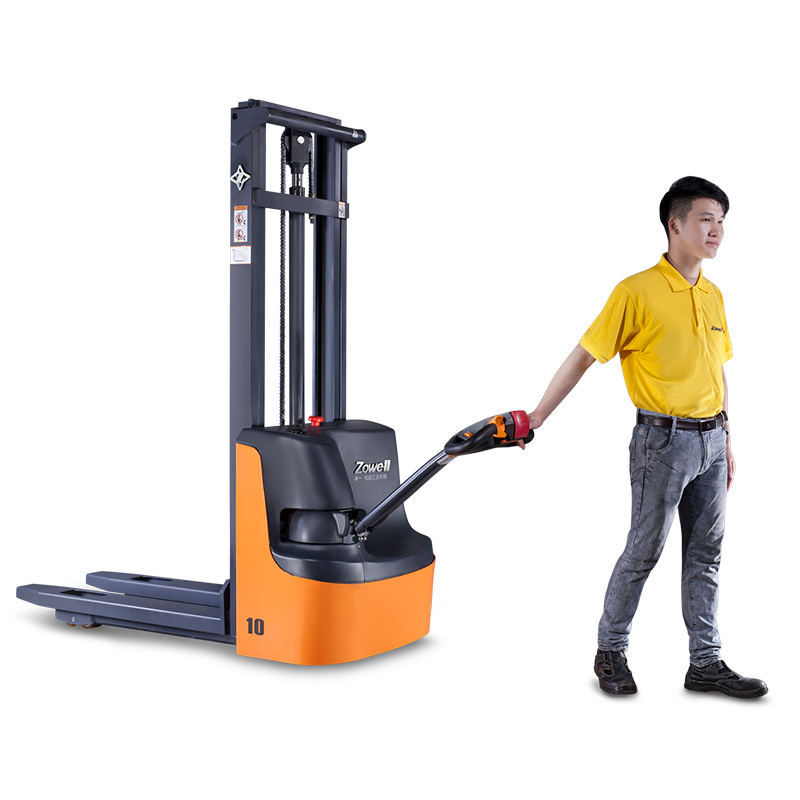

zowell electric stacker 1 ton

$3100.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE
HS Code:	842710
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

This Battery For Electric Stacker has Lateral vertical moving, the Electric Stacker Truck can move without pulling the handle. By pressing down the straight moving button, the Power Stacker Lift can move slowly. This is suitable for working in narrow aisles and other limited spaces.

Identification	Product model			XEA10
	Power supply			Electric
	Operating type			Pedestrian
	Load capacity		Q Kg	1000
	Load center distance		C mm	600
	Load distance		X mm	357
	Wheelbase		Y mm	1202
Weight	Weight(without battery)		Kg	530
	Axle loading,unloaded drive end / load end		Kg	400/130
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ210×70
	Type size load end		mm	Φ80×70
	Balancing wheel size		mm	Φ125×60
	Wheels number (x=drive wheel) drive end/load end			1x-1/4
	Tread width drive end		mm	481
	Tread width load end		mm	400
Dimensions	Height data is on the bottom - Height data choices
	Height with mast closed		h1 mm	See Height Data Choices
	Free Lift		h2 mm
	Forks lift height		h3 mm
	Height with mast extended		h4 mm
	Forks height, lowered		h5 mm	2000
	Height of handle in drive position (Max/Min)		h6 mm	1305/1136
	Overall length		L1 mm	1756.2
	Length to face of forks		L2 mm	606.2
	Overall width		b1 mm	606.2
	Fork dimensions		s/e/l mm	160/61/1150
	Forks width		b3 mm	560
	Min. ground clearance		m mm	30
	Aisle width for pallets 800x1200 lengthways		Ast mm	2244
	Turning radius		Wa mm	1400
Performance	Travel speed loaded/unloaded		km/h	4/4.5
	Lift speed loaded/unloaded		mm/s	100/150
	Lowering speed loaded/unloaded		mm/s	130/100
	Max gradeability loaded/unloaded		%	5/8
	Service brake			Electromagnetic Brake
Electric Motor	Drive motor rating		kW	0.65
	Lift motor rating		kW	2.2
	Battery voltage / nominal capacity		V/Ah	12V/100AH
	Battery weight		Kg	N/A
Others	Type of drive control			Mosfet control
	Noise level at operator's ear		dB(A)	<70

Height Data Choices
Model	Mast type	Forks lift height		Height with mast closed	Free Lift	Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)	h4 (mm)
	Dual	2500		1750	/	2957
	Dual	3000		2000	/	3457
	Dual	3300		2150	/	3757

1,What is the pallet type?

Single Faced Pallet

2,What is the HS code?

HS Code：8427102000

3,What is its certificate?

CE/ISO90001
