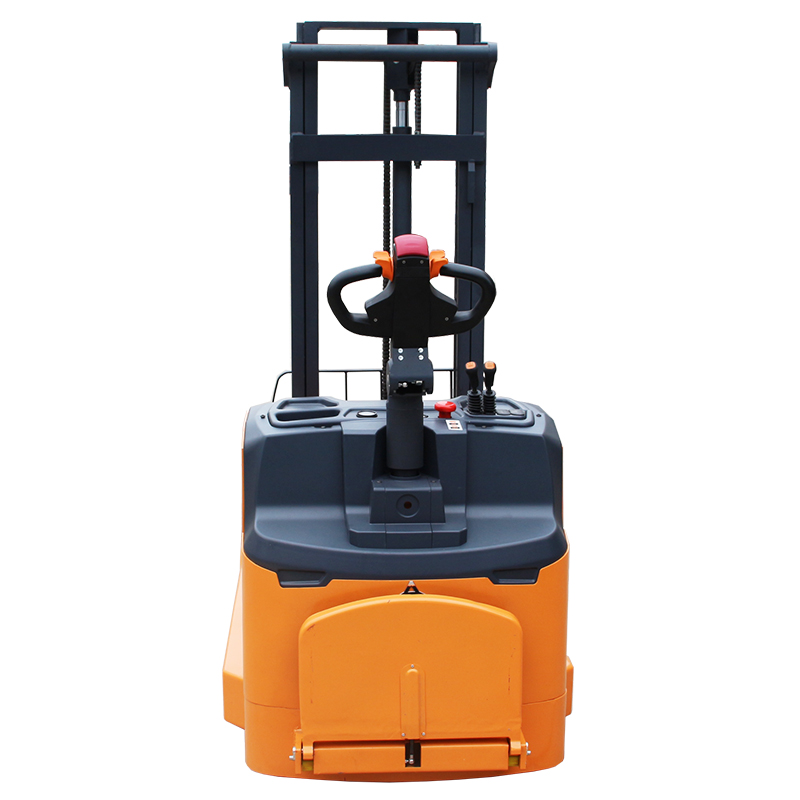

Zowell 1 Ton electric reach stacker

Introduction

Reach stacker is an industrial material handling equipment, which refers to the forward moving wheel type vehicle which carries out loading and unloading, stacking and short distance transportation of the good by pallets. They are usually battery driven and used for transportation of large goods. The electric reach stacker/truck combines the advantages of counterbalance electric forklift and stacking truck, which has the characteristics of environmental protection, energy saving, low noise, high lifting and working in limited space.

Technical Data

Product model		XR10
Power supply		Electric
Operating type		Standing
Load capacity	Q Kg	1000
Load center distance	C mm	500
Load distance	X mm	395
Wheelbase	Y mm	1302
Weight (without battery)	Kg	1211
Axle loading, loaded drive end / load end	Kg	950/1710
Axle loading, unloaded drive end / load end	Kg	1035/425
Tyres		Polyurethane
Tyre size drive end	mm	Φ230x75
Type size load end	mm	Φ210x85
Balancing wheel size	mm	Φ125x60
Wheels number (x=drive wheel) drive end/load end		1x-1/2
Tread width drive end	mm	646
Tread width load end	mm	903
Height data is on the bottom — Height data choices
Forks height,lowered	h5 mm	30
Height of handle in drive position (Max/Min)	h6 mm
Overall length	L1 mm	2243
Length to face of forks	L2 mm	1055
Overall width	b1 mm	980
Fork dimensions (Forging)	s/e/l mm	100/30/1070
Forks width	b3 mm	200-640
Reach length	L3 mm	530
Minimum ground clearance	m mm	55
Aisle width for pallets 1000x1200 lengthways	Ast mm	2150
Aisle width for pallets 800x1200 lengthways	Ast mm	2140
Turning radius	Wa mm	1567
Inside width between the guides	b4 mm	718
Travel speed loaded/unloaded	km/h	4.8/5.6
Lift speed loaded/unloaded	mm/s	90/120
Lowering speed loaded/unloaded	mm/s	125/80
Max gradeability loaded/unloaded	%	5/8
Service brake		Electromagnetic
Drive motor rating	kW	1.5(AC)
Lift motor rating	kW	2.2
Battery voltage / nominal capacity	V/Ah	24/210
Battery weight	Kg	249
Type of drive control		MOSFET Control
Noise level at operator’s ear	dB(A)	<70

Height Data Choices
Model	Mast type	Lift	Height with mast closed	Free Lift	Height with mast Extended
		h3 (mm)	h1 (mm)	h2 (mm)	h4 (mm)
XR10	Dual	2500	1750	0	3308
XR10	Dual	3000	2000	0	3808
XR10	Dual	3300	2150	0	4108
