reach truck forklift crown

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

Model: NO. FRA15

Condition: New

Tyres: Polyurethane

Overall Length: 2370mm

Length of Chasis: 1860mm

Overall Width :1090mm

Fork Length: 1070mm

Reach Length :600mm

Aisle Width for Pallets :2575mm

Turning Radius： 1700mm

Service Brake Electromagnetic

Type of Drive Control Mosfet Control

Trademark :zowell

Transport Package Wooden Pallet

Origin:Suzhou, China

HS Code:8427109000

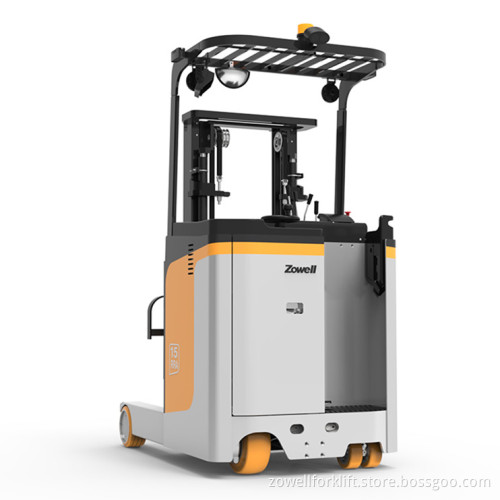

Electric Reach Truck

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional

Technical data - FRA15/18
Identification
1.1	manufacturer			ZOWELL
1.2	Model			FRA15	FRA18
1.3	Power supply			Electric	Electric
1.4	Driving type			Standing on	Standing on
1.5	Load capacity	kg	Q	1500	1800
1.6	Load center	mm	C	500	500
1.7	Front overhang(Mast reach in/Mast reach out )	mm	x	385/175	565/175
1.8	Wheel base	mm	y	1345	1525
Weight
2.1	Self weight(With battery)	kg		2400	2400
2.2	Alex unload(Front/Rear)-fork back	kg		1600/800	1600/800
2.3	Alex loaded(Front/Rear)-fork out	kg		3390/510	3390/510
2.4	Alex loaded(Front/Rear)-fork back	kg		2500/1400	2500/1400
Wheel
3.1	Tyres			Polyurethane	Polyurethane
3.2	Drive wheel size	mm		Φ330x145	Φ330x145
3.3	Balance wheel size	mm		Φ178x73	Φ178x73
3.4	Load wheel size	mm		Φ254x120	Φ254x120
3.5	Wheels qty			2/1X+2(X=driven)	2/1X+2(X=driven)
3.6	Tread, front	mm		977	977
3.7	Tread, rear	mm		634	634
Dimensions
4.1	Tilting degree (Front/Rear)	deg	α/β	3/5	3/5
4.2	Overall height(mast lowerest height)	mm	h1	1995	1995
4.3	Free lift height	mm	h2	105	105
4.4	Lift height	mm	h3	3000	3000
4.5	Mast extended height	mm	h4	3900	3900
4.6	Overhead guard	mm	h6	2250	2250
4.7	platform height	mm	h7	312	312
4.8	Overall length(with fork)	mm	L1	2230	2410
4.9	Distance to forkface	mm	L2	1160	1160
5	Overall width	mm	b1/b2	1081/1093	1081/1093
4.11	Fork size	mm	L/e/s	35×100×1070	35×100×1070
4.12	Fork carriage standard			ISO-2328 2B	ISO-2328 2B
4.13	Cargo fork width	mm	b3	720	720
4.14	Fork width(Min/Max)	mm	b5	200/720	200/720
4.15	Inside width of front leg	mm	b4	739	739
4.16	Reach distance	mm	L4	560	740
4.17	Minimum height above ground	mm	m1	75	75
4.18	Minimum frame height above ground	mm	m2	75	75
4.19	Aisle width:1000*1200	mm	Ast	2642	2699
4.2	Aisle width:1200*800	mm	Ast	2512	2602
4.21	Min turning radidus	mm	Wa	1582.5	1758
4.22	Overall length	mm	L7	1675	1855
Performance
5.1	Drive speed(Loaded/unloaded)	km/h		9.5/10.5	9.5/10.5
5.2	Lift speed(Loaded/unloaded)	mm/s		330/350	330/350
5.3	Lower speed(Loaded/unloaded)	mm/s		360/420	360/420
5.4	Move Speed	mm/s		60	60
5.5	Grade ability (Loaded/unloaded) KB3'1.5km/h	%		10/14.3	10/14.3
5.6	Parking type			machanical disc	machanical disc
Electric Motor
6.1	Driving motor KB60'	kw		6.5	6.5
6.2	Lifting motor 15%ED	kw		12.5	12.5
6.3	Turning motor	kw		0.3	0.3
6.4	Battery voltage/capacity	V/Ah		48/280	48/280
6.5	Battery weight	kg		450	450
6.6	Battery size	mm		956×375×570	956×375×570
Others
7.1	Controller type			MOS-FET inverter	MOS-FET inverter
7.2	working pressure	bar		130-178	130-178
7.3	Oil capacity	l/min		16	16
7.4	Noise	dB		69-75	69-75
