Basic Info

Product Description

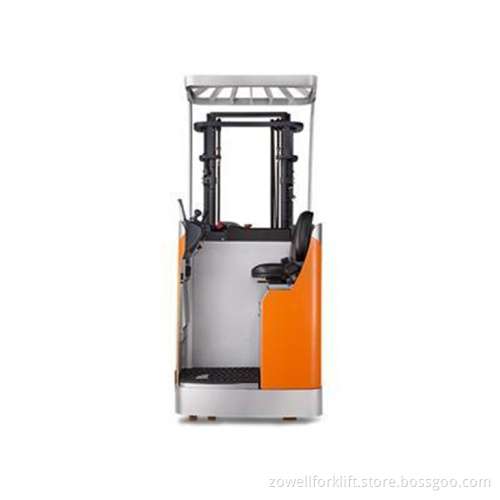

Electric Stacker 1.5 (Side-facing seated positon)

With EPS function
AC Curtis controller
840 hou meter

CFE15 Electric Stacker
Identification	1	Product Model		CFE15
	2	Power supply		Electric
	3	Driving type		Standing on/Sitting on
	4	Rated Load capacity	Q kg	1500
	5	Load center	C mm	600
	6	Back overhang	X mm	205
	7	Wheelbase	Y mm	1551

Weight	1	Self weight(Without battery)	kg	1355
	2	Axle loading, loaded drive end/load end	kg	/
	3	Axle loading, unloaded drive end/load end	kg	1062/543

Wheels	1	Wheels	mm	Polyurethane
	2	Driving wheel size	mm	Φ230×80
	3	Load wheel size	mm	Φ80×70
	4	Balancing wheel size	mm	Φ125×50
	5	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	6	Tread width drive end	mm	390
	7	Tread width load end	mm	551.5

Dimensions	1	Lowered mast height	h1 mm	See attached table
	2	Free lift	h2 mm
	3	Lifting height	h3 mm
	4	Extended mast height	h4 mm
	5	Fork height(lowerest)	h13 mm	86
	6	Overhead guard height	h6 mm	2168
	7	Over length	L1 mm	2203
	8	Length to face of forks	L2 mm	1053
	9	Over width	b1 mm	920
	10	Fork size	s/e/l mm	180/66/1150
	11	Fork width	b5 mm	570
	12	Min ground clearance	m2 mm	30
	14	Aisle width for pallets,800X1200(fork along side 1200) a=200	Ast mm	2594
	15	Turning Radius	Wa mm	1756

Performance	1	Travel speed loaded/unloaded	km/h	6.5/7.5
	2	Lift speed loaded/unloaded	mm/s	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80
	4	Max gradeability loaded/unloaded	%	5/8
	5	Service brake		Electromagnetic

Electric Motor	1	Drive motor rating	kw	AC 2
	2	Lift motor rating	kw	2.2
	3	Battery voltage / nominal capacity	V/Ah	24/280
	4	Battery weight	kg	250

Others	1	Type of drive control		MOSFET Control
Others	2	Noise level at operator's ear	dB(A)	<70
