CE Electric Reach Truck Can Be Customized

CE Electric Reach Truck Can Be Customized

$15000.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	400PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

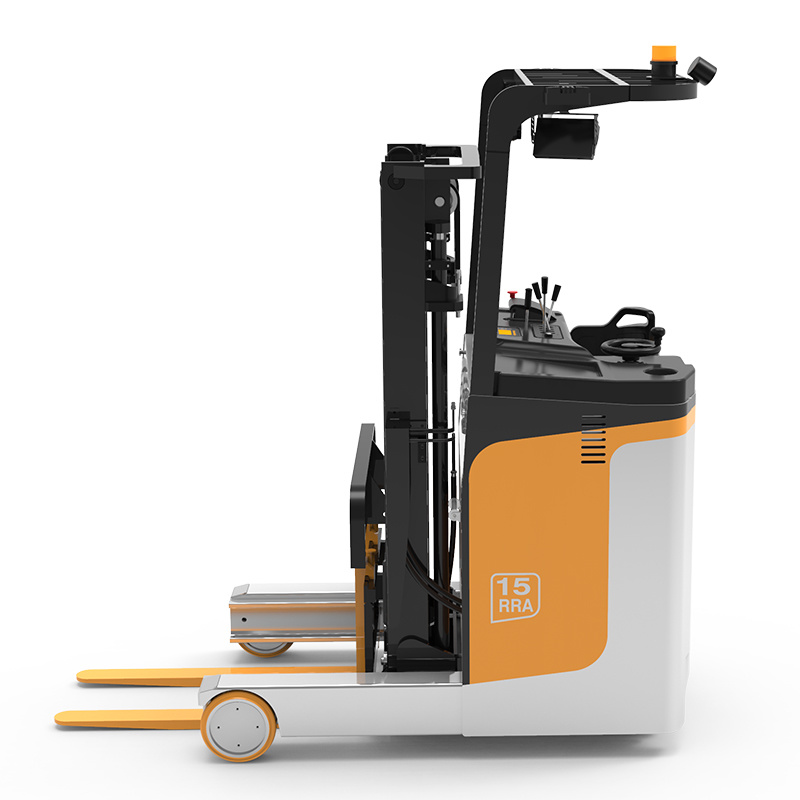

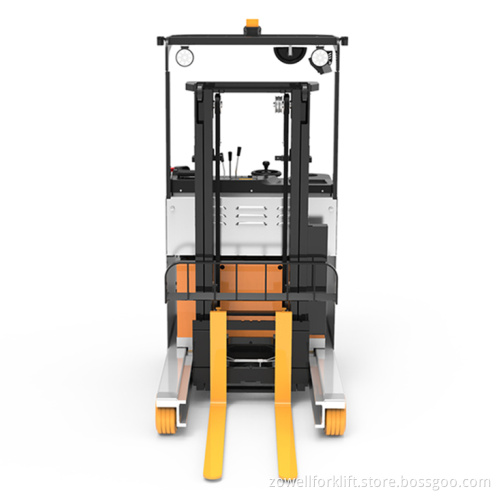

Zowell 1.8 Ton Electric Reach Stacker Operation in confined space. 2636mm aisle width is enough for its working-Supper Low and non-slip step makes operation more convenient and safe. Abundant storage space such as cup holder and file folder,makes the forklift more hunmanized. Smart Instrument shows all the running status of Electric Tow Truck
like the driving wheel position, battery level,error code,etc.Thrust replacement for battery makes Electric Straddle Stacker
easy to keep maintenance. Multi-valve operation with hydraulic level can achieve accurate control.

Model		FRA15
Power supply		Electric
Driving type		Standing on
Load capacity	t	1.5
Load center	mm	500
Front overhang(Mast reach in/Mast reach out )	mm	385/175
Wheel base	mm	1345
Turning type		EPS
Self weight(With battery)	kg	2400
Tyres size		Polyurethane
Drive wheel size	mm	Φ330x145
Balance wheel size	mm	Φ178x73
Load wheel size	mm	Φ254x120
Wheels qty		2x1x2
Tread, front	mm	977
Tread, rear	mm	645
Tilting degree (Front/Rear)	deg	3/5
Overall height(mast lowerest height)	mm	1995
Free lift height	mm	105
Lift height	mm	3000
Mast extended height	mm	3900
Overhead guard	mm	2250
Leg height	mm	273
Overall length(with fork)	mm	2081
Overall length(without fork)		1676
Distance to forkface	mm	1161
Overall width	mm	1093
Fork size	mm	35x100x920
Fork carriage standard		ISO-2328 2B
Fork width(Min/Max)		200/720
Inside width of front leg	mm	739
Reach distance	mm	560
Ground clearance	mm	87
Aisle width:1000*1200	mm	2642
Aisle width:1200*800	mm	2512
Min turning radidus	mm	1577
Drive speed(Loaded/unloaded)	km/h	9.5/10.5
Lift speed(Loaded/unloaded)	mm/s	310/540
Lower speed(Loaded/unloaded)	mm/s	500/550
Grade ability (Loaded/unloaded)		10/14.3
Parking type		machanical disc
Turning motor	kw	0.3
Driving motor	kw	6.5
Lifting motor	kw	8
Battery voltage/capacity	V/Ah	48/280
Battery weight	kg	495
Battery size	mm	956375570
Controller type		MOS-FET inverter
Oil capacity	l/min	16
Noise	dB	70

CE Electric Reach Truck with 7.5m Lifting Height Hot Sale Can Be Customized
