Product Description

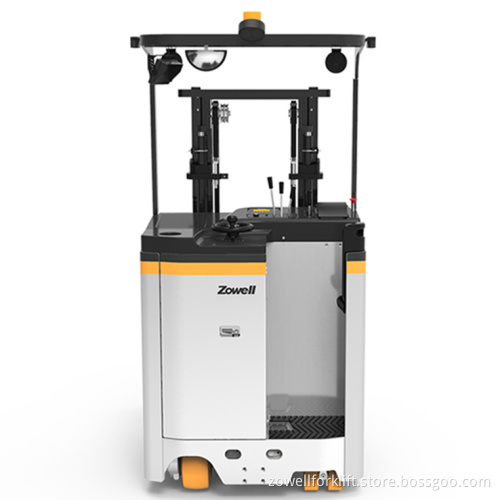

New Electric Reach Truck with 7.5 M

FRA electric reach truck take a different new design compared with XR reach stacker. The operator can stand on pedal which surrounded by control system for more safety and efficiency in this Electric Reach Forklift. The forged reach fork reduced the aisle width needed to adapt warehouse with various aisle. Full AC control and side-pull design battery greatly improved experience both operation and maintenance. Handling, lifting, reaching, FRA covers a wide range of work in your warehouse as Walkie Rider, Power Stacker Lift did.

Main Features

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional

Technical Data

Identification	Product model		FR16
	Power supply		Electric
	Operating type		Standing
	Load capacity	Q Kg	1600
	Load center distance	C mm	500
	Load distance	X mm	400
	Wheelbase	Y mm	1440
Weight	Weight (without battery)	Kg	2440
	Axle loading, Mast unextended, loaded drive end / load end	Kg	1510/2530
	Axle loading, Mast extended, loaded drive end / load end	Kg	545/3495
	Axle loading, unloaded drive end / load end	Kg	1640/800
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ345×140
	Type size load end	mm	Φ250×85
	Balancing wheel size	mm	Φ175×75
	Wheels number (x=drive wheel) drive end/load end		1x+1/2
	Tread width drive end	mm	665
	Tread width load end	mm	990
Dimensions	Height data is on the bottom _ Height data choices
	Lowered mast height	h1 mm	2050
	Free lift	h2 mm	150
	Lift height	h3 mm	3000
	Extended mast height	h4 mm	3695
	Height of overhead guard	h5 mm	2250
	Platform height	h6 mm	300
	Min ground clearance Mast	M1 mm	100
	Min ground clearance Chasis	M2 mm	80
	Overall length	L1 mm	2370
	Length to face of forks	L2 mm	1300
	Length of chasis	L3 mm	1860
	Overall width	b1 mm	1090
	Fork dimensions (Forging)	s/e/l mm	100/40/1070
	Forks width	b3 mm	250-760
	Reach length	L4 mm	600
	Min ground clearance Mast	M1 mm	100
	Min ground clearance Chasis	M2 mm	80
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2575
	Aisle width for pallets 800x1200 lengthways	Ast mm	2705
	Turning radius	Wa mm	1700
	Fork tilting degree (forward/backward)	a/b °	3/5
	Inside width between the guides	b2 mm	800
Performance	Travel speed loaded/unloaded	km/h	10.5/10.5
	Lift speed loaded/unloaded	mm/s	400/460
	Lowering speed loaded/unloaded	mm/s	520/500
	Mast reaching speed loaded/unloaded	mm/s	150/150
	Max gradeability loaded/unloaded	%	10/10
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	6
	Lift motor rating	kW	9.2
	Battery voltage / nominal capacity	V/Ah	48/400
	Battery weight	Kg	690
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<75
