Zowell ISO9001 Electric Forklift

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100PCS
Supply Ability:	100PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

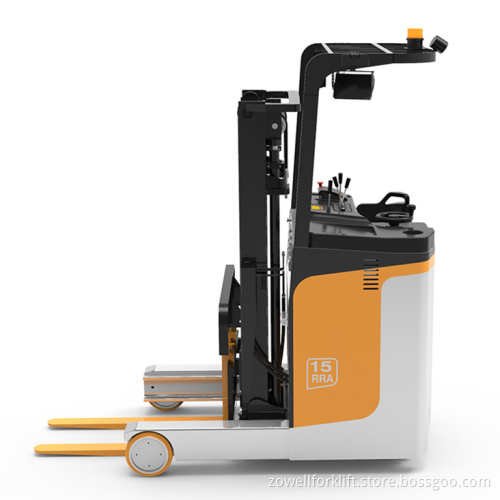

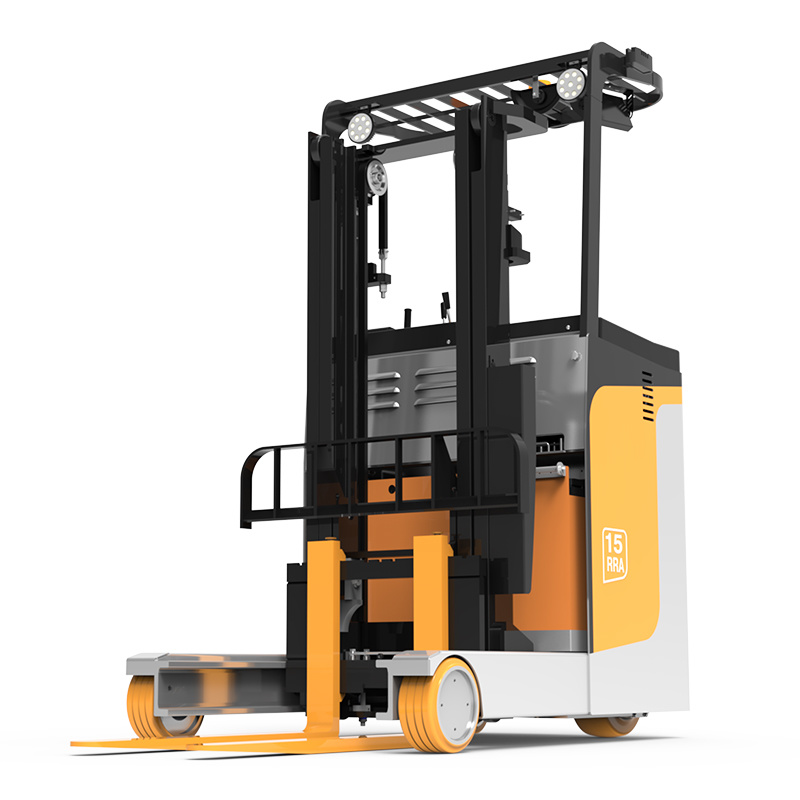

13. Side shift is optional Electric Reach Truck

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional

Technical data
Manufacrurer							Zowell
	S.N	Description					Model
	S.N	Description					FE20	FE25	FE30	FE35
Specification	1.1	Power Supply					Electric	Electric	Electric	Electric
	1.2	Operation type					Sitting on	Sitting on	Sitting on	Sitting on
	1.3	Rated load capacity			G	kg	2000	2500	3000	3500
	1.4	Load center			C	mm	500	500	500	500
	1.5	Front overhang			X	mm	460	460	474	479
	1.6	Wheel Base			L1	mm	1520	1520	1620	1620
	2.1	Total weight				kg	3700	4180	5100	5350
	2.2	Axle	Load(Front/Rear)			kg	5016/684	5920/760	7290/810	7965/885
	2.3	Axle	Unload(Front/Rear)			kg	1628/2072	1780/2400	2450/2650	2420/2930
Tyres/Chassis	3.1	Tyres					Pneumatic	Pneumatic	Pneumatic	Pneumatic
	3.2	Tyres	Front Tyres				23×9-10-16PR	23×9-10-16PR	23×9-10-16PR	23×10-12
	3.3	Tyres	Rear tyres				18×7-8-14PR	18×7-8-14PR	18×7-8-14PR	18×7-8-14
	3.4	Tyres quantity	Front tyres(x=Drive tyres)				2x	2x	2x	2x
	3.5	Tyres quantity	Rear tyres				2	2	2	2
	3.6	Front Wheel distance-Front			W1	mm	1039	1039	1039	1057
	3.7	Wheel distance-Rear			W2	mm	989	989	989	989
Height	4.1	Tilting(Front/Rear)			α/β	Grad	5/10	5/10	5/10	5/10
	4.2	Lifting height			H	mm	3000	3000	3000	3000
	4.3	Free lift height			H1	mm	150	150	155	160
	4.4	Mast height	Mast closed		H2	mm	2055	2055	2055	2175
	4.5	Mast height	Mast extended		H3	mm	3973	3973	4067	4072
	4.6	Overhead guard height			H4	mm	2140	2140	2140	2140
	4.7	Seat height			H5	mm	1100	1100	1100	1100
	4.8	Hitch pin height			H6	mm	290	290	290	290
	4.9	Overall length	With fork		L	mm	3414	3414	3540	3545
	4.10	Overall length	Without fork		L'	mm	2344	2344	2470	2475
	4.11	Overall width	with Dashboard width		W	mm	1265	1265	1265	1300
	4.12	Overall width	Chassis width		W'	mm	1190	1190	1190	1190
	4.13	Fork size(Length×width×thickness)			l×w×t	mm	1070×120×40	1070×120×40	1070×125×45	1070×125×50
	4.14	Fork carriage standard					ISO2328 2A	ISO2328 2A	ISO2328 3A	ISO2328 3A
	4.15	Fork carriage width			W3	mm	1040	1040	1100	1100
	4.16	Fork width	Min		W4	mm	240	240	250	250
	4.17	Fork width	Max		W5	mm	1040	1040	1100	1100
	4.18	Ground clearance	Mast	Unload/Load	H7	mm	125/110	125/110	125/110	125/110
	4.19	Ground clearance	Chassis width	Middle of Chassis	H8	mm	120	120	120	120
	4.20	Aisle width		1000×1200 pallet horizontal ways	AST	mm	3745	3745	3975	3980
	4.21	Aisle width		800×1200 pallet horizontal ways	AST	mm	3945	3945	4160	4165
	4.22	Turning Radidus	Min inside		Wa	mm	2090	2090	2210	2210
	4.23	Turning Radidus	Min outside		r	mm	110	110	110	110
Performance	5.1	Max Drive speed(Unload)				km/h	15	15	15	15
	5.2	Max Lift speed(Loaded)				mm/s	250	250	250	250
	5.3	Lowering speed(Load/Unload)				mm/s	≤600	≤600	≤600	≤600
	5.4	Gradeability(Load/unload)				%	15	15	15	15
	5.5	Max pulling force for hook(load)				N	14000	18000	23000	23000
	5.6	Braking type					Hydraulic	Hydraulic	Hydraulic	Hydraulic
	5.7	Parking type					Mechanical	Mechanical	Mechanical	Mechanical
Electric Parts	6.1	Driving motor				kW	12AC	12AC	15AC	15AC
	6.2	Lifting motor				kW	12AC	12AC	12AC	12AC
	6.3	Battery voltage/capacity				V/Ah	48/500	48/500	80/500	80/500
	6.4	Battery weight				kg	930	930	1510	1510
	6.5	Battery box size(Length×width×height)			l×b×h	mm	970×570×730	970×570×730	970×670×730	970×670×730
	6.6	Energy consumption					5.0	5.8	6.5
	6.7	Min battery weight				kg	740	740	1200	1200
	6.8	Max battery weight				kg	1075	1075	1550	1550
Others	6.1	Controller type					MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
	6.2	Controller brand					ZAPI	ZAPI	ZAPI	ZAPI
	6.3	Controller model					ACE2	ACE2	ACE3+ACE2	ACE3+ACE2
	6.4	Hydraulic pressure				Mpa	17.5	17.5	20	20
	6.6	Noise				dB	72	72	72	72
	6.8	Hydraulic oil amount				liter	28	28	38	38
