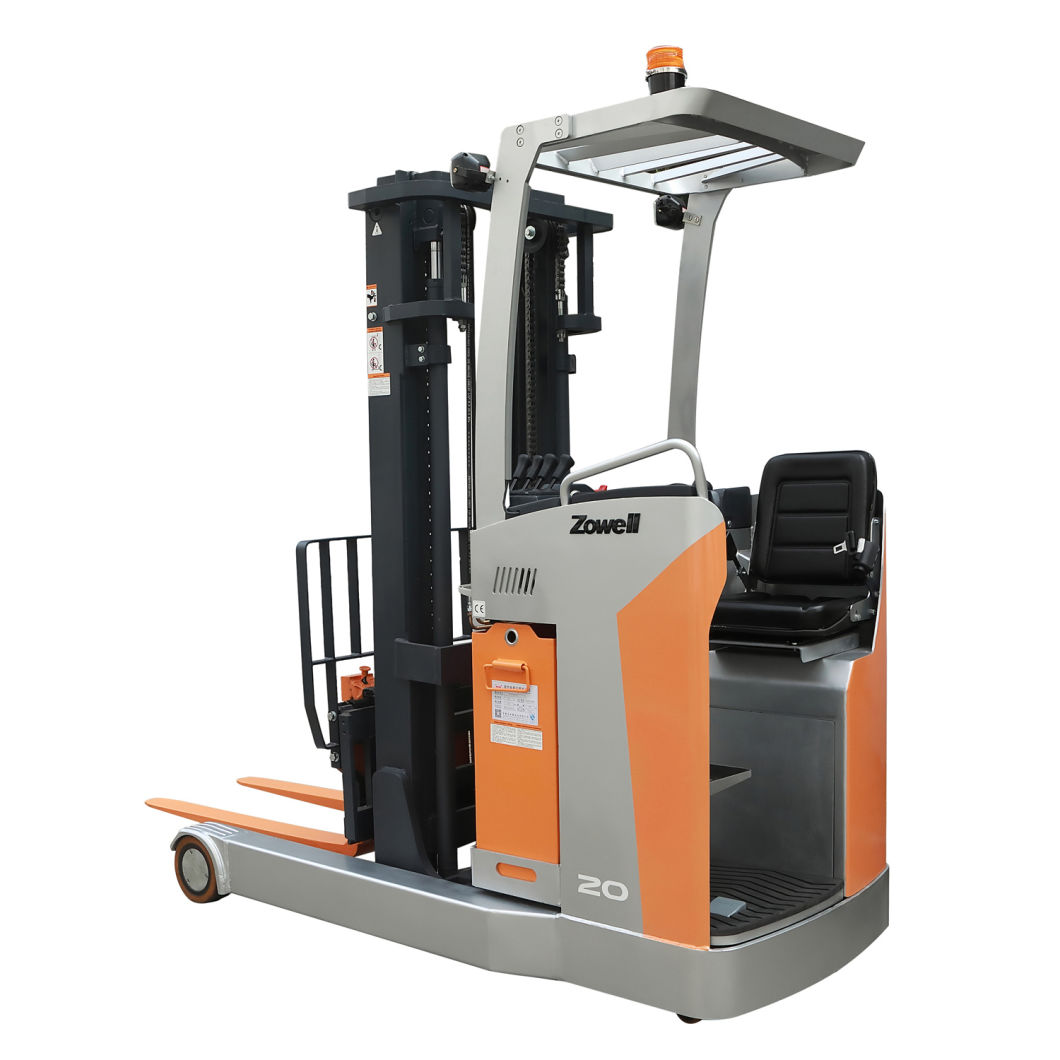

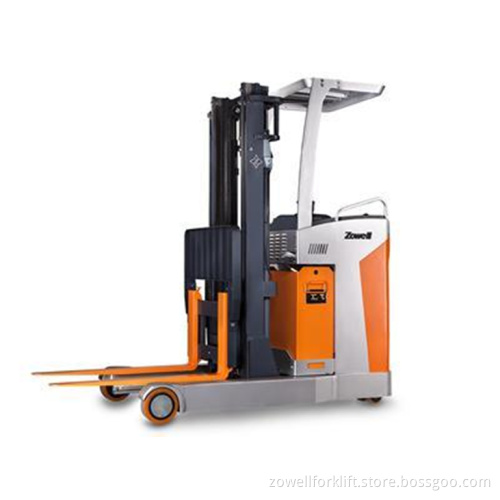

Electric Stacker 1.5 (Side-facing seated positon)

Model NO. CFE15 Condition

New Certificate Ce, ISO9001

Trademark Zowell

Transport Package Wooden Pallet

Specification CE, ISO9001, SGS

Origin Jiangsu, China

HS Code 8427102000

With EPS function
AC Curtis controller
840 hou meter

CFE15 Electric Stacker
Identification	1	Product Model		CFE15
	2	Power supply		Electric
	3	Driving type		Standing on/Sitting on
	4	Rated Load capacity	Q kg	1500
	5	Load center	C mm	600
	6	Back overhang	X mm	205
	7	Wheelbase	Y mm	1551

Weight	1	Self weight(Without battery)	kg	1355
	2	Axle loading, loaded drive end/load end	kg	/
	3	Axle loading, unloaded drive end/load end	kg	1062/543

Wheels	1	Wheels	mm	Polyurethane
	2	Driving wheel size	mm	Φ230×80
	3	Load wheel size	mm	Φ80×70
	4	Balancing wheel size	mm	Φ125×50
	5	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	6	Tread width drive end	mm	390
	7	Tread width load end	mm	551.5

Dimensions	1	Lowered mast height	h1 mm	See attached table
	2	Free lift	h2 mm
	3	Lifting height	h3 mm
	4	Extended mast height	h4 mm
	5	Fork height(lowerest)	h13 mm	86
	6	Overhead guard height	h6 mm	2168
	7	Over length	L1 mm	2203
	8	Length to face of forks	L2 mm	1053
	9	Over width	b1 mm	920
	10	Fork size	s/e/l mm	180/66/1150
	11	Fork width	b5 mm	570
	12	Min ground clearance	m2 mm	30
	14	Aisle width for pallets,800X1200(fork along side 1200) a=200	Ast mm	2594
	15	Turning Radius	Wa mm	1756

Performance	1	Travel speed loaded/unloaded	km/h	6.5/7.5
	2	Lift speed loaded/unloaded	mm/s	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80
	4	Max gradeability loaded/unloaded	%	5/8
	5	Service brake		Electromagnetic

Electric Motor	1	Drive motor rating	kw	AC 2
	2	Lift motor rating	kw	2.2
	3	Battery voltage / nominal capacity	V/Ah	24/280
	4	Battery weight	kg	250

Others	1	Type of drive control		MOSFET Control
Others	2	Noise level at operator's ear	dB(A)	<70
