7.2m Lifting Height Electric Reach Truck Be Customized

7.2m Lifting Height Electric Reach Truck Be Customized

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

Model NO.:FRC15

Lift height:3m-7.2m

Condition:New

Tyres:Polyurethane

Overall Length:2370mm

Length of Chasis:1860mm

Overall Width:1090mm

Fork Length;1070mm

Reach Length:600mm

Aisle Width for Pallets:2575mm

Turning Radius:1700mm

Service Brake:Electromagnetic

Type of Drive Control:Mosfet Control

Trademark:zowell

Origin:Suzhou, China

HS Code:8427109000

Basic information
Type: FRC15/20
Load: 1500/2000 kg
Max lifting height: 5500 mm
Fork length: 1070 mm
HS code: 8427109000
Certificate: CE/SGS/ISO9001

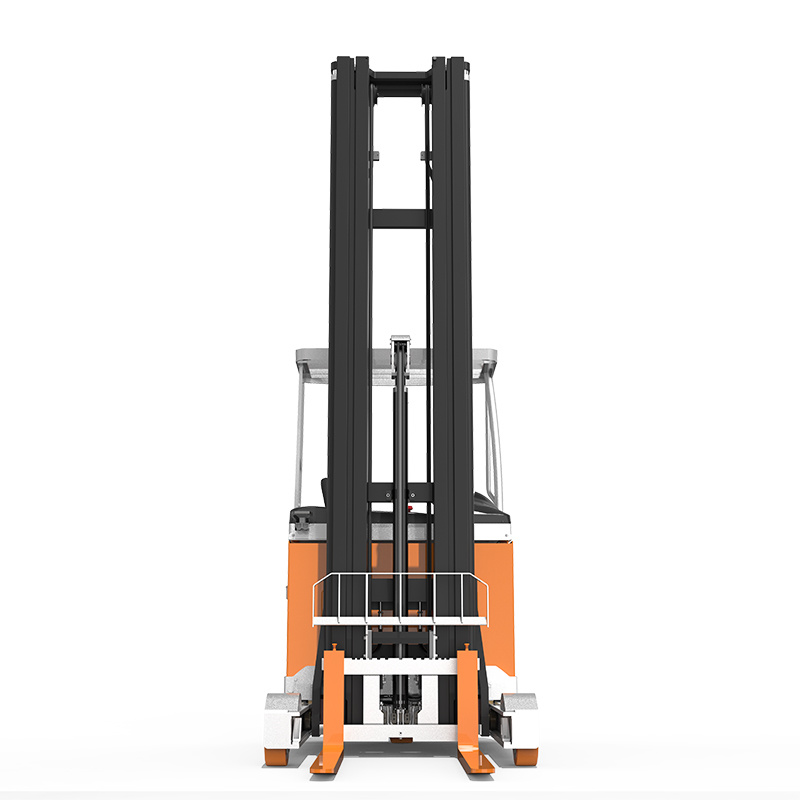

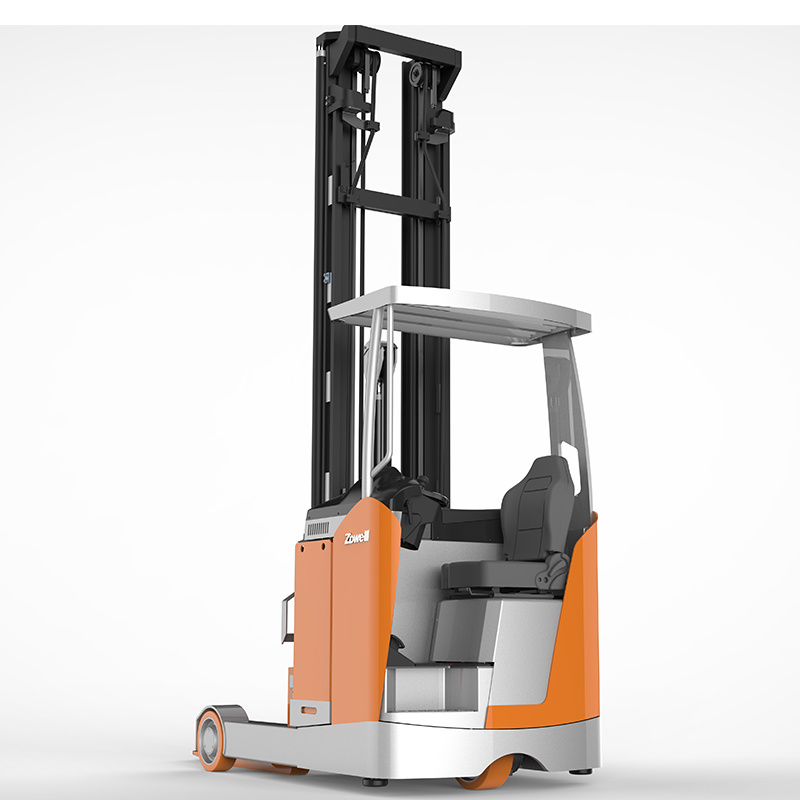

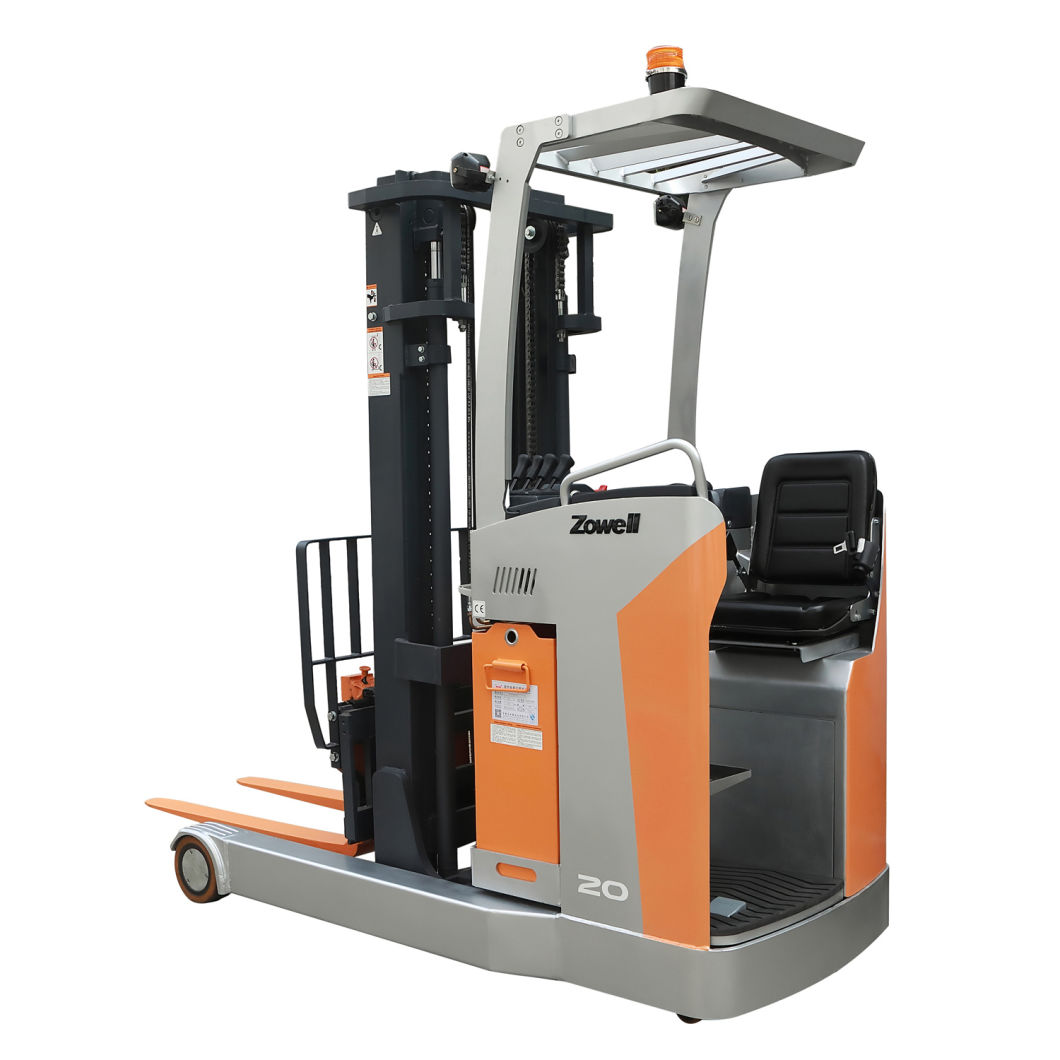

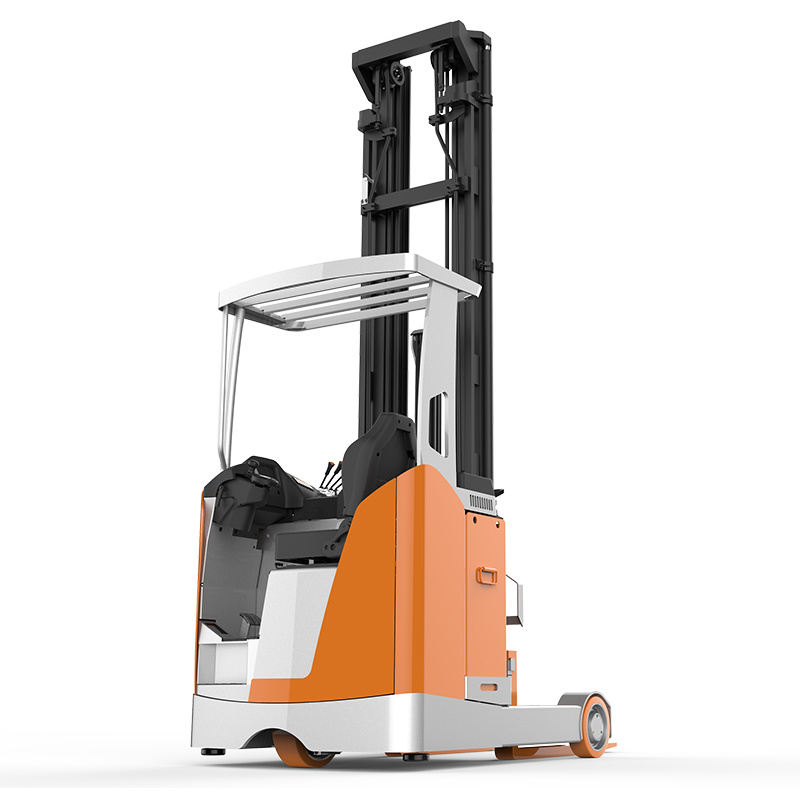

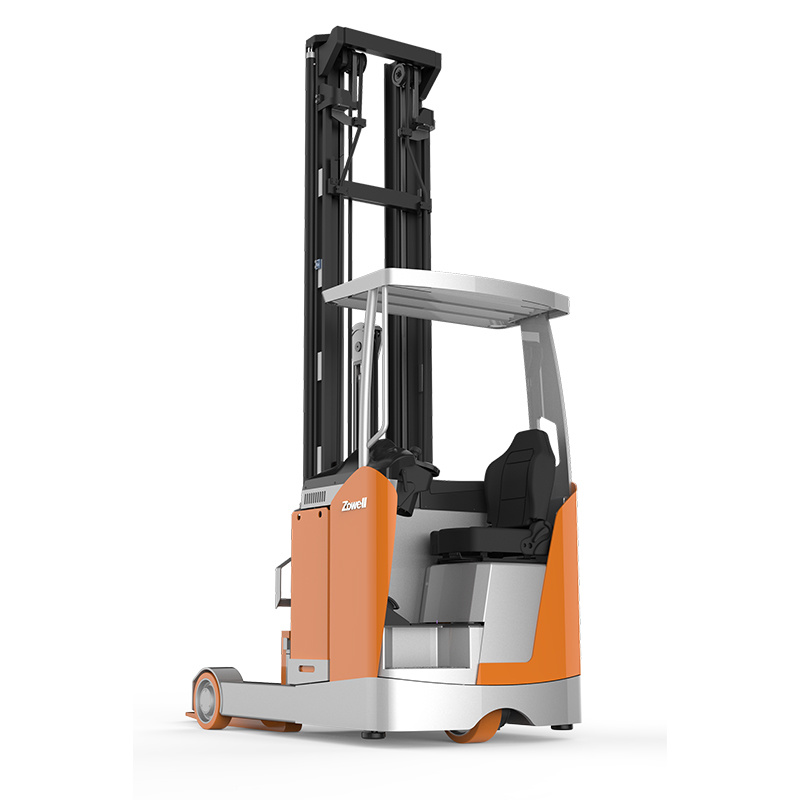

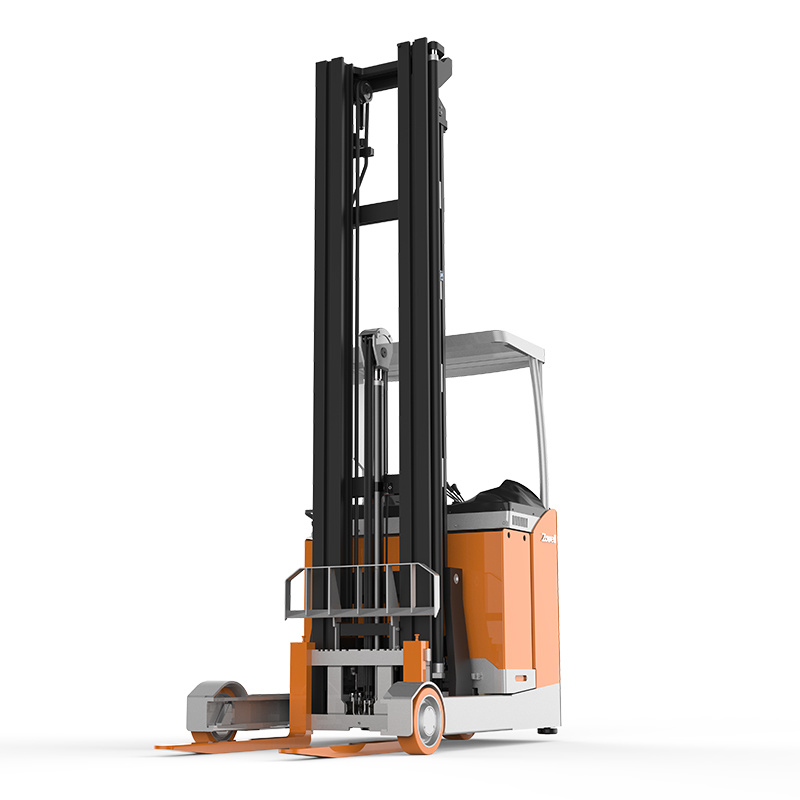

Electric Reach Truck

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.

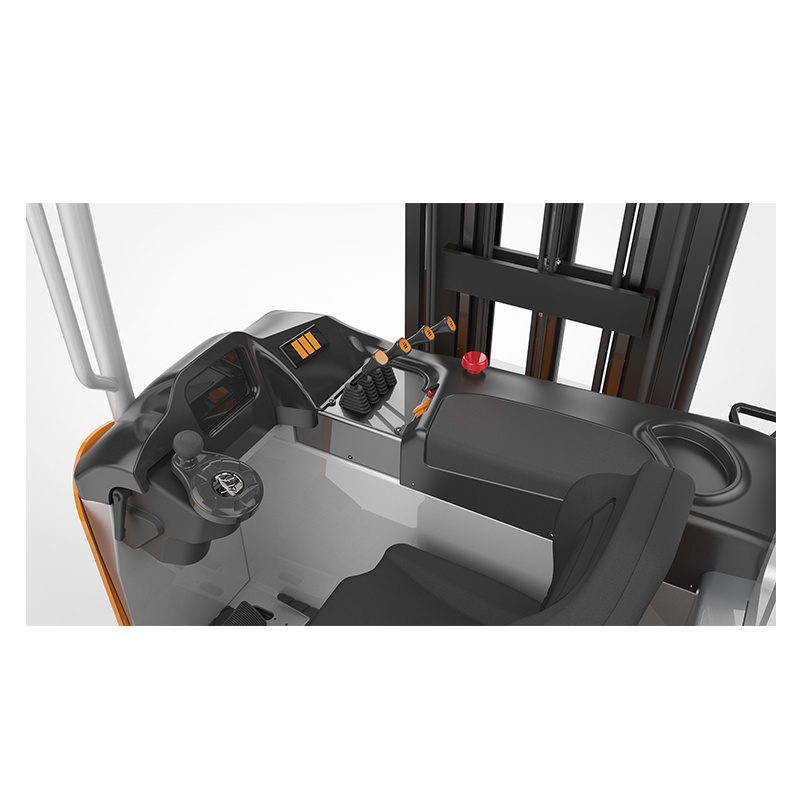

2. Multi-function display: battery state, hour meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.

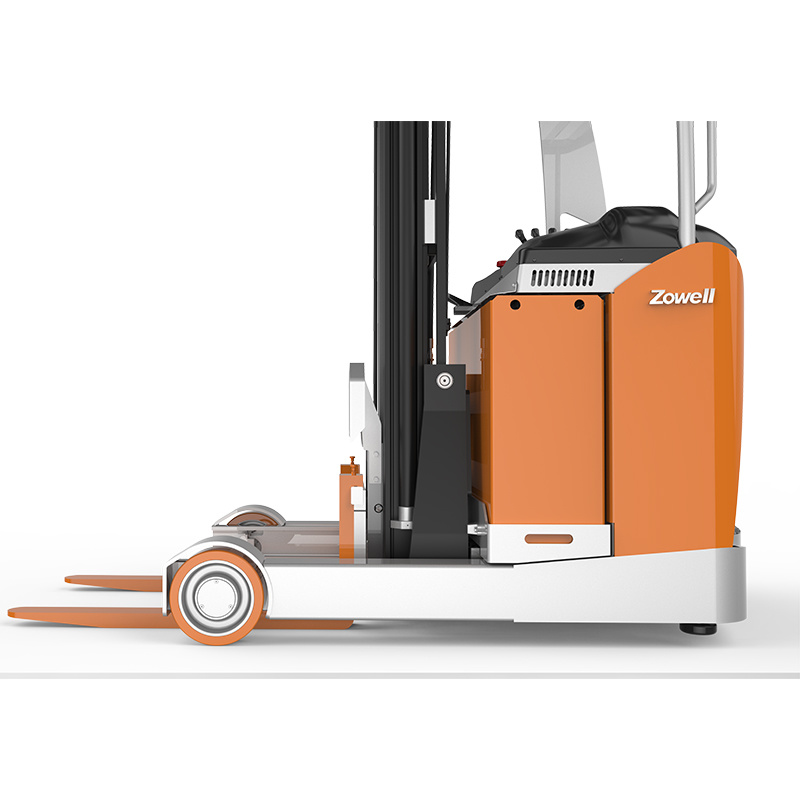

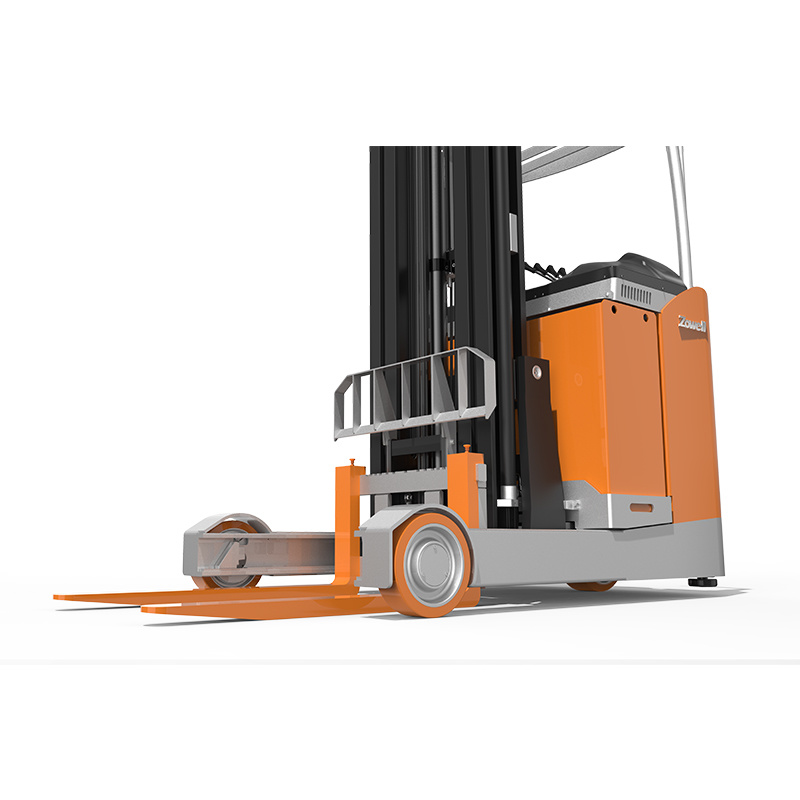

5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional

Identification	Product model		FR16
	Power supply		Electric
	Operating type		Standing
	Load capacity	Q Kg	1600
	Load center distance	C mm	500
	Load distance	X mm	400
	Wheelbase	Y mm	1440
Weight	Weight (without battery)	Kg	2440
	Axle loading, Mast unextended, loaded drive end / load end	Kg	1510/2530
	Axle loading, Mast extended, loaded drive end / load end	Kg	545/3495
	Axle loading, unloaded drive end / load end	Kg	1640/800
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ345×140
	Type size load end	mm	Φ250×85
	Balancing wheel size	mm	Φ175×75
	Wheels number (x=drive wheel) drive end/load end		1x+1/2
	Tread width drive end	mm	665
	Tread width load end	mm	990
Dimensions	Height data is on the bottom _ Height data choices
	Lowered mast height	h1 mm	2050
	Free lift	h2 mm	150
	Lift height	h3 mm	3000
	Extended mast height	h4 mm	3695
	Height of overhead guard	h5 mm	2250
	Platform height	h6 mm	300
	Min ground clearance Mast	M1 mm	100
	Min ground clearance Chasis	M2 mm	80
	Overall length	L1 mm	2370
	Length to face of forks	L2 mm	1300
	Length of chasis	L3 mm	1860
	Overall width	b1 mm	1090
	Fork dimensions (Forging)	s/e/l mm	100/40/1070
	Forks width	b3 mm	250-760
	Reach length	L4 mm	600
	Min ground clearance Mast	M1 mm	100
	Min ground clearance Chasis	M2 mm	80
	Aisle width for pallets 1000x1200 lengthways	Ast mm	2575
	Aisle width for pallets 800x1200 lengthways	Ast mm	2705
	Turning radius	Wa mm	1700
	Fork tilting degree (forward/backward)	a/b °	3/5
	Inside width between the guides	b2 mm	800
Performance	Travel speed loaded/unloaded	km/h	10.5/10.5
	Lift speed loaded/unloaded	mm/s	400/460
	Lowering speed loaded/unloaded	mm/s	520/500
	Mast reaching speed loaded/unloaded	mm/s	150/150
	Max gradeability loaded/unloaded	%	10/10
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	6
	Lift motor rating	kW	9.2
	Battery voltage / nominal capacity	V/Ah	48/400
	Battery weight	Kg	690
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<75
