Electric Straddle Truck Pallet Stacker 1.5t

Electric Straddle Truck Pallet Stacker 1.5t

$4000.00 - $6000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

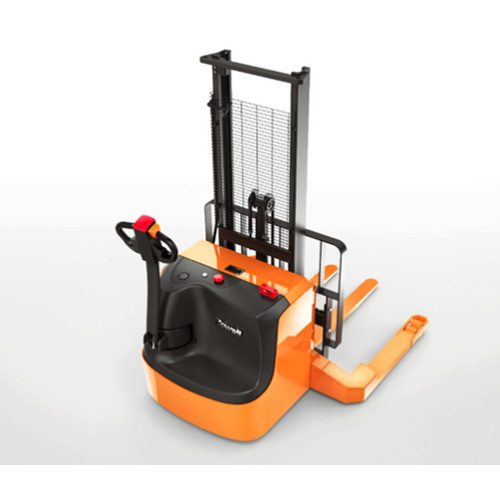

Electric Straddle Truck Pallet Stacker 1.5t

Zowell XEBK portable pedestrian-operated electric straddle stacker is equipped with a clear-view mast and comfortable handle which looks like the one on XPC 1.5t electric pallet jack. The maximum lifting height of this model is 4500mm and keeps good load capacity at height. Compared with electric counterbalanced forklift, electric reach truck, this model is more suitable to use in limited space. Logistic information

Logistic information

1. Model with lifting height range 1.6m-3.5m,4.2m,4.5m,4.8m,5.0m

Container loading Qty: 5pcs/20FCL,11pcs/40FCL

Technical Data

EBK15 Electric Straddle Stacker
Identification	1	Product Model		EBK15
	2	Driving type		Electric
	3	Operation type		Pedestrain
	4	Rated loading capacity	Q kg	1500
	5	Load distance	X mm	404
	6	Load center	C mm	600
	7	Wheelbase	Y mm	1398

Weight	1	Self weight（without battery）	kg	1038



Wheels	1	Tyres		Polurethane
	2	Tyre size drive wheel	mm	Φ230×82
	3	Tyre size load wheel	mm	Φ80×70
	4	Tyre size Balance wheel	mm	Φ125×50
	5	Wheels qty（front/rear）（x=drive wheel）		1x-1/4
	6	Tread width drive end	mm	555
	7	Tread width load end	mm	1390

Basic size	1	Total height（Fork lowerest)	h1 mm	Table 1
	2	Free lifting height	h2 mm
	3	Lifting height	h3 mm
	4	Maximum height（Fork extended）	h4 mm
	5	Forks height, lowered	h5 mm	35
	6	Height of handle in drive position (Max/Min)	h6 mm	1305/715
	7	Overall length	L1 mm	1999
	8	Length to face of forks	L2 mm	930
	9	Inside width at the end of leg	b2 mm	1270
	10	Overal width	b1 mm	1510
	11	Fork size	s/e/l mm	100/35/1070
	12	Fork width	b3 mm	200-800
	13	Minimum ground clearance	m mm	20
	14	Aisle width for pallets 1000x1200 lengthways	Ast mm	2556
	15	Turning radidus	Wa mm	1595

Performance	1	Driving speed Load/unload	km/h	4/4.5
	2	Lifting speed Load/unload	mm/s	85/130
	3	Lowering speed Load/unload	mm/s	85/100
	4	Maximum gradeability Load/unloaded	%	5/10
	5	Service brake		Electromagnetic

Motor	1	Driving motor rating	kw	1.5
	2	Lifting motor rating	kw	2.2
	3	Battery voltage/Capacity	V/Ah	24/210(210\240\280)
	4	Battery weight	kg	200\205\295

Others	1	Control type		MOSFET Control
Others	2	Noise level	dB(A)	<70
