Product Description

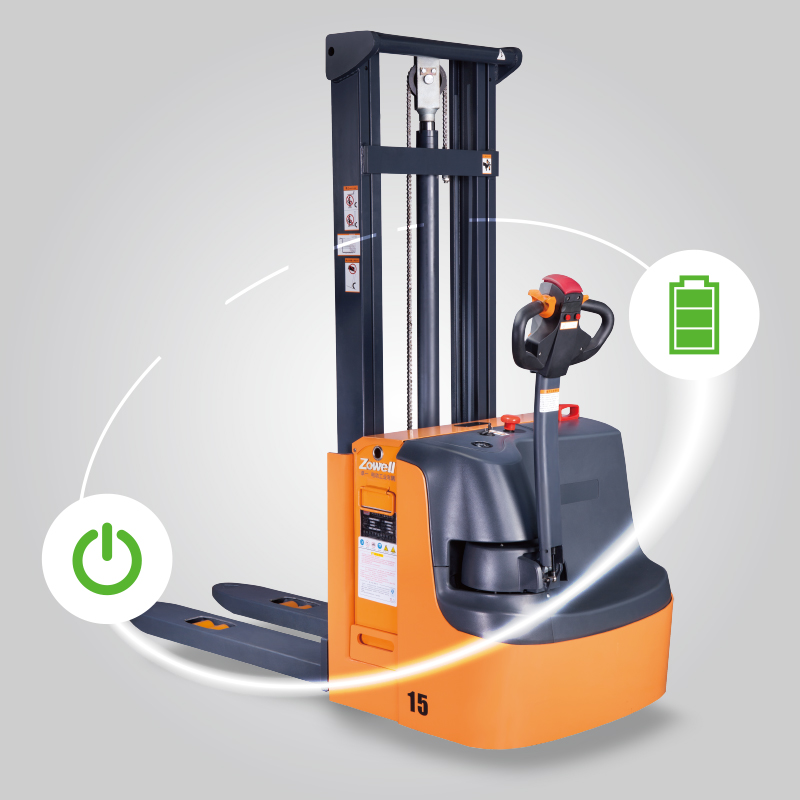

Electric stackers Warehouse lift equipment 1.5ton

Introduction

Electric stacker, or walkie stacker, is an industrial device for loading and lifting pallets on a shelf at high level. As an ideal choice to operate in narrow space of warehouse, it can be widely used in petroleum, chemical, pharmaceutical, textile, pigment, coal and other industries, as well as ports, railways, freight yards, warehouses. We also provides electric towing tractor, electric pallet truck with high quality.

Detail features

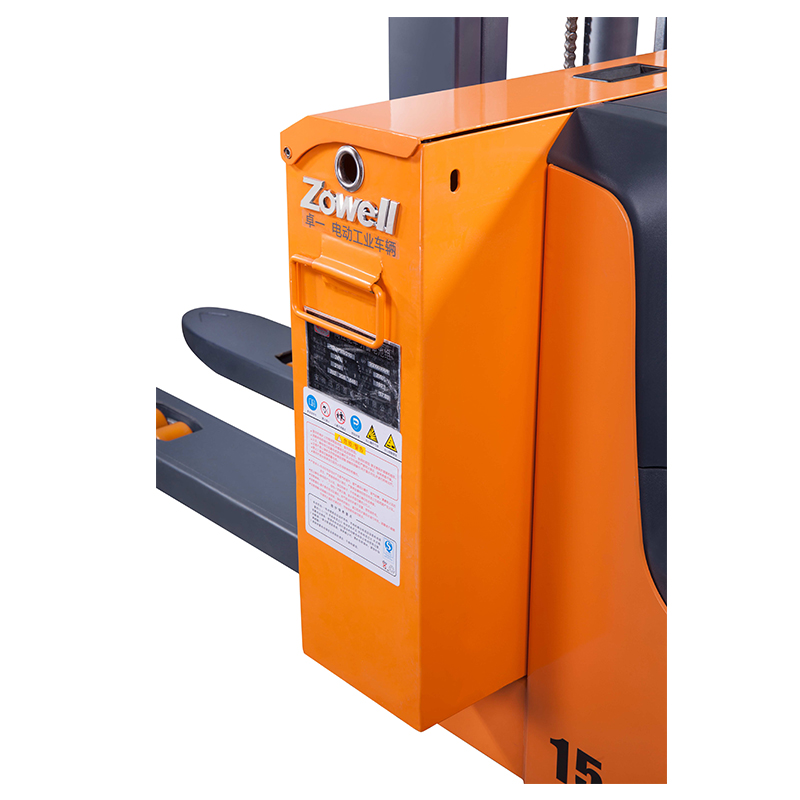

1. Side loading and unloading of storage battery
Side loading and unloading of storage battery can realize easy checking, maintenance and changing of batteries.

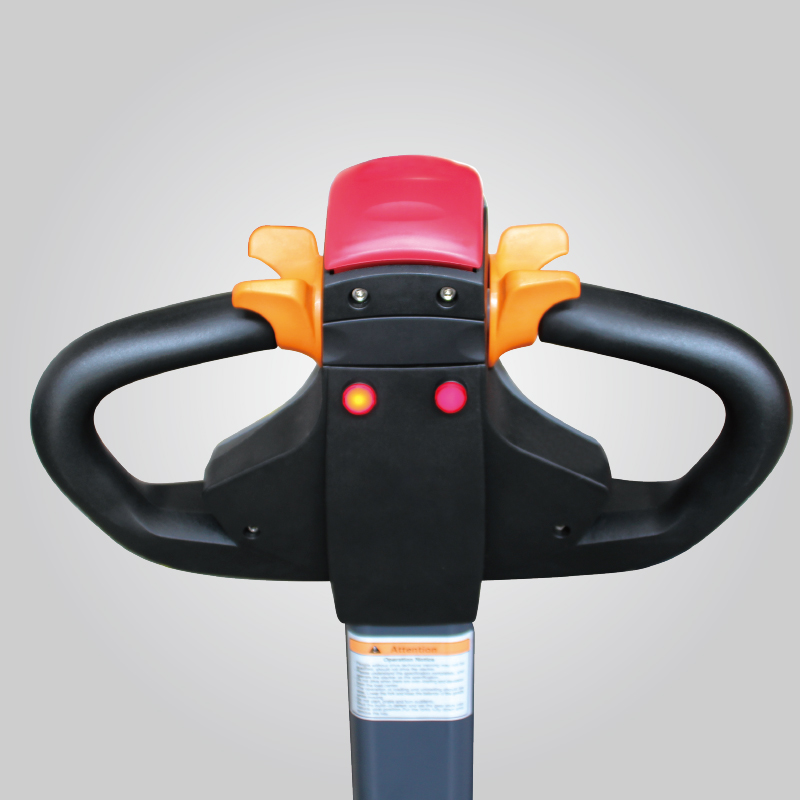

2. Move when tiller head in upright position
When the operating handle is in the position of straight moving, the stacker can move slowly. This is quite suitable for working in narrow channels and other limited spaces.

3. Vertical driving assembly
The XEB15 electric stacker adopts vertical drive which can effectively prevent entering of dust into the motor, thus reducing wear. And the maintenance and changing of the motor can be easy.

4. Double speed switch
The speed of this electric stacker can be freely switched between normal speed and slow speed. The operators can choose slow speed to realize slow moving of the stacker. This is especially suitable for new operators who are not familiar with the operation of this equipment.

Technical Data

Identification	1	Product model		EB15
	2	Power supply		Electric
	3	Operating type		Pedestrain
	4	Load capacity	Q kg	1500
	5	Load center distance	C mm	600
	6	Wheelbase	Y mm	1398

Weight	1	Weight(without battery)	kg	980
	2
	3

Wheels	1	Tyres		Polurethane
	2	Drive wheel size	mm	Φ230×82
	3	Load wheel size	mm	Φ80×70
	4	Balance wheel size	mm	Φ125×50
	5	Wheels qty（Front/Rear）（x=Drive wheel）		1x-1/4
	6	Tread width drive end	mm	555
	7	Tread width load end	mm	350/370/380/390/400/500

Specification	1	Total height（Forks lowerest)	h1 mm	See table
	2	Free lift height	h2 mm
	3	Lift height	h3 mm
		Max height（Forks highest）	h4 mm
	5	Lowerest height	h5 mm	86
	6	Height of handle in drive position(Max/Min)	h6 mm	1305/715
	7	Overall length	L1 mm	2043.2
	8	Length to face of forks	L2 mm	893.2
	9	Overall width	b1 mm	850
	10	Fork size	s/e/l mm	180/66/1150
	11	Fork width	b3 mm	570/580/680
	12	Min Ground clearance	m mm	20
	13	Aisle width for pallets 1000x1200 1200mm (length)	Ast mm	2500
	14	Turning radidus	Wa mm	1595

Performance	1	Drive speed Loaded/unloaded	km/h	4/4.5
	2	Lift speed Loaded/unloaded	mm/s	80/130
	3	Loaded/unloaded	mm/s	85/100
	4	Max Gradeability Loaded/unloaded	%	5/10
	5	Braking type		Managematic

Motors	1	Drive motor rating	kw	1.5
	2	Lift motor rating	kw	2.2
	3	Battery voltage / nominal capacity	V/Ah	24/210(210\240\280)
	4	Battery weight	kg	200\205\295

Others	1	Control type		Mosfet control
Others	2	Noise level	dB(A)	<70
