1.5 Ton Electric Stacker New Zowell

$5500.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	900PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

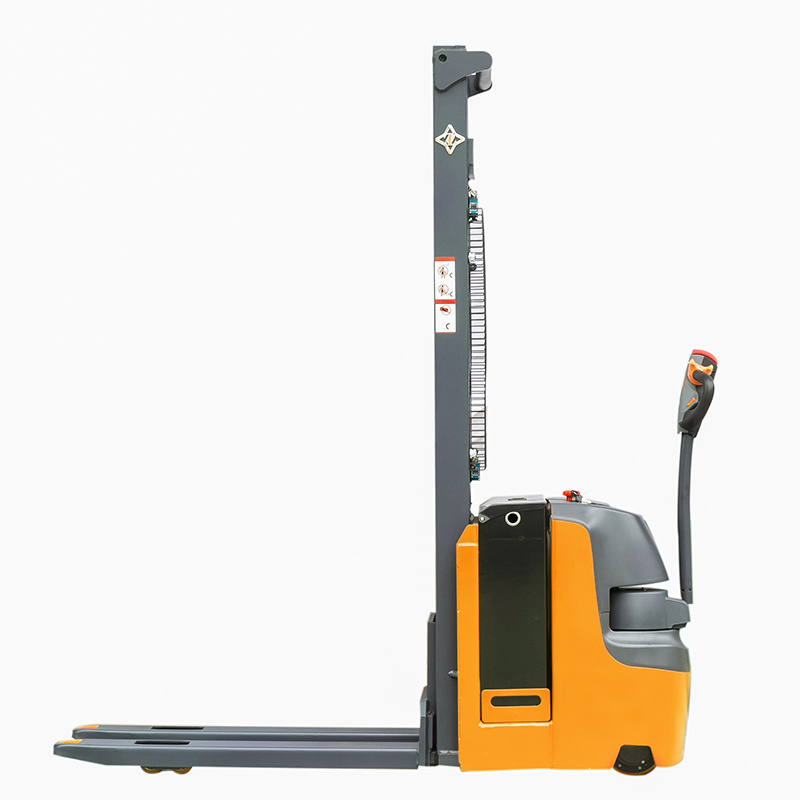

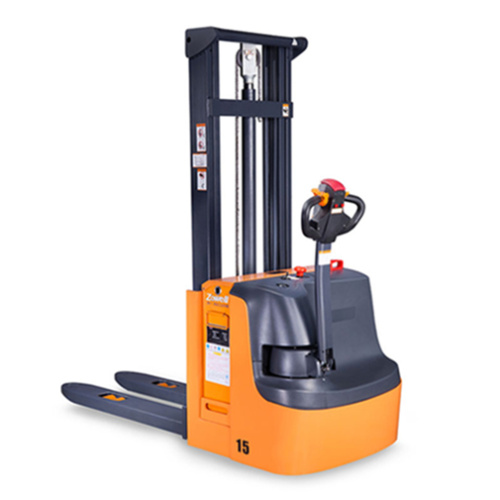

Zowell 1.5 Ton Pedestrian Type Electric Stacker has Special measurements for cold storage use, Change the hydraulic oil for one prepared for cold storage, Towing Tractor High Lift could Change the gear oil for one prepared for cold storage
, Place silicone grease on all micro switches and connectors to avoid humidity,High Lift Pallet Jack
could Change FREI accelerator to Curtis accelerator to avoid humidity, Special process on electrical components to prevent frostbite, Dust the whole body, Change the wheel to antiskid PU tyre.

Identification	Product model			XEB15
	Power supply			Electric
	Operating type			Pedestrian
	Load capacity		Q Kg	1500
	Load center distance		C mm	600
	Load distance		X mm	357
	Wheelbase		Y mm	1375
Weight	Weight(without battery)		Kg	971
	Axle loading,unloaded drive end / load end		Kg	323/648
Wheel	Tyres			Polyurethane
	Tyre size drive end		mm	Φ230×82
	Type size load end		mm	Φ80×70
	Balancing wheel size		mm	Φ125×50
	Wheels number (x=drive wheel) drive end/load end			1x-1/4
	Tread width drive end		mm	555
	Tread width load end		mm	390
Dimensions	Height data is on the bottom - Height data choices
	Height with mast closed		h1 mm	See Height Data Choices
	Free Lift		h2 mm
	Forks lift height		h3 mm
	Height with mast extended		h4 mm
	Forks height, lowered		h5 mm	86
	Height of handle in drive position (Max/Min)		h6 mm	1305/715
	Overall length		L1 mm	2028
	Length to face of forks		L2 mm	878.3
	Overall width		b1 mm	850
	Fork dimensions		s/e/l mm	180/66/1150
	Forks width		b3 mm	570
	Min. ground clearance		m mm	20
	Aisle width for pallets 1000x1200 lengthways		Ast mm	2487
	Turning radius		Wa mm	1586
Performance	Travel speed loaded/unloaded		km/h	4/4.5
	Lift speed loaded/unloaded		mm/s	120/200
	Lowering speed loaded/unloaded		mm/s	80/90
	Max gradeability loaded/unloaded		%	5/10
	Service brake			Electromagnetic Brake
Electric Motor	Drive motor rating		kW	1.5
	Lift motor rating		kW	2.2
	Battery voltage / nominal capacity		V/Ah	24V/210AH
	Battery weight		Kg	N/A
Others	Type of drive control			Mosfet control
	Noise level at operator's ear		dB(A)	<70

Height Data Choices
Model	Mast type	Forks lift height		Height with mast closed	Free Lift	Height with mast Extended
		h3 (mm)		h1 (mm)	h2 (mm)	h4 (mm)
XEB15	Dual	2500		1755	/	2977
	Dual	3000		2005	/	3477
	Dual	3300		2155	/	3777
	Dual	3500		2255	/	3977

a Hot Sale New Zowell, 1.5 Ton Electric Stacker
