Customized Electric Straddle Stacker

$7800.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Others

Port:: shanghai, Ningbo , lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO
HS Code:	8427102000
Transportation:	Ocean,Land,Others
Port:	shanghai,Ningbo ,lianyungang

Product Description

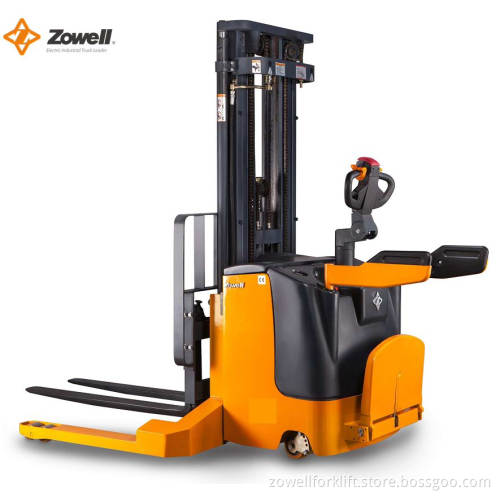

Customized Electric Straddle Stacker

XPK electric staddle stacker provides a safe and stable operation experience as counterbalanced forklift. This Electric Straddle Forklift is equipped with clear-view mast and reliable control and display system designer for safety. The special fork and support leg are more stable to manage both sigle or double faced pallet in variouse scenarios such as ports, railways, freight yards, warehouses. XPK Full Electric Stacker is the wise choice to extend your space and improve efficiency.

Detail Features

The multifunctional handle is imported from Germany.

It has integrated control functions including a speed button, horn button, emergency reversing button and lifting button.

The handle has an emergency reversing button which can effectively protect the operators from being hurt in accident involving falling items.

The handle can realize braking both in vertical and horizontal position.

The human-machine design is quite safe and the operation is more comfortable.

Technical Data

Identification	Product model		XEK15
	Power supply		Electric
	Operating type		Standing
	Load capacity	Q Kg	1500
	Load center distance	C mm	600
	Load distance	X mm	490
	Wheelbase	Y mm	1340
Weight	Weight (without battery)	Kg	781
	Axle loading, loaded drive end / load end	Kg	911/1620
	Axle loading, unloaded drive end / load end	Kg	690/340
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ250x80
	Type size load end	mm	Φ80x70
	Balancing wheel size	mm	Φ125x50
	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	Tread width drive end	mm	690
	Tread width load end	mm	1394
Dimensions	Height data is on the bottom — Height data choices
	Forks height,lowered	h5 mm	40
	Height of handle in drive position (Max/Min)	h6 mm	1350/985
	Overall length	L1 mm	2070
	Length to face of forks	L2 mm	925
	Overall width	b1 mm	1510
	Inside width at the end of leg	b2 mm	1270
	Fork dimensions (Forging)	s/e/l mm	100/35/1070
	Forks width	b3 mm	200-800
	Minimum ground clearance	m mm	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2350
	Turning radius	Wa mm	1610
Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Lift speed loaded/unloaded	mm/s	90/120
	Lowering speed loaded/unloaded	mm/s	125/80
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.5(AC)
	Lift motor rating	kW	2.2/3.0
	Battery voltage / nominal capacity	V/Ah	24/210(240-280)
	Battery weight	Kg	230(250-280)
Others	Type of drive control		MOSFET control
	Noise level at operator’s ear	dB(A)	<70

Product Display

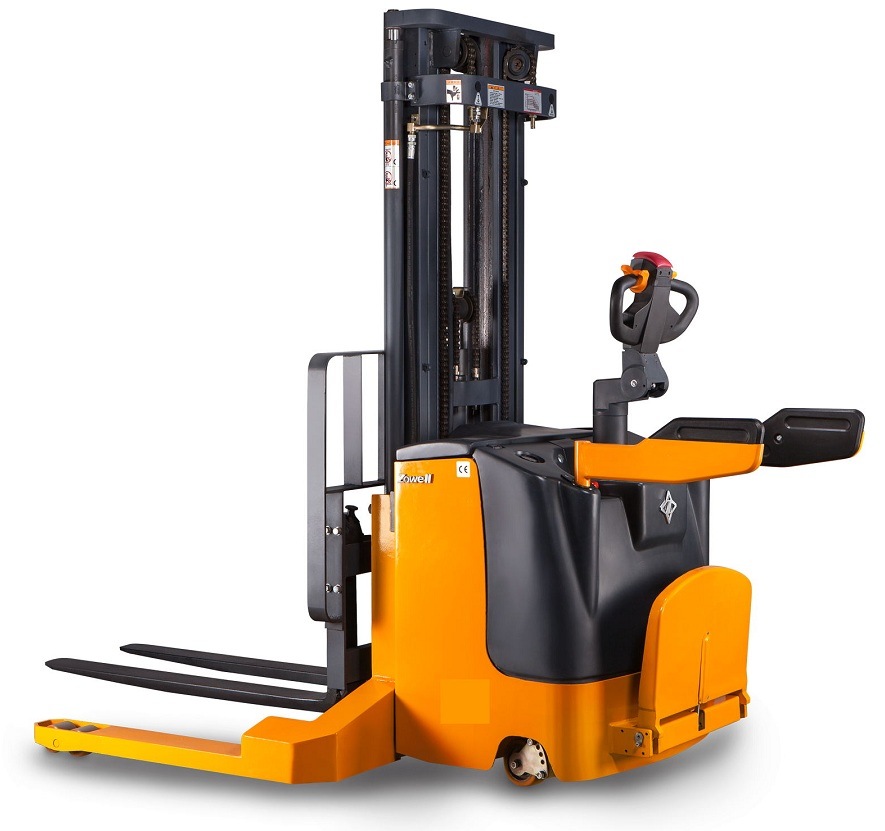

Brilliant Zowell Electric Straddle Stacker CE ISO9001 Can Be Customized
