New Standing Electric Straddle Stacker

$6600.00 - $8300.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Others

Port:: shanghai, ningbo , lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO
HS Code:	8427102000
Transportation:	Ocean,Land,Others
Port:	shanghai,ningbo ,lianyungang

Product Description

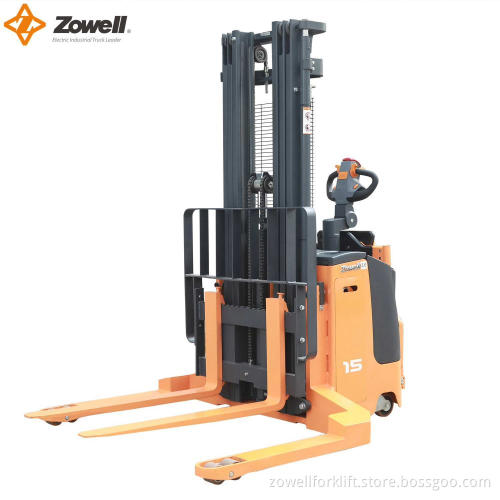

New Standing Electric Straddle Stacker

XEK electric staddle stacker provides a safe and stable appearance as counterbalanced forklift and electric reach truck. It is equipped with clear-view mast and reliable control and display system designer for safety. The special fork and support leg are more stable to manage both sigle or double faced pallet in variouse scenarios such as ports, railways, freight yards, warehouses. XEK electric standing straddle stacker is the wise choice to extend your space and improve efficiency.

Detail Features

The multifunctional handle is imported from Germany.

It has integrated control functions including a speed button, horn button, emergency reversing button and lifting button.

The handle has an emergency reversing button which can effectively protect the operators from being hurt in accident involving falling items.

The handle can realize braking both in vertical and horizontal position.

The human-machine design is quite safe and the operation is more comfortable.

Technical Data

Identification	1	Product model		XEK15
	2	Power supply		Electric
	3	Operating type		Standing
	4	Load capacity	Q kg	1500
	5	Load center distance	C mm	600
	6	Load distance	X mm	280
	7	Wheelbase	Y mm	1329

Weight	1	Weight(without battery)	kg	942
	2	Axle loading, loaded drive end / load end	kg	843/1799
	3	Axle loading,unloaded drive end / load end	kg	767/375

Wheel	1	Tyres		Polyurethane
	2	Tyre size drive end	mm	Φ250×80
	3	Type size load end	mm	Φ80×70
	4	Balancing wheel size	mm	Φ125×50
	5	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	6	Tread width drive end	mm	694
	7	Tread width load end	mm	1390

Dimensions	1	Height with mast closed	h1 mm	2000
	2	Free lifting height	h2 mm	/
	3	Lifting height	h3 mm	3000
	4	Max height, max fork height	h4 mm	3957
	5	Forks height, lowered	h5 mm	35
	6	Height of handle in drive position (Max/Min)	h6 mm	1396/1136
	7	Overall length	L1 mm	2003
	8	Length to face of forks	L2 mm	934
	9	Inside width at the end of leg	b2 mm	1270
	10	Overall width	b1 mm	1510
	11	Fork dimensions	s/e/l mm	100/35/1070
	12	Forks width	b3 mm	200-800
	13	Min. ground clearance	m mm	30

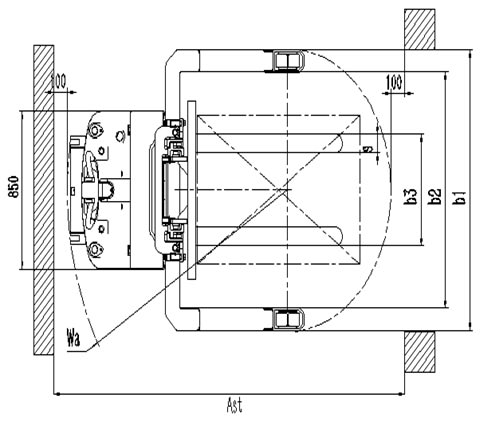

	14	Aisle width for pallets 800x1200 lengthways	Ast mm	2587
	15	Turning radius	Wa mm	1626

Performance	1	Travel speed loaded/unloaded	km/h	5.2/6
	2	Lift speed loaded/unloaded	mm/s	90/120
	3	Lowering speed loaded/unloaded	mm/s	125/80
	4	Max gradeability loaded/unloaded	%	5/8
	5	Service brake		Electromagnetic

Electric Motor	1	Drive motor rating	kw	AC 1.5
	2	Lift motor rating	kw	2.2
	3	Battery voltage / nominal capacity	V/Ah	24/210(210\240\280)
	4	Battery weight	kg	200\205\295

Others	1	Type of drive control		MOSFET Control
Others	2	Noise level at operator’s ear	dB(A)	<70
