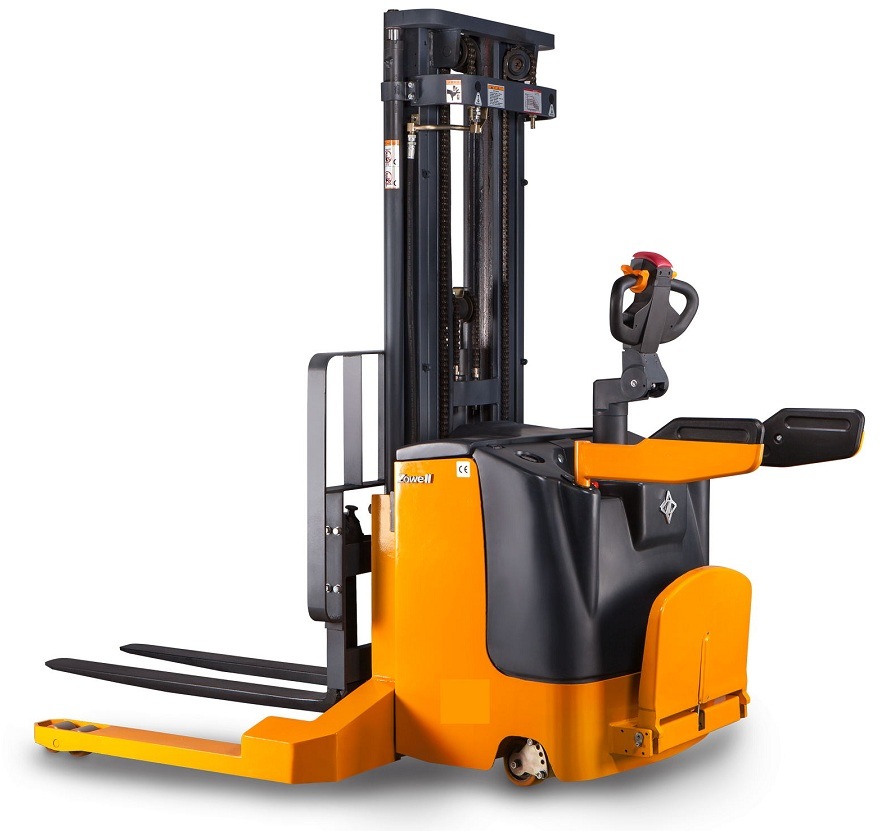

Electric Walkie straddle stacker

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW, FCA

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

Identification	Product model		XEK10A	XEK10B
	Power supply		Electric	Electric
	Operating type		Standing	Pedestrian
	Load capacity	Q Kg	1000	1000
	Load center distance	C mm	600	600
	Load distance	X mm	430	430
	Wheelbase	Y mm	1280	1280
Weight	Weight (without battery)	Kg	700	680
	Axle loading, loaded drive end / load end	Kg	736/1164	728/1152
	Axle loading, unloaded drive end / load end	Kg	612/288	598/282
Wheel	Tyres		Polyurethane	Polyurethane
	Tyre size drive end	mm	250×80	250×80
	Type size load end	mm	80×70	80×70
	Balancing wheel size	mm	125×50	125×50
	Wheels number (x=drive wheel) drive end/load end		1x-2/4	1x-2/4
	Tread width drive end	mm	690	690
	Tread width load end	mm	1390	1390
Dimensions	Height data is on the bottom _ Height data choices
	Forks height,lowered	h5 mm	35	35
	Height of handle in drive position (Max/Min)	h6 mm	1350/985	1350/985
	Overall length	L1 mm	1950	1890
	Length to face of forks	L2 mm	797	737
	Inside width at the end of leg	b2 mm	1510	1510
	Overall width	b1 mm	1270	1270
	Fork dimensions (Forging)	s/e/l mm	100/35/1070	100/35/1070
	Forks width	b3 mm	200-800	200-800
	Minimum ground clearance	m mm	30	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2305	2220
	Turning radius	Wa mm	1545	1460
Performance	Travel speed loaded/unloaded	km/h	5.2/6	4/5
	Lift speed loaded/unloaded	mm/s	90/120	90/120
	Lowering speed loaded/unloaded	mm/s	125/80	125/80
	Max gradeability loaded/unloaded	%	5/8	5/8
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.2(DC) 1.5(AC)
	Lift motor rating	kW	2.2/3.0	2.2/3.0
	Battery voltage / nominal capacity	V/Ah	24/180(210)
	Battery weight	Kg	210(230)
Others	Type of drive control		MOSFET control
	Noise level at operator's ear	dB(A)	<70

Zowell Battery Walkie Stacker (XEK10) Can Be Customized CE ISO9001 Work Long Time
