Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP
Certificate:	CE/ISO
HS Code:	8427102000
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

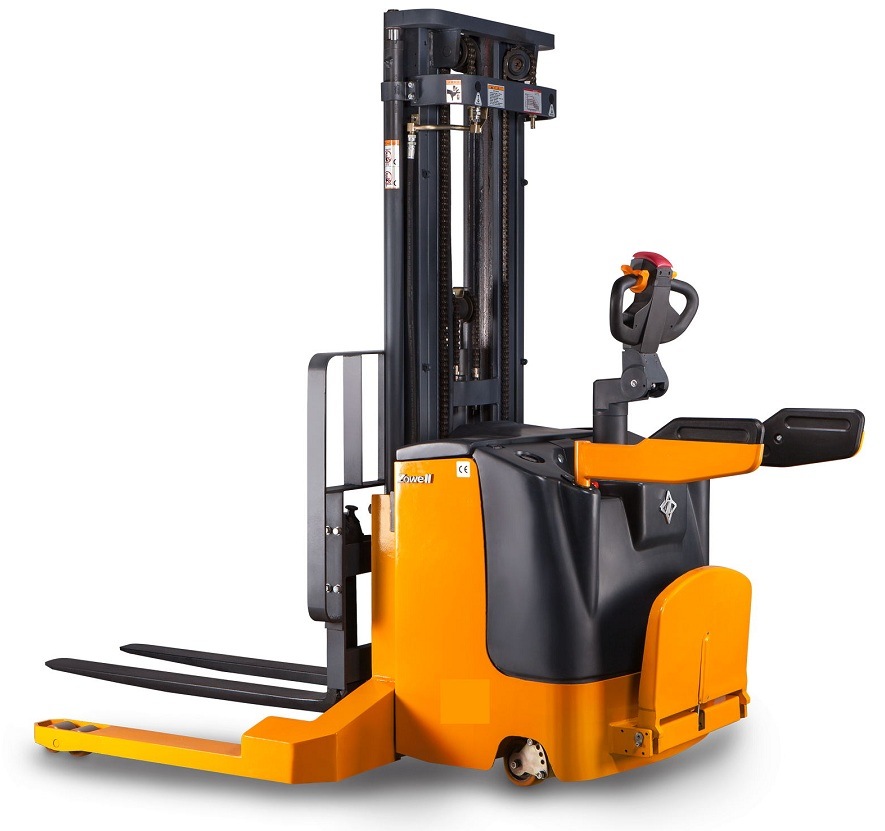

Zowell Electric Walkie Stacker Battery Stacker

Wide Fork Leg Stacker XEK electric staddle stacker provides a safe and stable operation experience as counterbalanced forklift does. It is equipped with clear-view mast and reliable control and display system designer for safety. The special fork and support leg make the electric straddle forklift more stable to manage both sigle or double faced pallet in variouse scenarios such as ports, railways, freight yards, warehouses. XEK electric walkie straddle stacker is the wise choice to extend your space and improve efficiency.

Detail Features

1. Germany Mannstaedt forklift profile for mast building.
2. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
3. Regenerative braking function
4. CURTIS electronic controller
5. Germany Frei handle
6. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.
7. Emergency reversing device in the handle provides improved operating safety.
8. Emergency power disconnect switch.
9. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
10. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
11. The mast and the frame are dividable and exchangeable.

Technical Data

Identification	Product model		XEK20
	Power supply		Electric
	Operating type		Standing or Pedestrian
	Load capacity	Q Kg	2000
	Load center distance	C mm	600
	Load distance	X mm	484
	Wheelbase	Y mm	1372
Weight	Weight (without battery)	Kg	1050
	Axle loading, loaded drive end / load end	Kg	1164/2136
	Axle loading, unloaded drive end / load end	Kg	913/387
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ230x75
	Type size load end	mm	Φ80x70
	Balancing wheel size	mm	Φ150x60
	Wheels number (x=drive wheel) drive end/load end		1x-2/4
	Tread width drive end	mm	800
	Tread width load end	mm	500
Dimensions	Height data is on the bottom - Height data choices
	Forks height, lowered	h5 mm	40
	Height of tiller in drive position (max/min)	h6 mm	1370/985
	Overall length	L1 mm	2145
	Length to face of forks	L2 mm	956
	Overall width	b1 mm	1510
	Inside width between two legs	b2 mm	1270
	Fork dimensions	s/e/lmm	100/35/1070
	Max. forks width	b3 mm	200-800
	Min. ground clearance	m mm	30
	Aisle width for pallet 800*1200 lengthways	Ast mm	2499
	Turning radius	Wa mm	1685
Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Lift speed loaded/unloaded	mm/s	120/150
	Lowering speed loaded/unloaded	mm/s	150/125
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.2
	Lift motor rating	kW	2.2 / 3.0
	Battery voltage / nominal capacity	V/Ah	24/240-280
	Battery weight	Kg	250
Others	Type of drive control		MOSFET Control
	Noise level at operator's ear	dB(A)	<70
