1.5t 1.8t Full Electric Reach Truck Standing on

1.5t 1.8t Full Electric Reach Truck Standing on

$15000.00

≥9000 Piece/Pieces

Min. Order:: 9000 Piece/Pieces

Min. Order:: 9000 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100PCS
Supply Ability:	100PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,CIP,FCA
Certificate:	CE/ISO
HS Code:	8427102000
Transportation:	Ocean
Port:	Shanghai,Ningbo,Lianyungang

Product Description

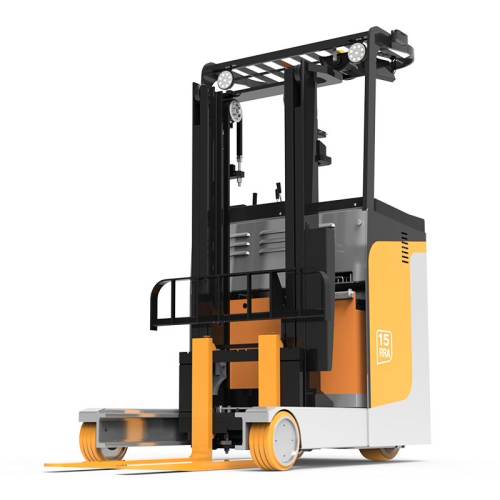

1.5t 1.8t Full Electric Reach Truck Standing on

FRA reach truck take a different new design compared with XR reach stacker. The operator can stand on pedal which surrounded by control system for more safety and efficiency. The forged reach fork reduced the aisle width needed to adapt warehouse with various aisle. Full AC control and side-pull design battery greatly improved experience both operation and maintenance. Handling, lifting, reaching, FRA covers a wide range of work in your warehouse as Walkie Rider, Power Stacker Lift did.

Detail Features

Operation in confined space. 2636mm aisle width is enough for its working.

Supper Low and non-slip step makes operation more convenient and safe.

Abundant storage space such as cup holder and file folder,makes the forklift more hunmanized.

Smart Instrument shows all the running status of forklift like the driving wheel position, battery level,error code，etc

Thrust replacement for battery makes it easy to keep maintenance.

Multi-valve operation with hydraulic level can achieve accurate control.

Speed-limiting function for steering,stops the truck turning over when turning.

Double AC Curtis controllers ensure reliable performance.

Using full AC maintenance-free driving motor and lifting motor, maintenance cost is lower.

LED headlight provides more strong light source.

EPAS（ Electrical Power Assistance Steering） with small -diameter steering wheel makes it easy to operate

Floating rear suspension-wheel structure makes it suitable for working in different floor

Additional fork camera makes it safe and efficient to loading or unloading goods.

Technical Data

Identification
1.1	manufacturer			ZOWELL
1.2	Model			FRA15	FRA18
1.3	Power supply			Electric	Electric
1.4	Driving type			Standing on	Standing on
1.5	Load capacity	kg	Q	1500	1800
1.6	Load center	mm	C	500	500
1.7	Front overhang(Mast reach in/Mast reach out )	mm	x	385/175	565/175
1.8	Wheel base	mm	y	1345	1525
Weight
2.1	Self weight(With battery)	kg		2400	2400
2.2	Alex unload(Front/Rear)-fork back	kg		1600/800	1600/800
2.3	Alex loaded(Front/Rear)-fork out	kg		3390/510	3390/510
2.4	Alex loaded(Front/Rear)-fork back	kg		2500/1400	2500/1400
Wheel
3.1	Tyres			Polyurethane	Polyurethane
3.2	Drive wheel size	mm		Φ330x145	Φ330x145
3.3	Balance wheel size	mm		Φ178x73	Φ178x73
3.4	Load wheel size	mm		Φ254x120	Φ254x120
3.5	Wheels qty			2/1X+2(X=driven)	2/1X+2(X=driven)
3.6	Tread, front	mm		977	977
3.7	Tread, rear	mm		634	634
Dimensions
4.1	Tilting degree (Front/Rear)	deg	α/β	3/5	3/5
4.2	Overall height(mast lowerest height)	mm	h1	1995	1995
4.3	Free lift height	mm	h2	105	105
4.4	Lift height	mm	h3	3000	3000
4.5	Mast extended height	mm	h4	3900	3900
4.6	Overhead guard	mm	h6	2250	2250
4.7	platform height	mm	h7	312	312
4.8	Overall length(with fork)	mm	L1	2230	2410
4.9	Distance to forkface	mm	L2	1160	1160
5	Overall width	mm	b1/b2	1081/1093	1081/1093
4.11	Fork size	mm	L/e/s	35×100×1070	35×100×1070
4.12	Fork carriage standard			ISO-2328 2B	ISO-2328 2B
4.13	Cargo fork width	mm	b3	720	720
4.14	Fork width(Min/Max)	mm	b5	200/720	200/720
4.15	Inside width of front leg	mm	b4	739	739
4.16	Reach distance	mm	L4	560	740
4.17	Minimum height above ground	mm	m1	75	75
4.18	Minimum frame height above ground	mm	m2	75	75
4.19	Aisle width:1000*1200	mm	Ast	2642	2699
4.2	Aisle width:1200*800	mm	Ast	2512	2602
4.21	Min turning radidus	mm	Wa	1582.5	1758
4.22	Overall length	mm	L7	1675	1855
Performance
5.1	Drive speed(Loaded/unloaded)	km/h		9.5/10.5	9.5/10.5
5.2	Lift speed(Loaded/unloaded)	mm/s		330/350	330/350
5.3	Lower speed(Loaded/unloaded)	mm/s		360/420	360/420
5.4	Move Speed	mm/s		60	60
5.5	Grade ability (Loaded/unloaded) KB3'1.5km/h	%		10/14.3	10/14.3
5.6	Parking type			machanical disc	machanical disc
Electric Motor
6.1	Driving motor KB60'	kw		6.5	6.5
6.2	Lifting motor 15%ED	kw		12.5	12.5
6.3	Turning motor	kw		0.3	0.3
6.4	Battery voltage/capacity	V/Ah		48/280	48/280
6.5	Battery weight	kg		450	450
6.6	Battery size	mm		956×375×570	956×375×570
Others
7.1	Controller type			MOS-FET inverter	MOS-FET inverter
7.2	working pressure	bar		130-178	130-178
7.3	Oil capacity	l/min		16	16
7.4	Noise	dB		69-75	69-75

Dimension FRA
