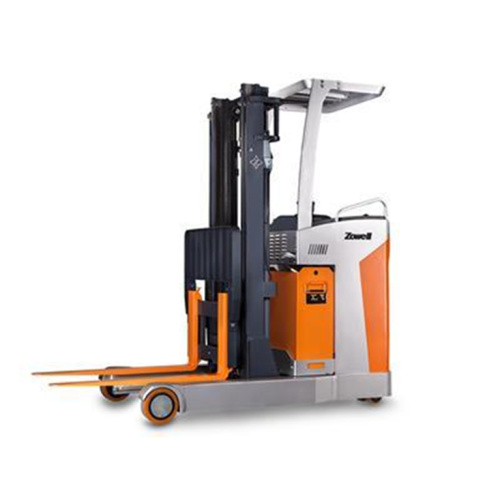

Zowell New 1.5 Ton Electric Reach Truck Customized

Zowell New 1.5 Ton Electric Reach Truck Customized

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	700PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

The Zowell 1.5 Ton Electric Reach Truck is a high-performance truck suitable for a wide range of towing and order-picking duties. This Reach Truck Customized Europe Ce Iso is especially suitable for use in operations where goods are being moved in a continuous flow. Typical applications of Smallest Reach Lift Truck are industries where Just-In-Time principles are applied. We also recommend Very Narrow Aisle Forklift if you want to improve the efficiency further.

Identification	Product model		FRC15	FRC20
	Power supply		Electric	Electric
	Operating type		Standing on/Sitting on	Standing on/Sitting on
	Load capacity	Q kg	1500	2000
	Load center distance	C mm	500	500
	Front overhang	X mm	446	446
	Wheelbase	Y mm	1511	1661

Weight	Weight (without battery)	kg	1817	1880
	Axle loading, loaded drive end/load end	kg	1130/2420	1120/2779
	Axle loading, unloaded drive end/load end	kg	1267/779	1210/700

Wheel	Tyres		Polyurethane	Polyurethane
	Tyre size drive end	mm	230×82	230×82
	Type size load end	mm	210×85	210×85
	Balancing wheel size	mm	125×60	125×60
	Wheels number (x=drive wheel) drive end/load end		1x-2/2	1x-2/2
	Tread width drive end	mm	550	550
	Tread width load end	mm	985	985

Dimensions	Lowered mast height	h1 mm	See attached table A	See attached table B
	Free lift	h2 mm
	Lift height	h3 mm
	Extended mast height	h4 mm
	Overhead guard height	h5 mm	2162	2162
	Ground clearance Platform	h6 mm	（Standing on) 267/（Sitting on） 570	Standing on 267/Sitting on 570
	Overall length	L1 mm	2340	2490
	Length of chassis	L3 mm	1830	1980
	Length to face of forks	L2 mm	1270	1420
	Overall width	b1 mm	1090	1090
	Inside width between the guides	b2 mm	772	772
	Fork dimensions (Forging)	s/e/l mm	100/35/1070	100/40/1070
	Forks width	b3 mm	200-730	200-730
	Reach length	L4 mm	580	580
	Min ground clearance	m mm	55	55
	Aisle width for pallets 1000x1200 ( fork along side1000)	Ast mm	2733	2883
	Aisle width for pallets 800x1200 (fork along side 1200)	Ast mm	2770	2920
	Turning radius	Wa mm	1716	1866
	Fork tilting degree (forward/backward)	a/b °	3/5	3/5

Performance	Travel speed loaded/unloaded	km/h	6.5/7.5	6.5/7.5
	Lift speed loaded/unloaded	m/s	100/135	100/135
	Lowering speed loaded/unloaded	m/s	283/128	283/128
	Max gradeability loaded/unloaded	%	5/8	5/8
	Service brake		Electromagnetic	Electromagnetic

Electric Motor	Drive motor rating	kw	AC 2.0	AC 2.0
	Lift motor rating	kw	3	3
	Battery voltage / nominal capacity	V/Ah	24/280*～360	24/280*～360
	Battery weight	kg	280*	280*

Others	Type of drive control		MOSFET Control	MOSFET Control
Others	Noise level at operator’s ear	dB(A)	<70	<70

Frc Electric Reach Truck 18 Jpg
