Electric Mini Reach Truck 1.5 Ton

$8100.00 - $10600.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	700PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO9001
HS Code:	842710
Transportation:	Ocean,Land
Port:	Shanghai,Ningbo,Lianyungang

Product Description

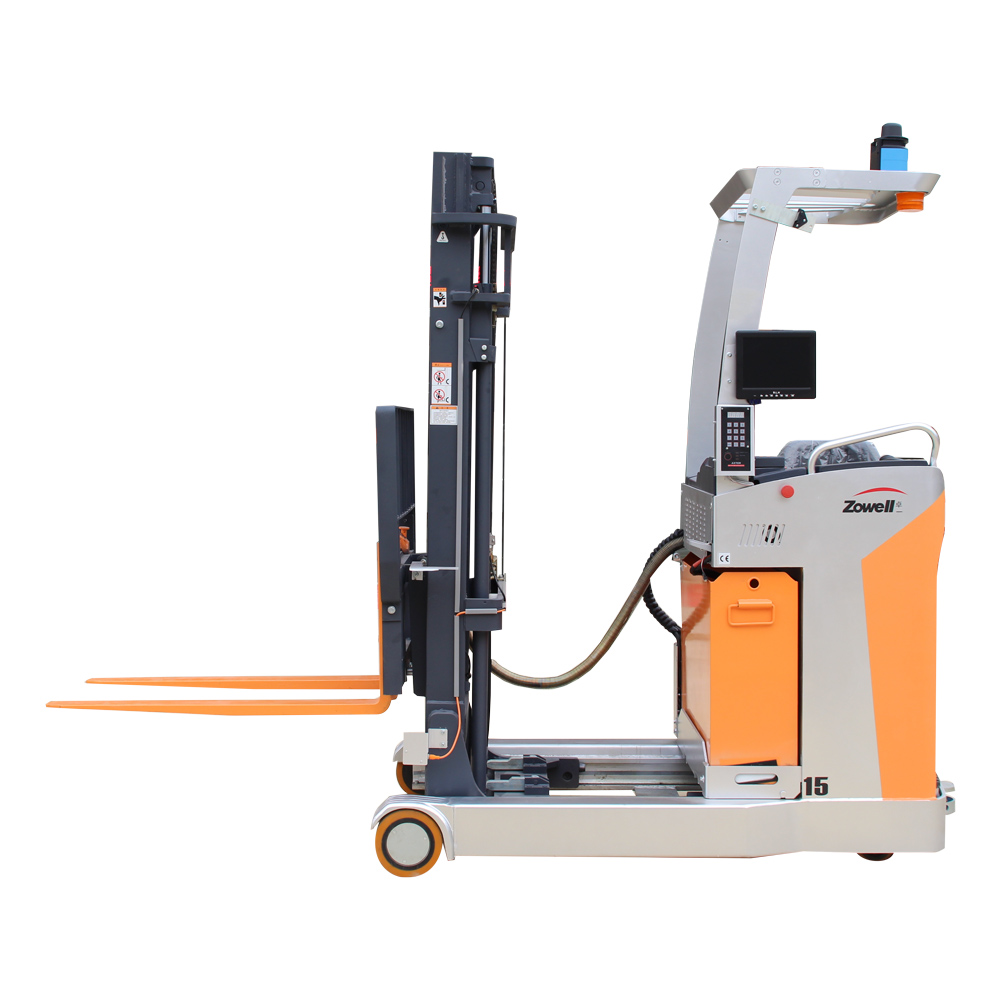

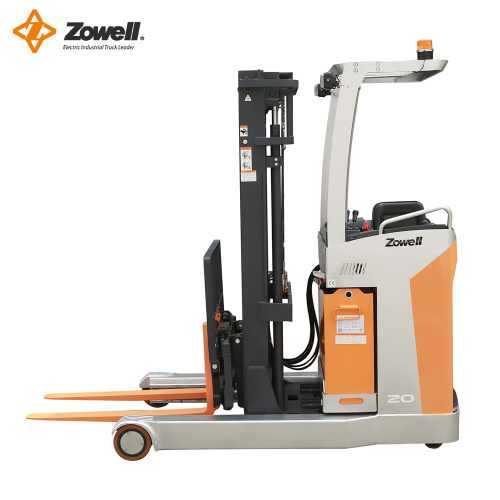

Electric Mini Reach Truck 1.5 Ton

Efficiency and safety are two values that industrial warehouse equipment manufacturers most cherised. Compared to electric pallet truck and electric towing tractor, the reach stacker has featured with reach and lifting function. Meanwhile, as one the advanced equipment of Zowell, FRC seated reach stacker provides excellent performance when working in confined space. Comfortable and smooth control are built from EPS and curtis electric control system in the whole process of material handling, lifting and reaching. With more effort paid in material handling, FRC is ready to save your cost as well as space in modern storage era.

Detail Features

1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements.

2. Multi-function display: battery state, hour meter, fault code indicator, etc.

3. Stepless driving speed control.

4. AC Curtis driving controller.

5.Curtis EPS(Electric Power Steering) system provides more smooth steering and flexible controlling.

6. SWISS BUCHER brand hydraulic pump.

7. Reach function: Fork can extend 580mm

8. Fork can tilt forward / backward for safer load handling.

9.Side battery roll-out system is very convenient for battery replacement, and forward battery roll-out system is very convenient for battery maintenance.
10. 260mm super low stand-on platform for easily step on and off .

11. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

12. Side shift is optional.

13. Newly-designed overhead guard provides a wider view.

14. USB interface for cellphone charging.

15. Large capacity battery(up to 500Ah).

Technical Data

Identification	Product model		FRC15
	Power supply		Electric
	Operating type		Standing on/Sitting on
	Load capacity	Q kg	1500
	Load center distance	C mm	500
	Front overhang	X mm	446
	Wheelbase	Y mm	1511

Weight	Weight (without battery)	kg	1817
	Axle loading, loaded drive end/load end	kg	1130/2420
	Axle loading, unloaded drive end/load end	kg	1267/779

Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	230×82
	Type size load end	mm	210×85
	Balancing wheel size	mm	125×60
	Wheels number (x=drive wheel) drive end/load end		1x-2/2
	Tread width drive end	mm	550
	Tread width load end	mm	985

Dimensions	Lowered mast height	h1 mm	See attached table A
	Free lift	h2 mm
	Lift height	h3 mm
	Extended mast height	h4 mm
	Overhead guard height	h5 mm	2162
	Ground clearance Platform	h6 mm	（Standing on) 267/（Sitting on） 570
	Overall length	L1 mm	2340
	Length of chassis	L3 mm	1830
	Length to face of forks	L2 mm	1270
	Overall width	b1 mm	1090
	Inside width between the guides	b2 mm	772
	Fork dimensions (Forging)	s/e/l mm	100/35/1070
	Forks width	b3 mm	200-730
	Reach length	L4 mm	580
	Min ground clearance	m mm	55
	Aisle width for pallets 1000x1200 ( fork along side1000)	Ast mm	2733
	Aisle width for pallets 800x1200 (fork along side 1200)	Ast mm	2770
	Turning radius	Wa mm	1716
	Fork tilting degree (forward/backward)	a/b °	3/5

Performance	Travel speed loaded/unloaded	km/h	6.5/7.5
	Lift speed loaded/unloaded	m/s	100/135
	Lowering speed loaded/unloaded	m/s	283/128
	Max gradeability loaded/unloaded	%	5/8
	Service brake		Electromagnetic

Electric Motor	Drive motor rating	kw	AC 2.0
	Lift motor rating	kw	3
	Battery voltage / nominal capacity	V/Ah	24/280*～360
	Battery weight	kg	280*

Others	Type of drive control		MOSFET Control
Others	Noise level at operator’s ear	dB(A)	<70

			Single		Dual									Triple
1	Mast lowerest height	h1	2046	2246	1780	1880	2030	2180	2280	2430	2580	1741	1896	1966	2066	2166	2236	2306
2	Full free lifting height	h2	1104	1304	83	83	83	83	83	83	83	800	965	1025	1125	1225	1285	1345
3	Lifting height	h3	1600	1800	2500	2700	3000	3300	3500	3700	4000	3500	4000	4200	4500	4800	5000	5200
4	Extended height	h4	2541	2741	3441	3641	3941	4241	4441	4641	4941	4441	4941	5141	5441	5741	5941	6141
