Small weight battery operated pallet truck price

DC Motor Electric Pallet Truck Free of Maintenance

Zowell 1.5t electric DC motor pallet truck has compact but durable design to operate in limited space. Compared with manual hand pallet jack, the electric pallet truck saves more time and effort of material handling in short distance. The battery is free of mainenance, Electric Pallet Truck Stacker saves time and cost. Zowell also provides material hanlding euqipments with high performance such as electric stacker, reach stacker and counterbalcned forklift.

Detail features

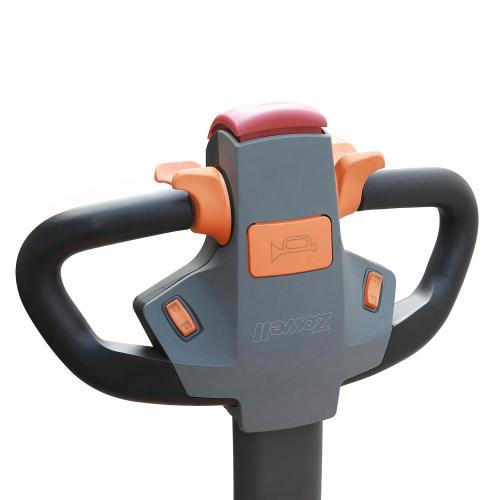

1.    Emergency reversing button on the handle
This truck is equipped with an emergency reversing button on the handle. During the backward movement, once the operator touches something, they will naturally hit the reverse button with their body. The truck will immediately move in reverse, thus protecting the operator from injury and improving operational safety.

2. The battery is maintenance free, thus saving cost and time
The built-in charger allows for an easy charging at any time and place, thus saving the time for finding another charger.

3. This 1.5 ton mini truck is 1604mm in length. The turning radius is only 1415mm. It features a compact structure so it is suitable for short distance lateral transporting.

4. This truck is equipped with an American CURTIS controller which is highly efficient and reliable.

Technical Parameters of 1.5 Ton Mini Pallet Truck:
Identification	Product model		XPC15
	Drive unit		Electrics
	Operating type		Pedestrian
	Load capacity	Q (t)	1.5
	Load center distance	c (mm)	600
	Load distance, center of drive axle to back of fork	x (mm)	959
	Wheelbase	y (mm)	1295
Weight	Truck weight (without battery)	kg	242
	Axle loading, loaded (front/rear)	kg	585/1157
	Axle loading, unloading (front/rear)	kg	169/73
Wheel	Tires		PU
	Tire size, front	Ø × w (mm)	Ø 210 × 70
	Tire size, rear	Ø × w (mm)	Ø80 × 70
	Wheels, number front/rear (x = driven wheels)		1x + 2
	Tread, rear	b11 (mm)	360/410/520
Dimension	Lift	h3 (mm)	125
	Min. / max. of handle in drive position	h14 (mm)	1160/719
	Fork , lowered	h13 (mm)	80
	Overall length	L1 (mm)	1648
	Length to face of forks	L2 (mm)	492
	Overall	b1/b2 (mm)	630
	Fork dimensions	s / e / l (mm)	56/160/1150
	Overall fork	b5 (mm)	570
	Ground clearance, centre of wheelbase(min)	m2 (mm)	24
	Aisle for pallets 1000 × 1200 crossways	Ast (mm)	2212
	Aisle for pallets 800 × 1200 crossways	Ast (mm)	2124
	Turning radius(min)	Wa (mm)	1457
	Travel speed loaded/unload	km/h	3.5/4
	Lift speed loaded/unload	m/s	0.04/0.05
	Lowering speed oaded/unload	m/s	0.05/0.04
	Max. gradeability loaded/unload	%	4,10
	Service brake		Electromagnetic
Electric Motor	Drive motor rating S2 60 min	kW	0.75
	Lift motor rating at S3 15 %	kW	0.8
	Battery voltage / nominal capacity K5	V/Ah	24/80
	Battery weight	kg	25 × 2
Others	Type of drive control		DC Curtis
	Noise level	dB (A)	70
