1.5 Ton Full Electric Pallet Truck Forklift OEM/ODM

1.5 Ton Full Electric Pallet Truck Forklift OEM/ODM

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai, Ningbo, Lianyungang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	CFR,FOB,CIF,EXW,FCA,CPT,CIP,DE
Certificate:	CE/ISO 9001
HS Code:	8427109000
Transportation:	Ocean,Land,Air
Port:	Shanghai,Ningbo,Lianyungang

Product Description

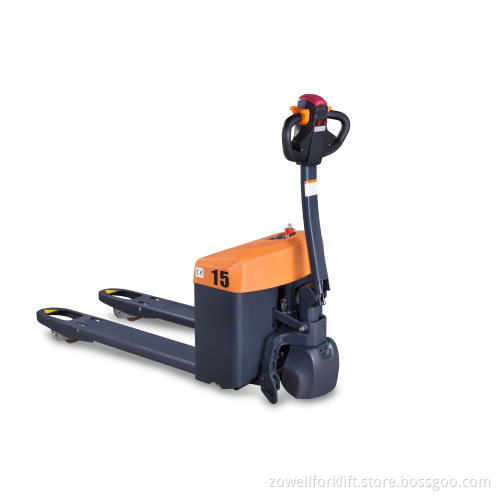

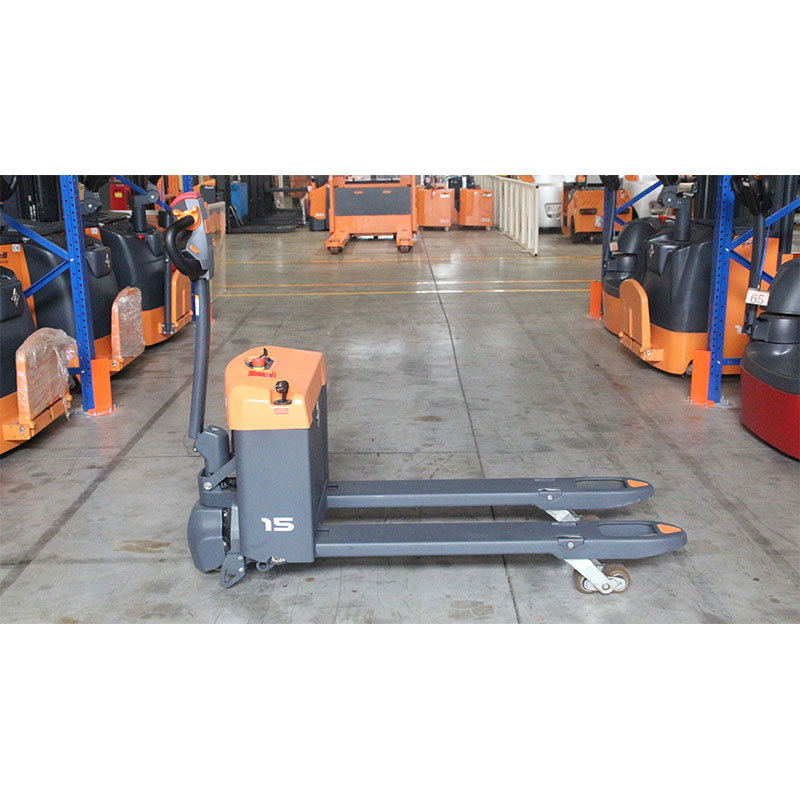

Electric Pallet Truck (1.5 ton)

Zowell full XPC pallet truck is featured with easy operaiton and maintenance. Its compact design brings comfortable working experience even in limited space. XPC electric pallet jack is often used in transportation of light duties in warehouse. Together with towing tractor, electric stacker, counterbalanced forklift and reahc truck, pallet truck rider plays an important role in modern warehoue storage.

Main Features

1. SWISS BUCHER brand Hydraulic pump.

2. Regenerative braking function

3. Electronic controller

4. Germany Frei handle

5. Emergency reversing device in the handle provides improved operating safety.

6. Emergency power disconnect switch.

7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

8.Five points structure brings the truck more stability

Technical Data

Identification	Product model		XPC15
	Drive unit		Electric
	Operating type		Pedestrian
	Load capacity	Q (t)	1.5
	Load center distance	c (mm)	600
	Load distance, center of drive axle to back of fork	x (mm)	959
	Wheelbase	y (mm)	1295

Weight	Truck weight (without battery)	kg	242
	Axle loading, loaded (front/rear)	kg	585/1157
	Axle loading, unloading (front/rear)	kg	169/73

Wheel	Tires		PU
	Tire size, front	Ø × w (mm)	Ø 210 × 70
	Tire size, rear	Ø × w (mm)	Ø80 × 70
	Wheels, number front/rear (x = driven wheels)		1x + 2
	Tread, rear	b11 (mm)	360/410/520

Dimension	Lift	h3 (mm)	125
	Min. / max. of handle in drive position	h14 (mm)	1160/719
	Fork , lowered	h13 (mm)	80
	Overall length	L1 (mm)	1648
	Length to face of forks	L2 (mm)	492
	Overall	b1/b2 (mm)	630
	Fork dimensions	s / e / l (mm)	56/160/1150
	Overall fork	b5 (mm)	570
	Ground clearance, centre of wheelbase(min)	m2 (mm)	24
	Aisle for pallets 1000 × 1200 crossways	Ast (mm)	2212
	Aisle for pallets 800 × 1200 crossways	Ast (mm)	2124
	Turning radius(min)	Wa (mm)	1457

	Travel speed loaded/unload	km/h	3.5/4
	Lift speed loaded/unload	m/s	0.04/0.05
	Lowering speed oaded/unload	m/s	0.05/0.04
	Max. gradeability loaded/unload	%	4,10
	Service brake		Electromagnetic

Electric Motor	Drive motor rating S2 60 min	kW	0.75
	Lift motor rating at S3 15 %	kW	0.8
	Battery voltage / nominal capacity K5	V/Ah	24/80
	Battery weight	kg	25 × 2

Others	Type of drive control		DC Curtis
Others	Noise level	dB (A)	70
