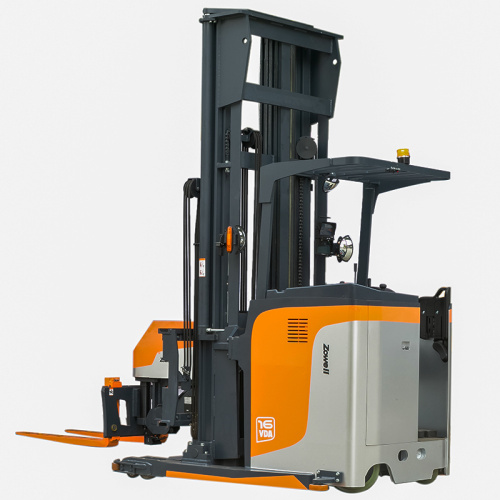

zowell stacker very narrow aisle forklift

zowell stacker very narrow aisle forklift

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS
Supply Ability:	1000PCS
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE
HS Code:	842710
Transportation:	Ocean
Port:	Shanghai

Product Description

Energy savings: Fork moving is controlled by electricity, energy-saving level can be up to 50%. Not only improve the use time but also avoid the oil-leaking problem.

Safety:Standard EPS system and wheel display system. Easy and comfortable driving,

3.5 Ton Electric Counterbalance Forklift，3 Ton Electric Counterbalance Forklift，2.5 Ton Electric Counterbalance Forklift，2 Ton Electric Counterbalance Forklift

Stable performance:imported Germany mast steel channel & speed-reducer.High compressive strength keep stable mast system.
Forklift 5 000 Lb Capacity，Forklift 20 Ton，Forklift 3，Forklift 4x4
High Efficiency: The fork can rotate in 180 degree without moving forklift itself when loading and unloading goods both in left or right side.
Compared with using normal forklifts, its storeable pallets can increased by 60%.

Ergonomics: Both the full-surrounded panels design and the individual function layout comply with the requirements of ergonomics,which optimises operator comfort. Electric powering steering
Electric fork
Maximum 1.6 ton capacity
Maximum 9m lifting height
Minimum 1480mm aisle width

Safety:Standard EPS system and wheel display system. Easy and comfortable driving,
Stable performance:imported Germany mast steel channel & speed-reducer.High compressive strength keep stable mast system.

High Efficiency: The fork can rotate in 180 degree without moving forklift itself when loading and unloading goods both in left or right side.
Compared with using normal forklifts, its storeable pallets can increased by 60%.

Energy savings: Fork moving is controlled by electricity, energy-saving level can be up to 50%. Not only improve the use time but also avoid the oil-leaking problem.

Ergonomics: Both the full-surrounded panels design and the individual function layout comply with the requirements of ergonomics,which optimises operator comfort.

Technical data for Zowell VNA three way forklift
1.3	Model		VDA116-30	VDA116S-45
1.4	Power supply		Electric	Electric
1.5	Driving type		Standing on	Standing on
1.6	Rated load	Q(kg)	1600	1600
1.7	Load center	C(mm)	600	600
1.8	Wheelbase	y(mm)	1700	1700
2.1	Truck weight(Include battery)	kg	5200	5450
2.2	Battery weight(±5%)	kg	750	750
3.1	Tyres type Front wheel/Rear wheel		PU	PU
3.2	Front load wheels(Diameter×width)	mm	φ140×127	φ140×127
3.3	Rear driving wheel(Diameter×width)	mm	φ380×165	φ380×165
3.4	Tyres quantity (Drive/Load wheel/univeral wheels)	pcs	1X/4/2	1X/4/2
4.1	Lifting height	mm	3000-6000	4500-9000
4.2	Fork rotation degree	°	180	180
4.3	Lifting height	See table	See table	See table
4.4	Overhead guard height	h5(mm)	2260	2260
4.5	Platform height for standing	(mm)	355	355
4.6	Min ground clearance	h8(mm)	45	45
4.7	Overall length (fork in side position)	l1(mm)	2945	2945
4.8	Overall width(with guide wheels)	b1(mm)	1550	1550
4.9	Fork specification	l/e/s(mm)	1070/125/50	1070/125/50
4.10	Rear chassis width	b2(mm)	1190	1190
4.11	Fork width	b5(mm)	425-750	425-750
4.12	Min turning radidus(go straight)	Wa(mm)	1980	1980
4.13	Min main aisle size	(mm)	3550	3550
4.14	Min aisle width(length×width) 1200×1000	(mm)	1600	1600
5.1	Driving speed loaded/unloaded	km/h	8/9	8/9
5.2	Lifting speed loaded/unloaded	mm/s	250/300	250/300
5.3	Lowering speed Loaded/unloaded	mm/s	300/300	300/300
5.4	Gradeability, Loaded/unloaded	%(tanθ )	4	4
5.6	Brake		Regenerative	Regenerative
5.7	Park		Disc brake	Disc brake
6.2	Driving motor (S2-60min)	kw	AC 6	AC 6
6.4	Lifting motor,(S3-15%)	kw	AC 12.5	AC 12.5
6.6	Steering motor	kw	DC 0.4	DC 0.4
6.7	Battery voltage and capacity	V/Ah	48/390	48/390
8.1	Camera and monitor		Fork camera/Left side camera	Fork camera/Left side camera

Mast informatrion
Mast informatrion
Double masts
Model		VDA116-30	VDA116-35	VDA116-40	VDA116-45	VDA116-50	VDA116-55	VDA116-60
Mast clesed height	h3(mm)
Mast extended height	h4(mm)
Lifting height	h1(mm)	3000	3500	4000	4500	5000	5500	6000
Full free lift triple masts
Model		VDA116S-45	VDA116S-50	VDA116S-55	VDA116S-60	VDA116S-65	VDA116S-70	VDA116S-75	VDA116S-80	VDA116S-85	VDA116S-90
Mast clesed height	h3(mm)	2784	2950	3117	3284	3450	3617	3784	3950	4117	4284
Mast extended height	h4(mm)	5450	5950	6450	6950	7450	7950	8450	8950	9450	9950
Free lifting height	h2(mm)	1834	2000	2167	2334	2500	2667	2834	3000	3167	3334
Lifting height	h1(mm)	4500	5000	5500	6000	6500	7000	7500	8000	8500	9000
